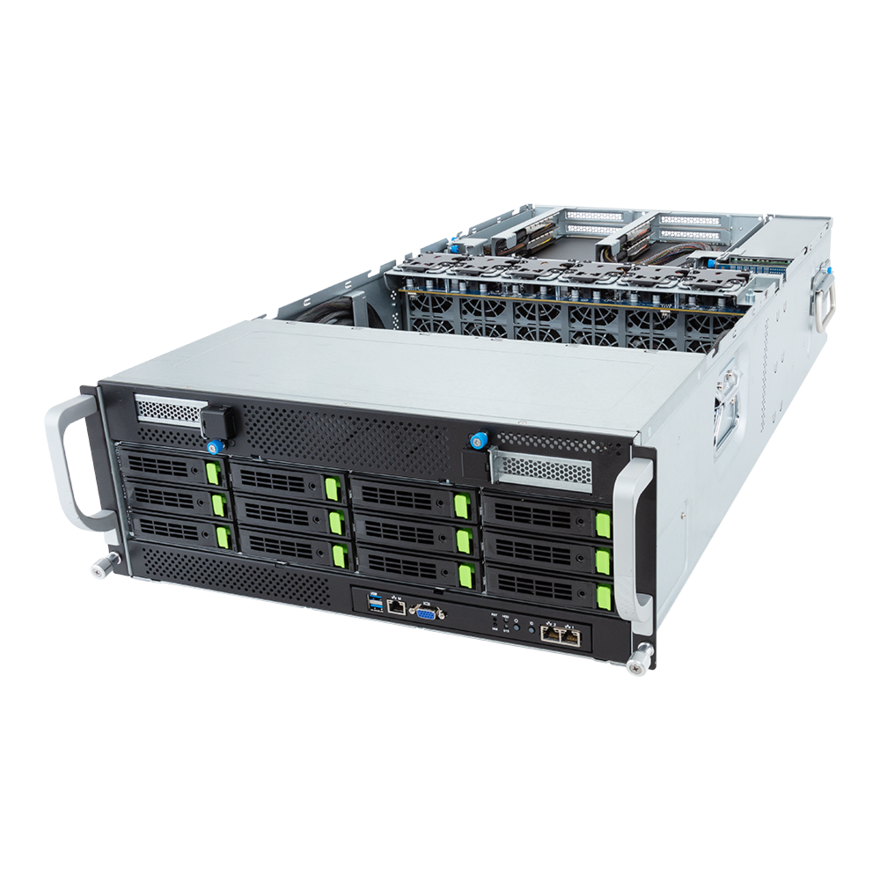

4U AI & HPC Server with Dual Intel® Xeon® CPUs and 8x PCIe Gen5 GPU Support
- Supports up to 8 x Dual slot Gen5 GPUs
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 32 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 1 x M.2 slot with PCIe Gen3 x1 interface
- 8 x FHFL PCIe Gen5 x16 slots for GPUs
- 4 x FHFL PCIe Gen5 x16 slots
- 2 x LP PCIe Gen5 x16 slots on the front side
- 3+1 3000W 80 PLUS Titanium redundant power supplies
High-performance GPU server tailored for AI, HPC, and visual computing. It supports dual 5th/4th Gen Intel® Xeon® Scalable processors and the Intel® Xeon® CPU Max Series, with up to 350W TDP per CPU. The system features 32 DDR5 DIMM slots across 8 channels, supporting up to 256GB 3DS RDIMM and speeds up to 5600 MT/s.
Designed for GPU-intensive workloads, it accommodates 8 dual-slot PCIe Gen5 GPUs via FHFL PCIe Gen5 x16 slots. Additional expansion includes 4 more FHFL and 2 LP PCIe Gen5 x16 slots. Storage is robust with 12 hot-swappable bays supporting Gen5 NVMe, SATA, and SAS-4 drives, plus an M.2 slot for additional flexibility.
Networking includes dual 10GbE LAN ports via Intel® X710-AT2 and a dedicated management LAN. The system is powered by 3+1 redundant 3000W 80 PLUS Titanium PSUs. Management is handled by the ASPEED® AST2600 controller with GIGABYTE Management Console.
It supports major OS platforms including Windows Server, RHEL, SLES, Ubuntu, VMware ESXi, and Citrix Hypervisor. With advanced cooling, TPM support, and a rugged design, it’s ideal for enterprise-grade AI and compute workloads.
