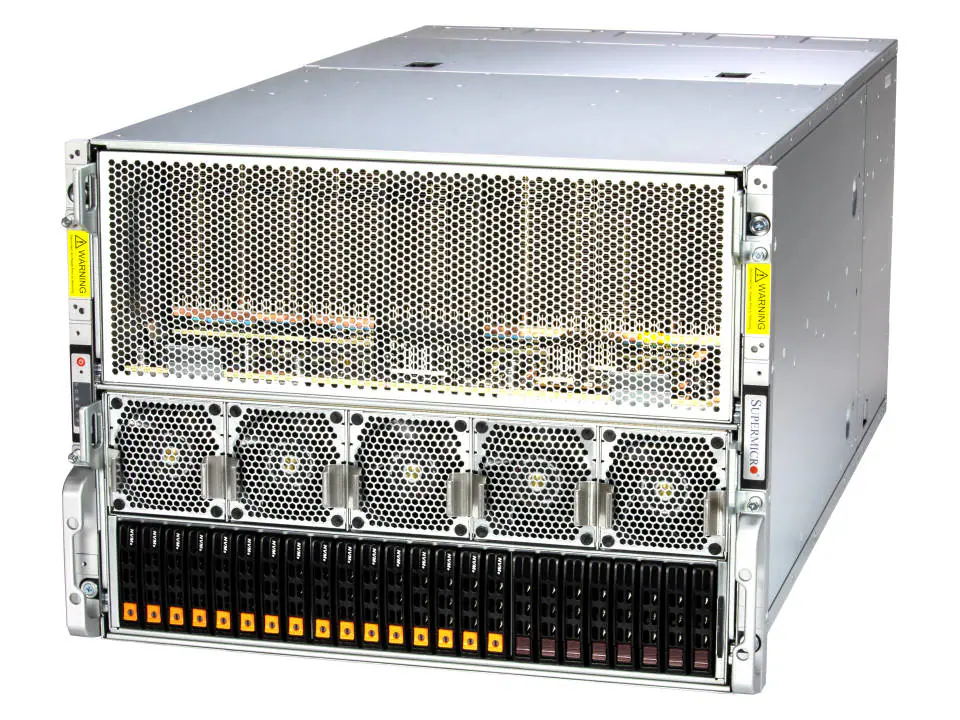

8U GPU A+ Server R8I-GP-782522

DP AMD 8U System with AMD Instinct™ MI300X 8-GPU

Key Applications

High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Climate and Weather Modeling

Key Features

- 8 NIC for GPU direct RDMA (1:1 GPU Ratio)
- High density 8U system with AMD Instinct MI300X 8-GPU
24 DIMM Slots; Up to 6TB DRAM 4800 ECC DDR5 LRDIMM;RDIMM
8 PCIe 5.0 x16 LP + up to 4 PCIe 5.0 X16 FHFL slots
Flexible networking options
- 2 Hot-swap 2.5" SATA drive bays
- 1 M.2 NVMe for boot drive only
- Up to 16 hot-swap 2.5" NVMe drive bays (12 default + 4 optional)
10 heavy duty fans with optimal fan speed control
6x 3000W redundant Titanium level power supplies

Configure & Buy Specifications

SuperServer GPU A+ Server R8I-GP-782522

Extreme AI & HPC Performance

The SuperServer GPU A+ Server R8I-GP-782522 is an 8U GPU-optimized platform designed for cutting-edge AI training, deep learning, and high-performance computing. Powered by dual 5th Gen Intel® Xeon® Scalable processors (LGA-4677), it supports up to 4TB DDR5-4800MHz ECC memory across 32 DIMM slots, delivering exceptional compute and memory bandwidth.

Massive GPU & I/O Scalability

Engineered for GPU density, the system accommodates up to 10 double-width NVIDIA HGX H100 8-GPU configurations or 10 PCIe GPUs. It includes 11 PCIe 5.0 x16 slots and 2 PCIe 5.0 x8 slots, enabling high-throughput networking and accelerator expansion. Storage options include 24x 2.5" hot-swap NVMe/SATA/SAS bays and 2x M.2 NVMe slots.

Advanced Cooling & Power

The chassis integrates high-efficiency cooling with redundant heavy-duty fans and airflow-optimized design. It features 4x 3000W Titanium-level (2+2) redundant power supplies to ensure stable operation under full GPU load.

Management & Security

Supports Supermicro IPMI, Redfish API, and SuperDoctor® 5 for remote management and diagnostics.
Includes TPM 2.0, secure boot, and hardware root of trust for enterprise-grade security.
Optional support for NVIDIA AI Enterprise and GPU virtualization stacks.

Target Applications

Ideal for large-scale AI model training, scientific simulations, and enterprise-grade inferencing, the GPU A+ Server R8I-GP-782522 is built for organizations pushing the boundaries of compute and AI innovation.

NTS AI Software Stacks

Purpose-Built for High-Performance AI Infrastructure

LaunchPad – Instant AI Productivity

Preloaded with TensorFlow, PyTorch, and RAPIDS in Conda environments, LaunchPad enables immediate AI development and experimentation—no setup required.

FlexBox – Scalable, Hybrid AI Deployment

FlexBox supports containerized AI workflows with OCI-compliant containers and NVIDIA Container Toolkit, ideal for hybrid and multi-cloud ML Ops.

ForgeKit – Full Control & Compliance

ForgeKit offers a minimal, secure AI stack for air-gapped and regulated environments, with only essential drivers and CUDA for maximum control and compliance.

Barebone

8U - AMD MI300X 8-GPU - 18x 2.5" NVMe/SAS/SATA Hot-swap - 3000W (3+3) Redundant

Processor

Memory

64GB PC5-38400 4800 MHz DDR5 [+$9,384.00]
96GB PC5-38400 4800 MHz DDR5 [+$16,748.88]
128GB PC5-38400 4800 MHz DDR5 [+$34,848.00]

M.2 DRIVE

480GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$145.56]
960GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$218.64]
1.92TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$372.21]
3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$687.69]
400GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$167.24]
800GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$251.28]
960GB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$299.00]
1.92TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$465.00]
3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$849.00]

HARD DRIVE

(Max Quantity: 18)

GPU

AMD AMD Instinct™ MI300X - 8x AMD Instinct™ MI300X Accelerators - 192GB HBM3 - OAM PCIe 5.0 x16 - Passive Cooling AMD Instinct MI300 Series

NETWORK ADAPTER

(Max Quantity: 8)

Power Cables

SERVER MANAGEMENT

(Included) Update Manager (SUM) (OOB Management Package)
Supermicro Server Manager (SSM) (DataCenter Management Package) [+$131.52]

OPERATING SYSTEM

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

$0.00
