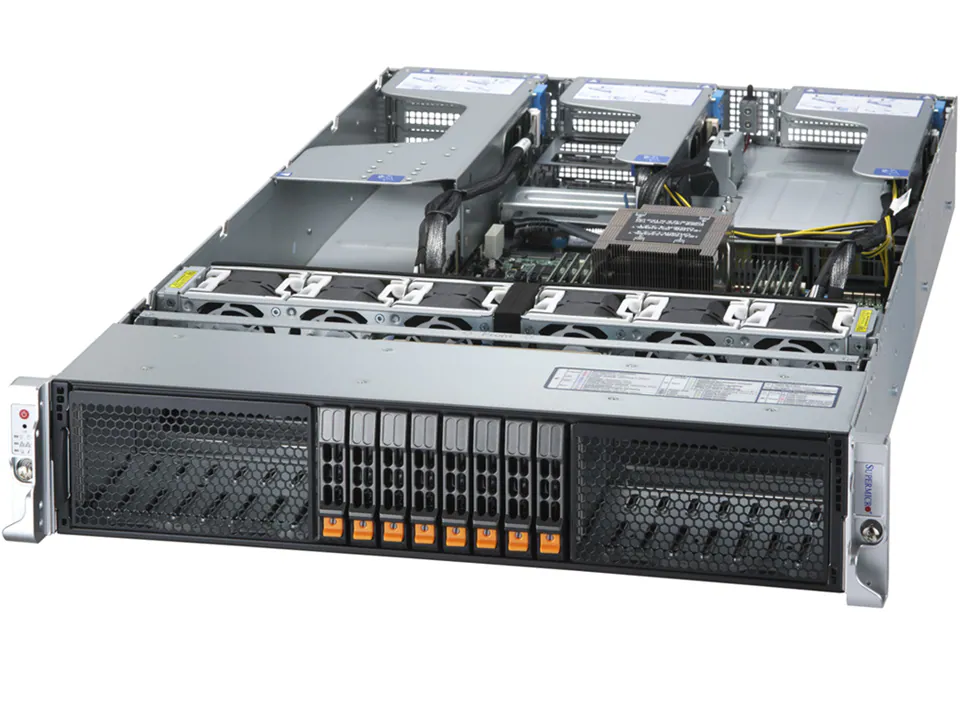

| Form Factor | 2U Rackmount
Enclosure: 437 x 88.9 x 806.2mm (17.2" x 3.5" x 31.74")
Package: 672 x 253 x 1100mm (26.46" x 9.96" x 43.31") |
Processor
| Single Socket sTR5 (LGA-4844)
AMD Ryzen™ Threadripper PRO 9000WX/7000WX series
Up to 96C/192T; Up to 384MB Cache |
| GPU | Max GPU Count: Up to 4 double-width or 8 single-width GPUs
Supported GPU:
NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX A6000,
RTX 6000 Ada Generation, L40S, L4
AMD PCIe: Instinct™ MI210
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: PCIe |
System Memory
| Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 8 bays
8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2: 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280) |
| Expansion Slots | PCI-Express (PCIe) Configuration: Default
4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A
8 PCIe 5.0 x8 (in x16) FHFL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
M.2: 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280) |
On-Board Dev
| Chipset: System on Chip
Network Connectivity: Via AIOM
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports(rear)
Video: 1 VGA port
|
System Cooling
| Fans: Up to 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud
|
Power Supply
| 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 256MB SPI Flash
BIOS Features: UEFI 2.8
SMBIOS 3.5 or later
UEFI 2.9
Plug and Play (PnP)
USB Keyboard support
ACPI 6.5
SMBIOS 3.6 or later
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU
thermal trip support
|
Dimensions and Weight
| Weight: Gross Weight: 75 lbs (34 kg)
Net Weight: 45 lbs (20.5 kg)
Available Color: Silver
|
Operating Environment
| RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
