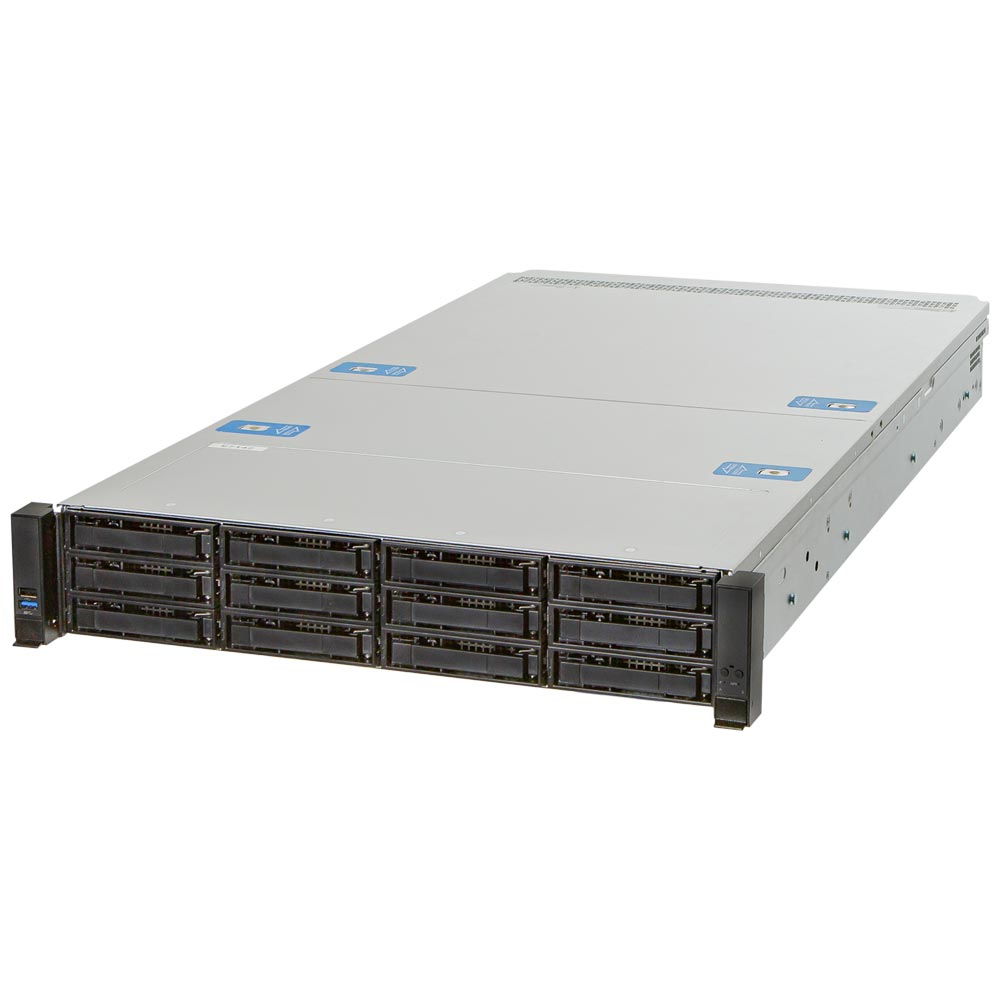

| System | Form Factor 2U Rackmount
Chassis Model TX77
Dimension (D x W x H) 30.31" x 17.24" x 3.43" (770 x 438 x 87mm)
Motherboard Name R520G6SB
Motherboard Notification # The motherboard not sold separately
Gross Weight 33.35 kg (73.52 lbs)
Net weight 25.67 kg (56.59 lbs)
|
Front Panel
| Buttons (1) PWR w/ LED / (1) ID w/ LED / (1) RST / (1) NMI
LEDs (1) PWR / (1) ID / (1) Drive / (1) System Event
I/O Ports (1) USB 2.0 port / (1) USB 3.0 port |
| External Drive Bay | Q'ty / Type (12) 3.5" Hot-swap HDDs
Front Drive Bay Interface (12) SATA 6Gb/s / SAS 24Gb/s
Front Drive Backplane Support SAS 24Gb/s /SATA 6Gb/s
Notification The SAS/SATA HDD backplane is connected to onboard MCIO connection by default. Please contact MiTAC technical support if a discrete SAS HBA/RAID adapter is required. |
System Cooling Configuration
| Fan (6) 6056 fans |
| Power Supply | Type RPSU
Input Range AC 100-127V/12A / AC 200-240V/ 10A
Frequency 50/60 Hz
Output Watts 2,000 Watts
Efficiency 80 plus Titanium
Redundancy 1+1
Notification We have additional PSU options available, For further details, please contact local distributors. |
| Processor | Q'ty / Socket Type (2) LGA4710
Supported CPU Series Xeon® 6 Processor
Thermal Design Power Wattage Max up to 350W* (TDP) |
Memory
| Supported DIMM Qty (16)+(16) DIMM slots
DIMM Type / Speed RDIMM / RDIMM-3DS DDR5 6400 MT/s (1DPC) / 5200 MT/s (2DPC) / MRDIMM 8000 (1DPC) -P Core only
Capacity Up to 8192GB RDIMM *Follow latest Intel DDR5 Memory POR
Memory channel 8-Channel DDR5 RDIMM / MRDIMM
Memory voltage 1.1V
|
Expansion Slots
| PCIe (1) PCIe Gen 5 x16 slot (w/ x8 link in HH/HL) / (4) PCIe Gen 5 x16 slots (FH/HL)
Others (2) PCIe Gen 5 x16 OCP 3.0 mezzanine slots
|
LAN
| Q'ty / Port (1) GbE dedicated for IPMI
PHY Realtek RTL8211F
|
Storage NVMe
| Connector (M.2) (2) 22110/2280 (by PCIe Gen 4 interface)
|
Graphic
| Connector type Mini Display Port
Resolution Up to 1920x1200
Chipset Aspeed AST2600
|
I/O Ports
| USB (1) USB3.0 port / (1) USB UART (on DCSCM)
DisplayPort (1) Mini Display Port
RJ-45 (1) GbE port dedicated for IPMI
|
TPM (Optional)
| TPM Support TM-TPM2-MS-I-9672
Interface SPI
|
System Monitoring
| Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
|
Server Management
| Onboard Chipset Onboard Aspeed AST2600 (on DCSCM module)
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
|
| BIOS | Brand / ROM size AMI / 64MB
Feature PXE boot support / Console Redirection / SMBIOS 3.6 / ACPI 6.5 / ACPI sleeping states S0, S5 / UEFI Secure Boot / IPMI Boot / Redfish support / PFR Secure Update / HTTP Boot |
| Operating Environment | Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 85% (Operating humidity) / 90% (Non-operating Humidity) |
| Regulation | FCC (SDoC) Class A
CE (DoC) Class A
CB/LVD Yes
RCM Yes
VCCI Yes
BSMI Yes
NRTL Yes
IC (SDoC) Yes |
| Operating System | OS supported list Please refer to our AVL support lists. |
| RoHS | RoHS 6/6 Compliant Yes
RoHS 2.0 Yes |
