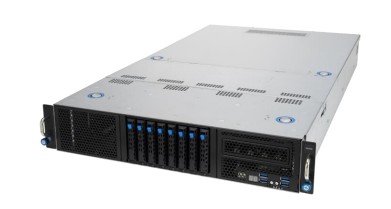

ASUS 2U ESC4000-E10S

2U GPU server powered by dual-socket 3rd Gen Intel Xeon Scalable processors that supports up to 16 DIMM, four dual-slot GPU, 2 M.2, four NVMe (by SKU), total eleven PCIe 4.0 slots, one OCP 3.0 (by SKU) and ASUS ASMB10-iKVM.
  • Processor: Dual LGA 4189, 3rd Gen Intel Xeon (up to 235W)
  • Memory: 16 DIMMs, DDR4 3200/2933, up to 4TB, Optane supported
  • Storage: 8x 2.5" bays (SATA/SAS/NVMe), 1x M.2 (Gen4 x4)
  • Networking: 2x GbE LAN, 1x Mgmt port (BMC AST2600)

Streaming Media | Cloud Computing | Virtualized & VDI Application | Enterprise & HPC Application

Configure & Buy Features Specifications

3rd Gen Intel Xeon Scalable Processors





The latest 3rd Gen Intel® Xeon® Scalable Processors feature core counts from 8 to 40 cores and an array of frequency and power supports, and deliver up to 40% better performance compared to the previous generations. With built-in security features, this new platform delivers outstanding performance in security including encryption, authentication and data integrity across the breadth of standards that are prevalent in networking, enterprise and the cloud.





 Key Platform Highlights



  • GPU-optimized design allows four dual-slot GPUs for AI workloads
  • Up to four NVMe and eight SATA/SAS drives on front panel to enable extensive storage and high-throughput performance
  • Up to eleven PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
  • Flexible air- solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
  • Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
  • High power efficiency with redundant 2200W or 1600W 80 Plus® Platinum power supplies
  • Two hot-plug, hot-swap fans design for fully redundancy protection and thermal efficiency









GPU and FPGA support



ESC4000-E10S features a powerful GPU architecture that supports up to four double- slot or eight single-slot GPUs in a 2U chassis, including NVIDIA® A100 and AMD Instinct™ MI100 accelerator to meet the demands of AI and HPC, and to securely run workloads in virtualization environment. It is also a Xilinx Alveo-qualified server to provide optimized acceleration for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.







Scalable storage design



To effectively manage the storage demands of growing amounts of data, ESC4000-E10S has a dense chassis design that accommodates up to eight 2.5-inch drives, including up to four NVMe SSDs support and one onboard 2280-length M.2 SSD to allow faster data transfer speeds for OS installation.

NVIDIA-qualified server



ESC4000-E10S is a NVIDIA-qualified server system that deliver unprecedented performance at a fraction of the cost, space, and power requirements of traditional CPU-based solutions, from production rendering to scalable visualization systems or HPC, AI, ML, big data analytics, and at the edge deployment options.

OCP 3.0



ASUS ESC4000-E10S servers feature the latest OCP NIC 3.0 card with PCIe 4.0 bandwidth for a faster time-to-market network solution, delivering the speeds of up to 200 Gbps for high bandwidth and low latency. It also features a tool-less, hot-swappable design to simplify installation and serviceability.

Enhanced security



ASUS ESC4000-E10S server integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, ESC4000-E10S server also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

ASUS Control Center



ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center (ACC)



centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.



Processor / System Bus2 x Socket P+ (LGA 4189)
3rd Gen Intel® Xeon® Scalable Processors Family(235W)
Memory
Total Slots :
16 (8-channel per CPU, 8 DIMM per CPU)
Capacity :
Maximum up to 2048GB RDIMM
Memory Type :
DDR4 3200 RDIMM
DDR4 3200 LRDIMM
DDR4 3200 LR-DIMM 3DS
Memory Size :
128GB, 64GB, 32GB, 16GB
* Refer to support page for more information
Expansion SlotsRear
- 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or
  8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards*
- 2 x PCIe x16 slots (Gen4 x16 link, LP,HL)
Front
- SKU-1:
1 x PCIe x8 slot (Gen4 x8 link, LP,HL)
- SKU-2:
1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
1 x OCP3.0 slot (Gen4 x16 link) by switching cables
- SKU-3:
1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
2 x M.2 sockets (Gen4 x4 link, up to 22110 module) by switching cables
Storage
Storage Controller :
Intel® PCH C621A
Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
ASUS PIKE II 3108-8i 8-port SAS 12G RAID card
Networking2 x 1GbE LAN ports (RJ45, Intel I350-AM2)
  FrontI/O Ports 4 x USB 3.2 Gen1 ports
  Rear I/O Ports2 x USB 3.2 Gen1 ports
1 x VGA port
2 x 1GbE LAN ports (RJ45)
1 x Management port (RJ45)
  Switch/LED
Front :
1 x Power Button/LED
1 x Location Button/LED
2 x LAN LED
1 x Message LED
1 x HDD Access LED
Rear :
1 x Power Button/LED
1 x Location LED
1 x Message LED
1 x HDD Access LED
 Management Solution
ASUS Control Center Enterprise (in-band)
ASMB10-iKVM (out-of-band/BMC AST2600)
Regulatory Compliance
BSMI, CB, CE, RCM, FCC(Class A)
Dimensions
800 x 440 x 88.9mm
Form Factor
2U
Net Weight
34 Kg Gross Weight: 44 Kg.
Power Supply
1+1 Redundant 1600W 80 PLUS Platinum Power Supply C-14 power inlet
Rating: 100-127Vac/200-240Vac,12.9A/9.5A,50-60Hz
1+1 Redundant 2200W 80 PLUS TITANIUM Power Supply C-20 power inlet
Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz
Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
OPERATING SYSTEM
