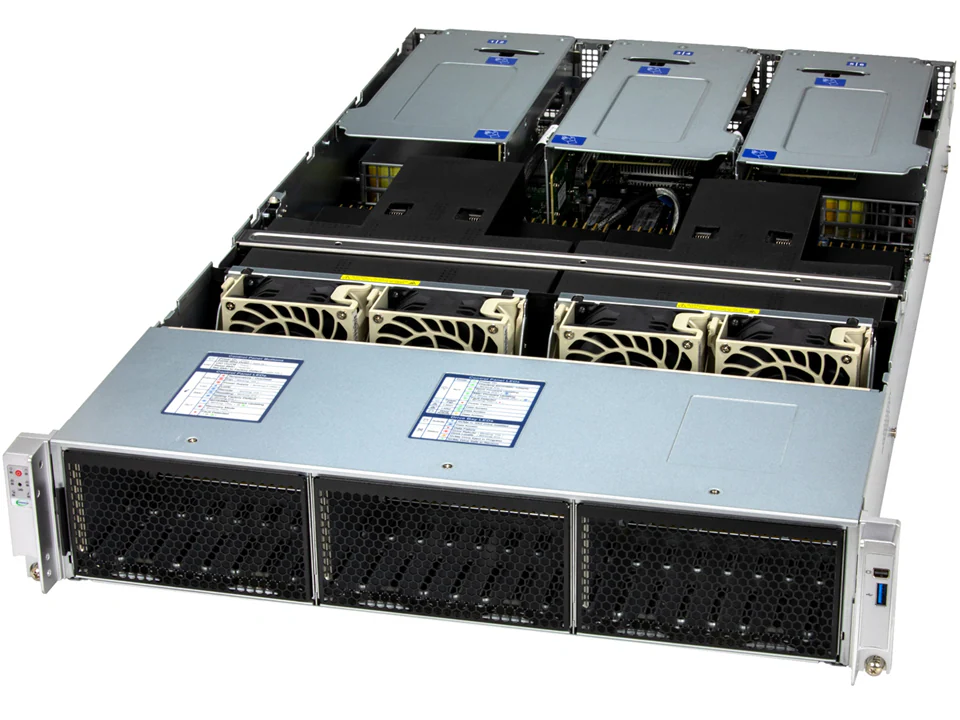

| Form Factor | 2U Rackmount
Enclosure: 438 x 88 x 780mm (17.25" x 3.47" x 30.7")
Package: 597 x 239 x 1097mm (23.5" x 9.4" x 43.2") |
Processor
| Dual Socket E2 (LGA-4710)
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
P-cores: Up to 86C/172T; Up to 336MB Cache per CPU
E-cores: Up to 144C/144T; Up to 108MB Cache per CPU |
| GPU | Max GPU Count: Up to 2 double-width or 4 single-width GPUs
Supported GPU: NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition |
System Memory
| Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 24 bays
24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID) |
| Expansion Slots | Default
4 PCIe 5.0 x16 (in x16) FHFL slots
1 PCIe 5.0 x8 (in x16) FHFL slot
Option A
2 PCIe 5.0 x16 (in x16) FHFL slots
Option B
6 PCIe 5.0 x16 (in x16) FHFL slots |
On-Board Devices
| NVMe: NVMe; RAID 0/1/5/10 support(VROC HW key required)
Chipset: System on Chip
Network Connectivity: Via AIOM
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 1 USB 2.0 Type-A port(Rear)
1 USB 3.2 Gen1 Type-A port(Rear)
Video: 1 VGA port(Rear)
TPM: 1 TPM header
|
System Cooling
| Fans: Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud
|
Power Supply
| 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 64MB SPI Flash ROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro ThinAgent Service (TAS); SuperServer Automation Assistant (SAA) New!
|
Dimensions and Weight
| Weight: Gross Weight: 83.78 lbs (38 kg)
Net Weight: 61.73 lbs (28 kg)
Available Color: Silver
|
Operating Environment
| RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-30°F to 140°F)
Operating Relative Humidity: 8% to 80% (Non-Condensing)
Non-operating Relative Humidity: 8% to 90% (Non-Condensing)
|
Chassis
| CSE-DC201TS-R000NP
|
