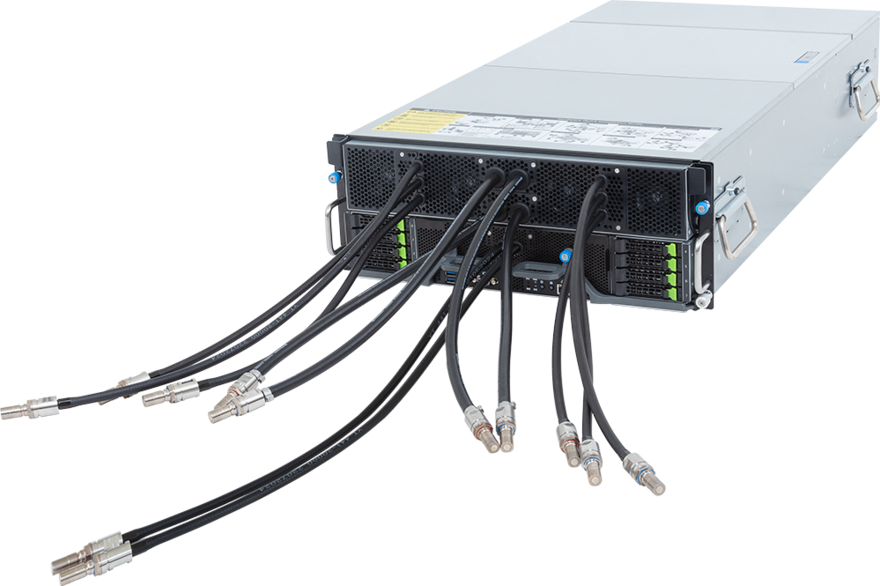

EPYC B200X G4L3-ZD1-LAX5

HPC AI Server - AMD EPYC 9005/9004 - 4U DP NVIDIA HGX B200 DLC
  • Liquid-cooled NVIDIA HGX™ B200
  • CPU+GPU direct liquid cooling solution with leak detection
  • 900GB/s GPU-to-GPU bandwidth with NVIDIA NVLink™ and NVSwitch™
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • Compatible with NVIDIA® BlueField®-3 DPUs and NVIDIA ConnectX®-7 NICs
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
  • 8 x 2.5" Gen5 NVMe hot-swap bays
  • 4 x FHHL dual-slot PCIe Gen5 x16 slots
  • 8 x FHHL single-slot PCIe Gen5 x16 slots
  • 4+4 3000W 80 PLUS Titanium redundant power supplies

Configure & Buy Features

GIGABYTE G4L3‑ZD1‑LAX5 GPU Server



The G4L3‑ZD1‑LAX5 is a 4U high-performance AI/HPC server featuring liquid-cooled NVIDIA HGX™ B200 with 8 SXM GPUs and dual AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors..

High Performance



Servers and motherboards by GIGABYTE are tested to ensure peak performance for demanding workloads while supporting the latest GPU and CXL technology.

Compute Density



With 192 CPU cores per socket, GIGABYTE's 4-node servers support up to 1,536 CPU cores, allowing a far greater number of concurrent tasks to be done.

Fast & Stable Connectivity



Keeping pace with the challenges for next gen technology, well designed GIGABYTE boards provide users the signal integrity for fast PCIe 5.0 speeds.

Collaboration



AMD and GIGABYTE have maintained a healthy relationship that values shared knowledge and open communication in order to launch products in tandem.

Optimal Price



Our broad portfolio of products tailored to applications allow customers to only select server features they require while doing so at a lower TCO.

Redundant Titanium PSUs



4+4 × 3000 W 80 PLUS Titanium power supplies for full redundancy.

G4L3‑ZD1‑LAX5 GPU Server

High Performance

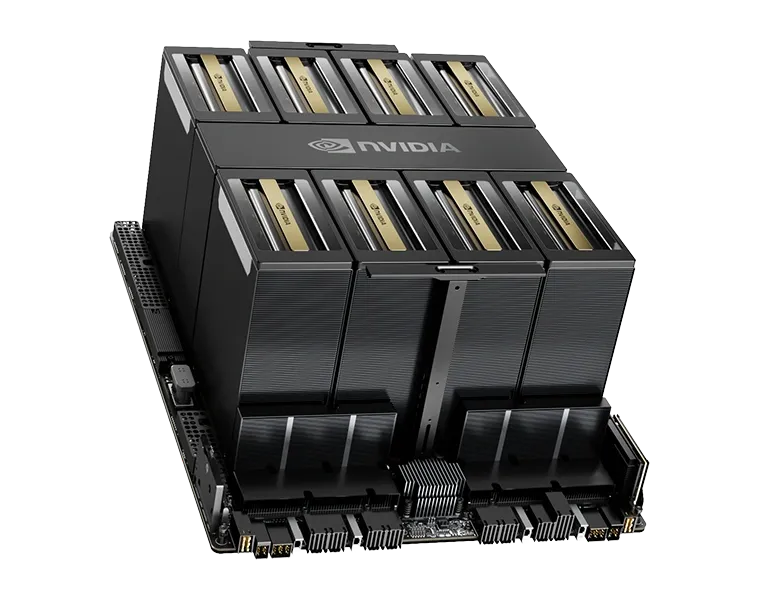

Supports NVIDIA HGX™ B200



The NVIDIA HGX™ B200 propels the data center into a new era of accelerating computing and generative AI, integrating NVIDIA Blackwell Tensor Core GPUs with a high-speed interconnect to accelerate AI performance at scale. Configurations of eight GPUs deliver unparalleled generative AI acceleration alongside a remarkable 1.4 TB of GPU memory and 64 TB/s of memory bandwidth for 15X faster real-time trillion-parameter-model inference, 12X lower cost, and 12X less energy. This extraordinary combination positions HGX B200 as a premier accelerated x86 scale-up platform designed for the most demanding generative AI, data analytics, and HPC workloads. HGX B200 supports advanced networking options—at speeds up to 400 Gb/s—delivering the highest AI performance with NVIDIA Quantum-2 InfiniBand and the Spectrum™-X Ethernet platform. HGX B200 with NVIDIA® BlueField®-3 DPUs enable cloud networking, composable storage, zero-trust security, and GPU compute elasticity in hyperscale AI clouds .

Cooling & Service Features

Leak-Detect Liquid Loop

Integrated cooling loop servicing CPU, GPU, and NVSwitch.

Front-access NVMe Trays

Hot-swappable NVMe bays for live data center maintenance.

Dedicated Cooling Zones

Separated fan zones for CPU, GPU, and PCIe cards ensure targeted airflow.





Value-added Management

GIGABYTE Management Console

  • For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface.



  • Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
  • Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
  • Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters

GIGABYTE Server Management (GSM)



GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from the GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster.
  • GSM CLI: A command-line interface for monitoring and managing remotely.
  • GSM Agent: Installed on each GIGABYTE server node to retrieve system and device information through the OS, integrating with GSM Server or CLI.
  • GSM Mobile: A mobile app for Android and iOS that provides admins with real-time system information.
  • GSM Plugin: An API that allows users to use VMware vCenter for real-time monitoring and management of server clusters.





OPERATING SYSTEM
NTS AI Stack See what's inside each NTS AI package
