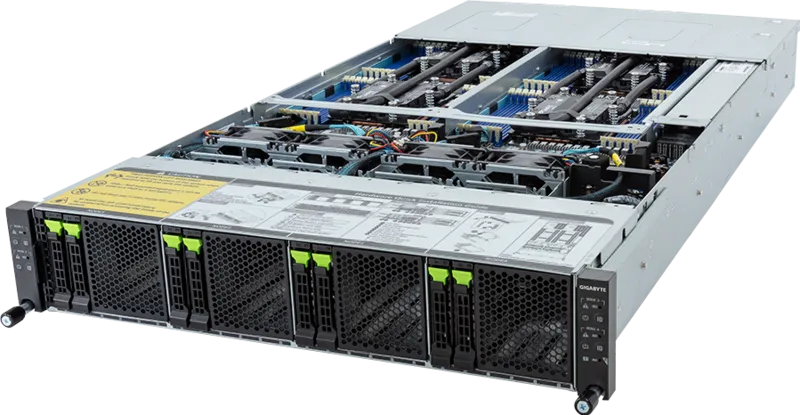

GIGABYTE 2U H273-Z81-LAW1

High Density Server - AMD EPYC 9005/9004 - 2U 4-Node DP 8-Bay Gen4 NVMe/SATA/SAS 3000W DLC

Be the first to review this product

Direct liquid cooling solution
2U 4-node rear access server system
Dual AMD EPYC™ 9005/9004 Series Processors per node
12-Channel DDR5 RDIMM, 24 x DIMMs per node
Dual ROM Architecture
8 x 1Gb/s LAN ports via Intel^® I350-AM2
8 x 2.5" Gen4 NVMe/SATA/SAS hot-swap bays
4 x M.2 slots with PCIe Gen4 x4 interface (optional)
4 x LP PCIe Gen5 x16 slots
4 x OCP NIC 3.0 PCIe Gen5 x16 slots
Dual 3000W 80 PLUS Titanium redundant power supply

Configure & Buy Features Specifications

GIGABYTE H273-Z81-LAW1 High Density Server

New AMD EPYC™ Family of Processors - Same Great SP5 Platform

The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.

Key Platform Highlights

3nm architecture-Increased transistor density alongside a reduction in power consumption
Up to 192 CPU cores-Dedicated “Zen 5” & “Zen 5c” cores increase compute density
Up to 512MB L3 cache-An L3 cache increase helps to reduce latency in data-intensive operations
12 channels-Memory capacity up to 9TB in a 2 DIMM per channel configuration
Up to 160 PCIe lanes-Dual socket configuration adds a significant amount of I/O connectivity
CXL 2.0 support-Disaggregated compute architecture possible via Compute Express Link

High Performance

Servers and motherboards by GIGABYTE are tested to ensure peak performance for demanding workloads while supporting the latest GPU and CXL technology.

Compute Density

With 192 CPU cores per socket, GIGABYTE's 4-node servers support up to 1,536 CPU cores, allowing a far greater number of concurrent tasks to be done.

Fast & Stable Connectivity

Keeping pace with the challenges for next gen technology, well designed GIGABYTE boards provide users the signal integrity for fast PCIe 5.0 speeds.

Collaboration

AMD and GIGABYTE have maintained a healthy relationship that values shared knowledge and open communication in order to launch products in tandem.

Optimal Price

Our broad portfolio of products tailored to applications allow customers to only select server features they require while doing so at a lower TCO.

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Power Efficiency

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

GIGABYTE Liquid Cooling Servers

Cool Performance

Servers will run incredibly stable and have high-performance from liquid cooled components that operate well below CPU TDP.

Power Saving

A liquid cooled server with less fans and running at lower speeds can achieve the same performance as an air-cooled server while consuming less power.

Noise Reduction

Servers require a lot of high-speed, high noise fans. GIGABYTE has found a way to reduce the noise by reducing the number of fans while using a liquid cooling solution.

Proven Track Record

The direct liquid cooling system supplier has 20 years of experience in cooling solutions for desktops PCs & data centers. GIGABYTE has 20+ years of experience as well.

Reliability

Liquid cooling solutions can be monitored with little need for maintenance. GIGABYTE and liquid cooling suppliers have warranties to cover components.

Ease of Use

GIGABYTE servers paired with a liquid cooling kit can be mounted in a rack or connected to a building’s water system. And offers quick/easy/dry disconnects.

Value-added Management

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface.

Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface

Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions

Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from the GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster.
GSM CLI: A command-line interface for monitoring and managing remotely.
GSM Agent: Installed on each GIGABYTE server node to retrieve system and device information through the OS, integrating with GSM Server or CLI.
GSM Mobile: A mobile app for Android and iOS that provides admins with real-time system information.
GSM Plugin: An API that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

Dimensions	2U 4-Node - Rear access (W440 x H87.5 x D877 mm)
Motherboard	MZ83-HD0
CPU	AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Dual processor per node, cTDP up to 400W
Socket	8 x LGA 6096 (Socket SP5)
Chipset	System on Chip
Memory	12-Channel DDR5 RDIMM, 96 x DIMMs [EPYC 9005] Up to 6400 MT/s [EPYC 9004] Up to 4800 MT/s
LAN	8 x 1Gb/s LAN (4 x Intel I350-AM2), Support NCSI 4 x 10/100/1000 Mbps Management LAN
Video	Integrated in ASPEED AST2600 x 4- 4 x Mini-DP
Storage	Front hot-swap: 8 x 2.5" Gen4 NVMe/SATA/SAS Optional internal M.2: 4 x M.2 (2280/22110), PCIe Gen4 x4 SAS card is required to support SAS drives
RAID	Require RAID add-in cards
PCIe ExpansionSlots	4 x LP PCIe Gen5 x16 4 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI
I/O Ports	Front: 1 x CMC status LED, 1 x CMC reset button Rear: 8 x USB 3.2 Gen1, 4 x Mini-DP, 8 x RJ45, 4 x MLAN
Backplane Board	PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM	1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
Power Supply	Dual 3000W 80 PLUS Titanium redundant power supply AC Input: 100-240V
System Management	ASPEED AST2600 Baseboard Management Controller ASPEED AST2520 Chassis Management Controller GIGABYTE Management Console web interface
System Fans	4 x 80x80x38mm (18,300rpm)
Operating Properties	Operating: 10°C to 35°C, 8% to 80% (non-condensing) Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
