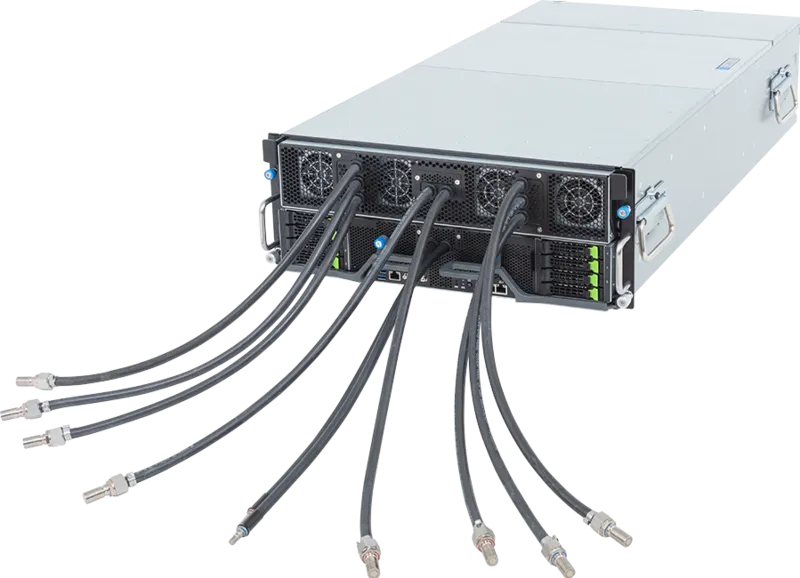

GIGABYTE 4U G4L3-ZX1-LAT4

HPC/AI Server – Dual AMD EPYC 9005/9004 Processors | 4U Chassis | AMD Instinct MI355X Accelerators | Direct Liquid Cooling (DLC)

Be the first to review this product

Liquid-cooled 8 x AMD Instinct™ MI355X OAM GPUs
CPU+GPU direct liquid cooling solution with leak detection
Dual AMD EPYC™ 9005/9004 Series Processors
12-Channel DDR5 RDIMM, 24 x DIMMs
Dual ROM Architecture
2 x 10Gb/s LAN ports via Intel^® X710-AT2
2 x M.2 slots with PCIe Gen3 x4 and x1 interface
8 x 2.5" Gen5 NVMe hot-swap bays
4 x FHHL Dual-slot PCIe Gen5 x16 slots
8 x FHHL Single-slot PCIe Gen5 x16 slots
4+4 5200W 80 PLUS Titanium redundant power supplies

Configure & Buy Features Specifications

GIGABYTE G4L3-ZX1-LAT GPU Server

New AMD EPYC™ Family of Processors - Same Great SP5 Platform

The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.

Key Platform Highlights

3nm architecture-Increased transistor density alongside a reduction in power consumption
Up to 192 CPU cores-Dedicated “Zen 5” & “Zen 5c” cores increase compute density
Up to 512MB L3 cache-An L3 cache increase helps to reduce latency in data-intensive operations
12 channels- Memory capacity up to 9TB in a 2 DIMM per channel configuration
Up to 160 PCIe lanes -Dual socket configuration adds a significant amount of I/O connectivity
CXL 2.0 support-Disaggregated compute architecture possible via Compute Express Link

High Performance

Servers and motherboards by GIGABYTE are tested to ensure peak performance for demanding workloads while supporting the latest GPU and CXL technology.

Compute Density

With 192 CPU cores per socket, GIGABYTE's 4-node servers support up to 1,536 CPU cores, allowing a far greater number of concurrent tasks to be done.

Fast & Stable Connectivity

Keeping pace with the challenges for next gen technology, well designed GIGABYTE boards provide users the signal integrity for fast PCIe 5.0 speeds.

Collaboration

AMD and GIGABYTE have maintained a healthy relationship that values shared knowledge and open communication in order to launch products in tandem.

Optimal Price

Our broad portfolio of products tailored to applications allow customers to only select server features they require while doing so at a lower TCO.

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

High Performance

Supports AMD Instinct MI355X GPUs

Built on the cutting-edge 4th Gen AMD CDNA™ architecture, AMD Instinct™ MI355X Platform features eight GPUs on a Universal Base Board (UBB) form factor. It features powerful and energyefficient cores with excellent performance per watt to drive the next era of AI and HPC innovation.

With exceptional efficiency and performance, the platform excels at high-speed inference, training massive AI models, and tackling the most complex computational challenges—from scientific simulations to large-scale data processing and advanced modeling.

GIGABYTE Liquid Cooling Servers

Cool Performance

Servers will run incredibly stable and have high-performance from liquid cooled components that operate well below CPU TDP.

Power Saving

A liquid cooled server with less fans and running at lower speeds can achieve the same performance as an air-cooled server while consuming less power.

Noise Reduction

Servers require a lot of high-speed, high noise fans. GIGABYTE has found a way to reduce the noise by reducing the number of fans while using a liquid cooling solution.

Proven Track Record

The direct liquid cooling system supplier has 20 years of experience in cooling solutions for desktops PCs & data centers. GIGABYTE has 20+ years of experience as well.

Reliability

Liquid cooling solutions can be monitored with little need for maintenance. GIGABYTE and liquid cooling suppliers have warranties to cover components.

Ease of Use

GIGABYTE servers paired with a liquid cooling kit can be mounted in a rack or connected to a building’s water system. And offers quick/easy/dry disconnects.

Value-added Management

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface.

Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface

Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions

Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from the GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster.
GSM CLI: A command-line interface for monitoring and managing remotely.
GSM Agent: Installed on each GIGABYTE server node to retrieve system and device information through the OS, integrating with GSM Server or CLI.
GSM Mobile: A mobile app for Android and iOS that provides admins with real-time system information.
GSM Plugin: An API that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

Dimensions	4U (W447 x H175.5 x D901 mm)
Motherboard	MZB3-PE0
CPU	AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Dual processor, cTDP up to 500W
Socket	2 x LGA 6096 (Socket SP5)
Chipset	System on Chip
Memory	12-Channel DDR5 RDIMM, 24 x DIMMs [EPYC 9005] Up to 6400 MT/s [EPYC 9004] Up to 4800 MT/s
LAN	Front: 2 x 10Gb/s LAN (1 x Intel X710-AT2), Support NCSI 1 x 10/100/1000 Mbps Management LAN Rear: 1 x 10/100/1000 Mbps Management LAN
Video	Integrated in ASPEED AST2600 - 1 x VGA port
Storage	Front hot-swap: 8 x 2.5" Gen5 NVMe Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4 1 x M.2 (2280/22110), PCIe Gen3 x1
Modular GPU	Liquid-cooled 8 x AMD Instinct™ MI355X OAM GPUs
PCIe Expansion Slots	4 x FHHL PCIe Gen5 x16, Dual-slot 8 x FHHL PCIe Gen5 x16, Single-slot
I/O Ports	Front: 2 x USB 3.2 Gen1, 1 x VGA, 2 x RJ45, 1 x MLAN (default) Rear: 1 x MLAN
Backplane Board	PCIe Gen5 x4
TPM	1 x TPM header (SPI), Optional TPM2.0 kit: CTM012
Power Supply	4+4 5200W 80 PLUS Titanium redundant power supplies
System Management	ASPEED AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
Operating Properties	Operating: 10°C to 35°C, 8% to 80% (non-condensing) Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
Packaging Content	1 x G4L3-ZX1-LAT4 1 x L-shape Rail kit
