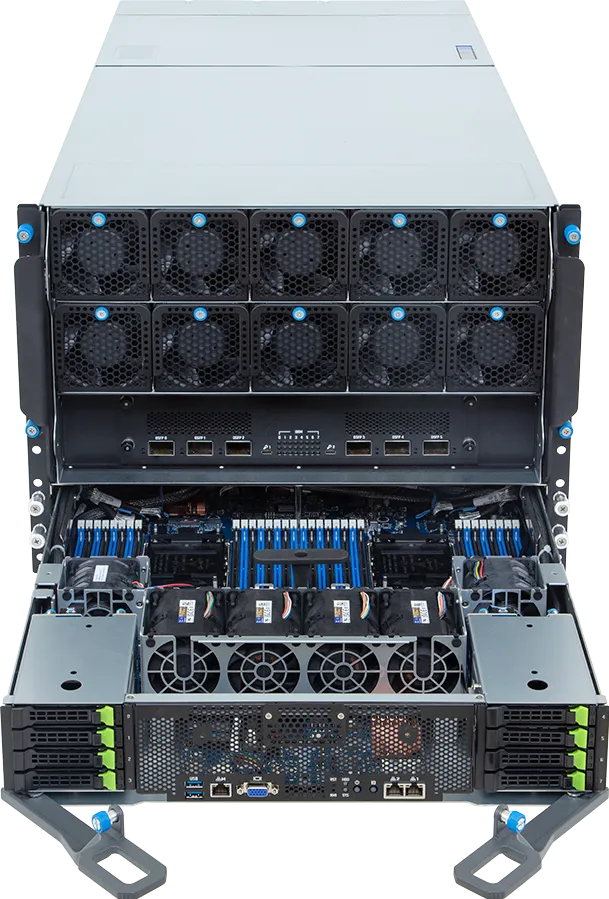

Picture of Gigabyte G893-SG1-AAX1

NTS AI Software Stacks

Purpose-Built for Every Workflow – From Instant Productivity to Full Customization

Gigabyte G893-SG1-AAX1

HPC/AI Server powered by 5th/4th Gen Intel Xeon Scalable processors and Intel Gaudi 3 accelerators, in an 8U dual-processor
  • Intel Gaudi 3 AI Accelerators
  • Dual 5th/4th Gen Intel Xeon Scalable Processors
  • Dual Intel  Xeon CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel X710-AT2
  • 2 x M.2 slots with PCIe Gen3 x2 and x1 interface
  • 8 x 2.5" Gen5 NVMe/SATA hot-swap bays
  • 4 x FHHL dual-slot PCIe Gen5 x16 slots
  • 8 x FHHL single-slot PCIe Gen5 x16 slots
  • 5+5 3000W 80 PLUS Titanium redundant power supplies

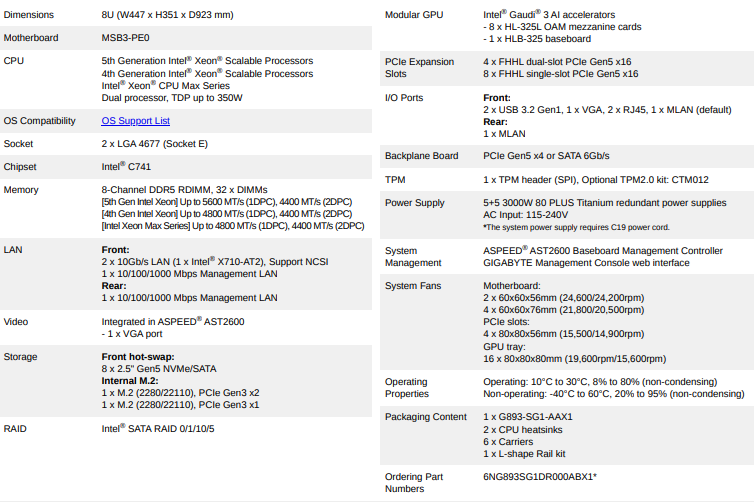

Configure & Buy Features Specifications



GIGABYTE G893-SG1-AAX1



                  Accelerating Artificial Intelligence and Leading Efficiency



Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.



 Redefine Performance with 4th/5th Gen Intel® Xeon® Scalable Processors and Intel® Xeon® CPU Max Series





  • Accelerators built-in* -Increase ROI while improving efficiency and performance
  • Up to 64 cores More tasks can be done simultaneously and faster with dedicated cores
  • DDR5 support Increased memory frequency and throughput with DDR5 RDIMM support
  • 64GB HBM**-High bandwidth in-package memory massively speeds up data-intensive workloads
  • PCIe 5.0 lanes Increased I/O throughput achieving 128GB/s bandwidth with support for the latest drives and accelerators
  • CXL 1.1 support Improve performance via memory coherency and direct accelerator memory access







GIGABYTE for the latest Gen Intel® Xeon® Platform

High CPU Performance



The best in computational performance relies on a system well designed by our engineers to adequately dissipate heat to achieve peak performance.

Energy Efficiency



Our engineers have baked in features to achieve higher efficiency from power supplies and server fans. Along with Titanium and Platinum offerings.

Optimal Price



GIGABYTE releases multiple product models and configurations to target exactly what users want without paying for extra features that go unused.

Ease of Administration



GIGABYTE servers come with GIGABYTE Management Console for server management. Using a web based browser remotely is key to easing management.

Continuous Operation



Systems are rigorously designed and tested to ensure downtime will not occur. Customers have come to expect stable performance.

Optional TPM 2.0 Module



For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.



G4L3‑ZD1‑LAX5 GPU Server

High Performance

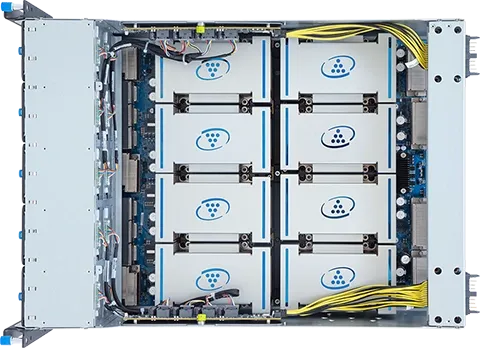

Supports Intel® Gaudi® 3 AI Accelerators



Building on extensive experience in accelerator design and deep expertise in microarchitecture and software, Intel has developed the third generation of Gaudi AI accelerators, Intel® Gaudi® 3, delivering breakthrough performance and efficiency. These accelerators achieve competitive results that rival leading solutions while maintaining a scalable platform. With a strong emphasis on Ethernet adoption and an open system architecture, Intel Gaudi 3 AI accelerators set a new standard for AI infrastructure, enabling businesses to scale efficiently and meet the evolving demands of tomorrow's AI challenges.









Certified Ready with Software Partners



Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

High Availability



Smart Ride Through (SmaRT)
To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.

Smart Crises Management and Protection (SCMP)



SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.

Dual ROM Architecture



If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.

Tool-less Drive Bays Design



Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.

Power Efficiency



Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.







Value-added Management

GIGABYTE Management Console

  • For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface.



  • Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface



  • Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions



  • Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters

GIGABYTE Server Management (GSM)



GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from the GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster.
  • GSM CLI: A command-line interface for monitoring and managing remotely.
  • GSM Agent: Installed on each GIGABYTE server node to retrieve system and device information through the OS, integrating with GSM Server or CLI.
  • GSM Mobile: A mobile app for Android and iOS that provides admins with real-time system information.
  • GSM Plugin: An API that allows users to use VMware vCenter for real-time monitoring and management of server clusters.





OPERATING SYSTEM
NTS AI Stack See what's inside each NTS AI package
