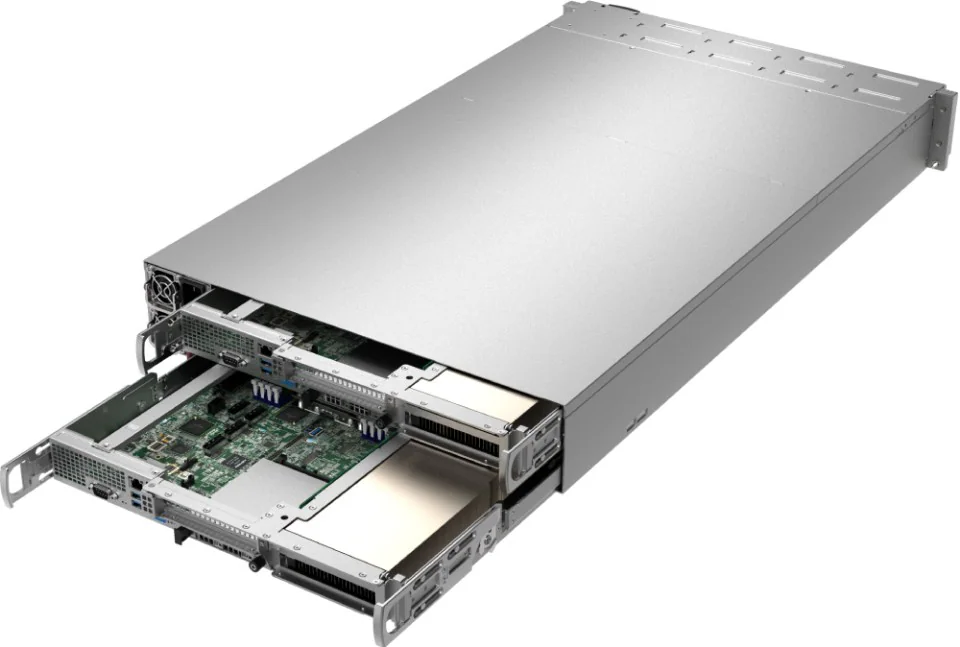

| Form Factor | 2U Rackmount
Enclosure: 447 x 88 x 760mm (17.6" x 3.47" x 29.9")
Package: 600 x 240 x 1100mm (23.62" x 9.44" x 43.3") |
Processor
| Single SP3
AMD EPYC™ 7002/7003 Series Processors |
| GPU | Max GPU Count: Up to 2 double-width or 4 single-width GPUs
Supported GPU: NVIDIA PCIe: L40, RTX A6000, RTX A4500, RTX A4000, A40, A16, A2, A100, A10
AMD PCIe: Instinct™ MI210, Instinct™ MI100 |
System Memory
| Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB ECC DDR4 RDIMM/LRDIMM |
| Drive Bays Configuration | Default: Total 2 bays
2 front hot-swap 2.5" NVMe drive bays |
| Expansion Slots | Default
1 PCIe 4.0 x16 FHHL slot
1 PCIe 4.0 x16 FHFL slot
1 PCIe 4.0 x8 AIOM slot (OCP 3.0 compatible)
Option A*
1 PCIe 4.0 x16 FHHL slot
1 PCIe 4.0 x16 FHFL slot
1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible) |
On-Board Devices
| Chipset: System on Chip
Network Connectivity: Ethernet
InfiniBand
IPMI: Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports(rear)
Video: 1 VGA port(Rear)
Serial: 1 COM port
TPM: 1 TPM header
|
System Cooling
| Fans: N/A
|
Power Supply
| 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 256MB Flash ROM
|
Management
| Supermicro Server Manager (SSM); Supermicro Power Manager (SPM); Supermicro Update Manager (SUM);
Supermicro SuperDoctor® 5 (SD5); KVM with dedicated LAN ; IPMI 2.0; Watch Dog
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
4+1 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 60 lbs (27.21 kg)
Net Weight: 55 lbs (24.94 kg)
Available Color: Black Front & Silver Body
|
Operating Environment
| RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
|
