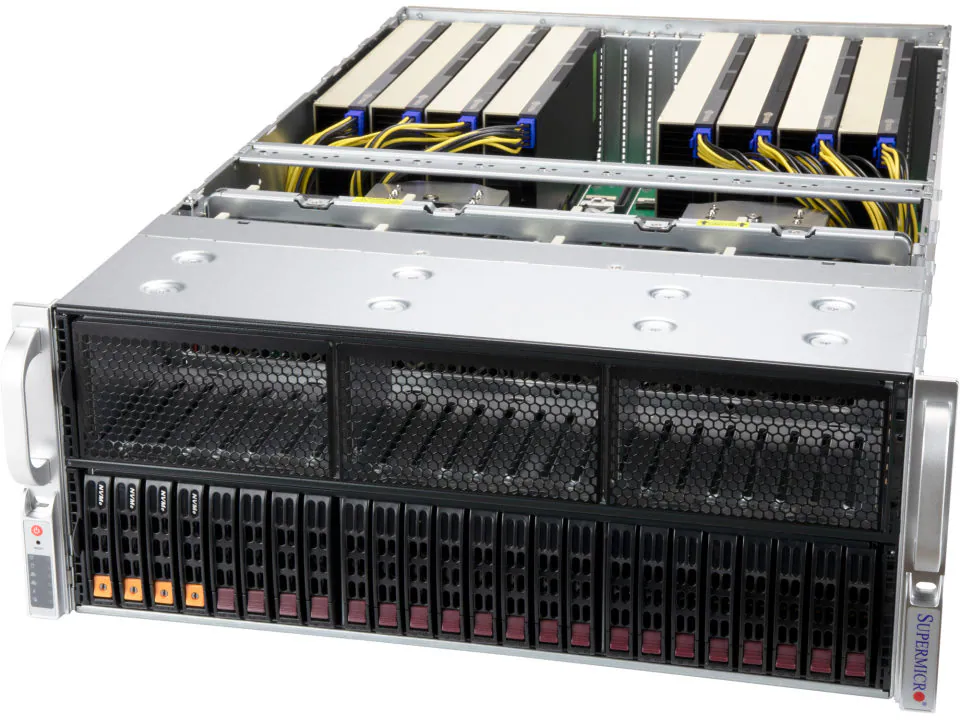

| Form Factor | 4U
Enclosure: 437 x 178 x 737mm (17.2" x 7" x 29")
Package: 685 x 675 x 1041mm (27" x 26.57" x 41") |
Processor
| Dual SP3
AMD EPYC™ 7002/7003 Series Processors |
| GPU | Max GPU Count: Up to 8 double-width or 8 single-width GPUs
Supported GPU:
NVIDIA PCIe: H100, A100, A2, A16, A30, A40, L40S, A10, RTX 6000, RTX 6000 Ada Generation, RTX A4500, RTX A6000,
T4, V100, L40, RTX 4000
AMD PCIe: Instinct™ MI150
CPU-GPU Interconnect: PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ |
System Memory
| Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Drive Bays Configuration | Default: Total 24 bays
20 front hot-swap 2.5" SATA drive bays
4 front hot-swap 2.5" NVMe drive bays
Option A: Total 24 bays
24 front hot-swap 2.5" SATA drive bays |
| Expansion Slots | Default
9 PCIe 4.0 x16 FHFL slots
Option A
10 PCIe 4.0 x16 FHFL slots |
| On-Board Devices | Chipset: System on Chip
Network Connectivity: 2 RJ45 1GbE
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 1 GbE LAN ports
USB: 2 USB 3.0 ports(front)
Video: 1 VGA port
|
System Cooling
| Fans: Up to 8x 11.5K RPM 92mm Fan(s)
|
Power Supply
| 4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 32MB SPI FLASH ROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
4+1 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 100 lbs (45.3 kg)
Net Weight: 65.5 lbs (29.7 kg)
Available Color: Black
|
Operating Environment
| RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
|
