GPU A+ Server AS-5126GS-TNRT2

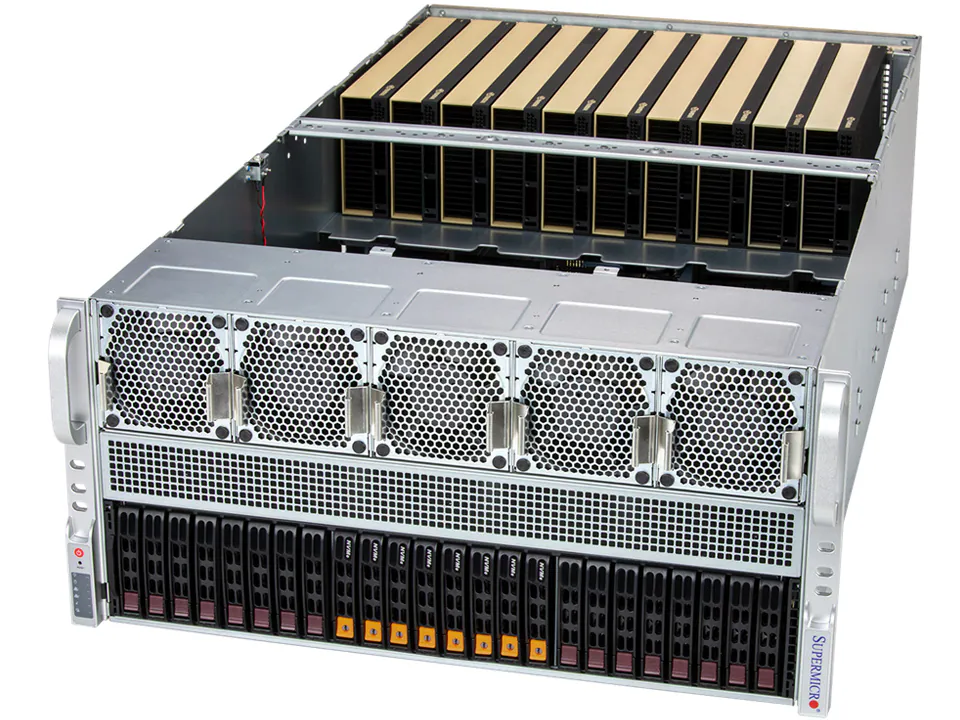

Picture of GPU A+ Server AS-5126GS-TNRT2

NTS AI Software Stacks

Purpose-Built for Every Workflow – From Instant Productivity to Full Customization

GPU A+ Server AS-5126GS-TNRT2

DP AMD 5U System with 10 PCIe GPUs via PLX switch

Key Applications

AI / Deep Learning
3D Rendering Farm
Visualization / Simulation
High Performance Computing
Multimedia/Digital Content creation

Key Features

Dual processor(s) AMD EPYC™ 9005/9004 Series Processors up to 500W with air cooling
Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 in 1DPC
(Please check System Memory Section for detail)
Total of 13 PCIe 5.0 x16 FHFL slots
Supports up to 10 double-width PCIe GPU accelerator cards
(8 double-width GPU is recommended, other 5 slots reserved for Networking scale out)
Flexible networking with AIOM support
Dual front hot-swap 2.5" SATA + 8 front hot-swap 2.5" NVMe drive bays
Total of 6x 2700W Redundant (3+3 or 4+2) Titanium Level power supplies
(Power supply redundancy based on configuration and application load)

Configure & Buy Specifications

Form Factor	5U Rackmount Enclosure: 438 x 222.5 x 786.1mm (17.2" x 8.75" x 31") Package: 720 x 440 x 1080mm (28.34" x 17.32" x 42.51")
Processor	Dual processor(s) AMD EPYC™ 9005/9004 Series Processors Up to 192C/384T
GPU	Max GPU Count: Up to 10 double-width GPUs Supported GPU: NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB),L40S CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional)
System Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor
Drive Bays Configuration	Default: Total 10 bays 2 front hot-swap 2.5" SATA drive bays 8 front hot-swap 2.5" NVMe drive bays M.2: 1 M.2 PCIe 3.0 x4 NVMe slot (M-key)
Expansion Slots	Default 13 PCIe 5.0 x16 FHFL slots Option A 11 PCIe 5.0 x16 FHFL slots
On-Board Devices	SATA: SATA (6Gbps) Chipset: System on Chip Network Connectivity: 2 RJ45 10GbE
Input / Output	LAN: 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports USB: 2 ports(rear) Video: 1 VGA port
System Cooling	Fans: 10 heavy duty fans with optimal fan speed control
Power Supply	6x 2700W Redundant (3 + 3) Titanium Level (96%) power supplies
System BIOS	BIOS Type: AMI 64MB SPI Flash EEPROM
Management	SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA)
PC Health Monitoring	CPU: Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Dimensions and Weight	Weight: Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) Available Color: Black Front & Silver Body
Operating Environment	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Chassis	CSE-528G2TS-R000NDP

Barebone

GPU A+ Server 5126GS-TNRT2 - 5U 10GPU Server - 10x 2.5" Hot-swap - Dual 10-Gigabit Ethernet - 2700W (3+3) Redundant

Processor

2 x AMD EPYC™ 9015 Processor 8C /16T 3.60 GHz 64MB Cache (155W) [+$1,024.00]
2 x AMD EPYC™ 9115 Processor 16C /32T 2.60GHz 64MB Cache (155W) [+$2,480.00]
2 x AMD EPYC™ 9135 Processor 16C /32T 3.65GHz 64MB Cache (200W) [+$2,480.00]
2 x AMD EPYC™ 9255 Processor 24C /48T 3.25GHz 128MB Cache (200W) [+$7,336.00]
2 x AMD EPYC™ 9335 Processor 32C /64T 3.0GHz 128MB Cache (210W) [+$10,136.00]
2 x AMD EPYC™ 9355 Processor 32C /64T 3.55GHz 256MB Cache (280W) [+$11,736.00]
2 x AMD EPYC™ 9365 Processor 36C /72T 3.4GHz 256MB Cache (300W) [+$10,120.00]
2 x AMD EPYC™ 9455 Processor 48C /96T 3.15GHz 256MB Cache (300W) [+$20,120.00]
2 x AMD EPYC™ 9535 Processor 64C /128T 2.4GHz 256MB Cache (300W) [+$27,600.00]
2 x AMD EPYC™ 9375F Processor 32-core 3.8GHz 256MB Cache (320W) 32c [+$7,312.00]
2 x AMD EPYC™ 9555 Processor 64-core 3.2GHz 256MB Cache (360W) 64c [+$14,332.00]
2 x AMD EPYC™ 9565 Processor 72-core 3.15GHz 384MB Cache (400W) 72c [+$7,872.00]
2 x AMD EPYC™ 9645 Processor 96-core 2.3GHz 256MB Cache (320W) 96c [+$15,632.00]
2 x AMD EPYC™ 9655 Processor 96-core 2.6GHz 384MB Cache (400W) 96c [+$16,300.00]
2 x AMD EPYC™ 9745 Processor 128-core 2.4GHz 256MB Cache (400W) 128c [+$19,020.00]
2 x AMD EPYC™ 9825 Processor 144-core 2.2GHz 384MB Cache (390W) 144c [+$11,332.00]
2 x AMD EPYC™ 9845 Processor 160-core 2.1GHz 320MB Cache (390W) 160c [+$21,580.00]
2 x AMD EPYC™ 9175F Processor 16-core 4.2GHz 512MB Cache (320W) 16c [+$3,912.00]
2 x AMD EPYC™ 9275F Processor 24-core 4.1GHz 256MB Cache (320W) 24c [+$4,980.00]
2 x AMD EPYC™ 9475F Processor 48-core 3.65GHz 256MB Cache (400W) 48c [+$10,332.00]
2 x AMD EPYC™ 9575F Processor 64-core 3.3GHz 256MB Cache (400W) 64c [+$16,252.00]

Memory

16 GB PC5-51200 6400 MHz DDR5 [+$380.00]
32 GB PC5-51200 6400 MHz DDR5 [+$418.00]
64 GB PC5-51200 6400 MHz DDR5 [+$632.00]
96 GB PC5-51200 6400 MHz DDR5 [+$1,500.00]
128 GB PC5-51200 6400 MHz DDR5 [+$2,332.00]

M.2 DRIVE

(Max Quantity: 2)

480GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$145.56]
960GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$218.64]
1.92TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$372.21]
3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (110mm) PCIe 4.0 x4 NVMe [+$687.69]
400GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$167.24]
800GB Micron 7450 MAX Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) PCIe 4.0 x4 NVMe [+$251.28]
960GB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$299.00]
1.92TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$465.00]
3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive PCIe 4.0 x4 NVMe [+$849.00]

HARD DRIVE

(Max Quantity: 10)

240GB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$98.77]
480GB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$139.38]
960GB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$208.94]
1.92TB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$359.01]
3.84TB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$676.45]
7.68TB Micron 5400 PRO Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$1,184.36]
480GB Micron 5400 MAX Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$160.25]
960GB Micron 5400 MAX Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$243.60]
1.92TB Micron 5400 MAX Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$434.11]
3.84TB Micron 5400 MAX Series 2.5" SATA 6.0Gb/s Solid State Drive 6.0Gb/s Serial ATA [+$809.30]
960GB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$231.03]
1.92TB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$375.89]
3.84TB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$631.96]
7.68TB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$1,208.86]
15.36TB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$2,258.55]
800GB Micron 7450 MAX Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$266.10]
1.6TB Micron 7450 MAX Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$433.05]
3.2TB Micron 7450 MAX Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$731.95]
6.4TB Micron 7450 MAX Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$1,196.62]
12.8TB Micron 7450 MAX Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) PCIe 4.0 x4 NVMe [+$2,296.10]

GPU

(Max Quantity: 10)

NVIDIA ® L40S ADA GPU Computing Accelerator - 48GB GDDR6 - PCIe 4.0 x16 - Passive Cooling Nvidia L40S [+$8,099.00]
NVIDIA ® H100 NVL GPU Computing Accelerator - 94GB HBM3 - PCIe 5.0 x16 - Passive Cooling Nvidia H100 NVL [+$25,581.60]
NVIDIA® H200 NVL GPU Computing Accelerator - 141GB HBM3e - PCIe 5.0 x16 - Passive Cooling Nvidia H200 [+$43,400.00]
NVIDIA® RTX PRO 6000 Blackwell Server Edition - 96GB GDDR7 ECC - PCIe 5.0 x16 - Passive Cooling (4xDP) [+$20,278.00]

GPU Bridge

(Max Quantity: 5)

NVIDIA® NVLink™ Bridge - 2-Way 2-Slot Spacing - A100 and H100 NVL 600GB [+$249.00]
NVIDIA H200 NVL 4-Way NVLink Bridge [+$825.00]

NETWORK ADAPTER

Broadcom NetXtreme 1-Gigabit Ethernet Network Adapter PCI Express 2.1 x1 RJ45 [+$74.39]
Broadcom NetXtreme 1-Gigabit Ethernet Network Adapter PCI Express 2.1 x4 RJ45 [+$95.88]
Broadcom NetXtreme 10-Gigabit Ethernet Network Adapter P210TP PCI Express 3.0 x8 RJ45 [+$284.67]
Broadcom NetXtreme 10-Gigabit Ethernet Network Adapter P210P PCI Express 3.0 x8 SFP+ [+$225.63]
Broadcom NetXtreme 25-Gigabit Ethernet Network Adapter P225P PCI Express 3.0 x8 SFP28 [+$384.38]
Broadcom NetXtreme 25-Gigabit Ethernet Network Adapter P425G PCIe 4.0 x16 SFP28 [+$543.51]
Broadcom NetXtreme 50-Gigabit Ethernet Network Adapter P150P PCI Express 3.0 x8 QSFP28 [+$399.98]
Broadcom NetXtreme 100-Gigabit Ethernet Network Adapter P2100G PCIe 4.0 x16 QSFP56 [+$1,013.95]
Broadcom NetXtreme 200-Gigabit Ethernet Network Adapter P1200G PCIe 4.0 x16 QSFP56 [+$911.64]
Intel ® 10-Gigabit Ethernet Network Adapter X710-T2L PCI Express 3.0 x8 RJ45 [+$224.71]
Intel ® 10-Gigabit Ethernet Network Adapter X710-T4L PCI Express 3.0 x8 RJ45 [+$484.93]
Intel ® 10-Gigabit Ethernet Converged Network Adapter X710-DA2 PCI Express 3.0 x8 SFP+ [+$209.34]
Intel ® 25-Gigabit Ethernet Network Adapter E810-XXVDA2 PCIe 4.0 x8 SFP28 [+$209.57]
Intel ® 100-Gigabit Ethernet Network Adapter E810-CQDA1 PCIe 4.0 x16 QSFP28 [+$384.26]
Nvidia ® ConnectX®-6 Dx EN 100-Gigabit Ethernet Adapter PCIe 4.0 x16 QSFP56 [+$1,113.27]
Nvidia ® ConnectX®-6 Dx EN 200-Gigabit Ethernet Adapter PCIe 4.0 x16 QSFP56 [+$1,179.55]
Nvidia ® ConnectX®-6 200-Gigabit HDR InfiniBand Adapter 2 Ports PCIe 4.0 x16 QSFP56 [+$1,669.93]
Intel ® 10-Gigabit Ethernet Converged Network Adapte PCI Express 3.0 x8 SFP+ [+$374.93]
Intel ® 25-Gigabit Ethernet Network Adapter PCIe 4.0 x16 SFP28 [+$533.25]
Nvidia ® ConnectX®-7 200-Gigabit NDR200 InfiniBand Adapter PCIe 5.0 x16 OSFP [+$1,170.74]
Nvidia ® ConnectX®-7 400-Gigabit NDR400 InfiniBand Adapter PCIe 5.0 x16 OSFP [+$1,533.14]
Nvidia ® ConnectX®-7 400-Gigabit NDR400 InfiniBand Adapter PCIe 5.0 x16 OSFP [+$1,763.55]
Intel ® 25-Gigabit Ethernet Network Adapter E810-XXVDA4 - PCIe 4.0 x16 - 4x SFP28 PCIe 4.0 x16 SFP28 [+$533.25]
Intel ® 100-Gigabit Ethernet Network Adapter E810-CQDA1 - PCIe 4.0 x16 - 1x QSFP28 PCIe 4.0 x16 QSFP28 [+$384.26]
NVIDIA ® ConnectX®-7 200-Gigabit Ethernet Adapter - PCIe 5.0 x16 - 2x QSFP112 - Crypto Enabled PCIe 5.0 x16 QSFP112 [+$2,346.00]
NVIDIA® ConnectX®-7 200-Gigabit Ethernet Adapter - PCIe 5.0 x16 - 2x QSFP112 - Crypto Disabled PCIe 5.0 x16 QSFP112 [+$2,061.00]

Trusted Platform Module

Supermicro AOM-TPM-9670V - Trusted Platform Module - TPM 2.0 - X11 X12 - Not Provisioned - Vertical [+$41.07]
Supermicro AOM-TPM-9671V - Trusted Platform Module - TPM 1.2 - X11 - Vertical [+$51.00]

SERVER MANAGEMENT

(Included) Update Manager (SUM) (OOB Management Package)
Supermicro Server Manager (SSM) (DataCenter Management Package) [+$131.52]

OPERATING SYSTEM

No Operating System
Microsoft Windows Server 2022 Standard (16-core) [+$799.00]
Microsoft Windows Server 2022 Standard (24-core) [+$1,239.00]
Microsoft Windows Server 2022 Datacenter (16-core) [+$4,899.00]
Microsoft Windows Server 2022 Datacenter (24-core) [+$7,451.00]
Microsoft Windows Server 2025 Standard (16-core) (DSP) [+$1,160.00]
Microsoft Windows Server 2025 Standard (24-core) (DSP) [+$1,728.00]
Microsoft Windows Server 2025 Datacenter (16-core) (DSP) [+$6,449.00]
Microsoft Windows Server 2025 Datacenter (24-core) (DSP) [+$9,674.00]
Red Hat® Enterprise Linux® 8 Server (Self Support) (1 Year) [+$389.00]
Red Hat® Enterprise Linux® 8 Server (Standard) (1 Year) [+$849.00]
Red Hat® Enterprise Linux® 8 Server (Premium) (1 Year) [+$1,489.00]
Red Hat® Enterprise Linux® 9 Server (Self Support) (1 Year) [+$409.00]
Red Hat® Enterprise Linux® 9 Server (Standard) (1 Year) [+$859.00]
Rocky Linux 8 [+$49.00]
Rocky Linux 9 [+$49.00]
Ubuntu 22.04 LTS [+$49.00]
Ubuntu 24.04 LTS [+$49.00]

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Software

Downgrade Kit - Microsoft Windows Server 2022 Standard to 2016 Standard - COA and DVD Media [+$50.00]
Downgrade Kit - Microsoft Windows Server 2022 Standard to 2019 Standard - COA and DVD Media [+$50.00]
1-Device Client Access License (CAL) for Microsoft Windows Server 2022 [+$40.00]
5-Device Client Access License (CAL) for Microsoft Windows Server 2022 [+$189.00]
1-User Client Access License (CAL) for Microsoft Windows Server 2022 [+$50.00]
5-User Client Access License (CAL) for Microsoft Windows Server 2022 [+$239.00]
Additional 2-core License for Microsoft Windows Server 2022 Standard [+$110.00]
Additional 4-core License for Microsoft Windows Server 2022 Standard [+$220.00]
Additional 16-core License for Microsoft Windows Server 2022 Standard [+$880.00]
Downgrade Kit - Microsoft Windows Server 2022 Datacenter to 2016 Datacenter - COA and DVD Media [+$50.00]
Downgrade Kit - Microsoft Windows Server 2022 Datacenter to 2019 Datacenter - COA and DVD Media [+$50.00]
Additional 2-core License for Microsoft Windows Server 2022 Datacenter [+$638.00]
Additional 4-core License for Microsoft Windows Server 2022 Datacenter [+$1,276.00]
Additional 16-core License for Microsoft Windows Server 2022 Datacenter [+$5,104.00]
1-Device Client Access License (CAL) for Microsoft Windows Server 2025 [+$49.00]
5-Device Client Access License (CAL) for Microsoft Windows Server 2025 [+$49.00]
1-User Client Access License (CAL) for Microsoft Windows Server 2025 [+$49.00]
5-User Client Access License (CAL) for Microsoft Windows Server 2025 [+$49.00]
Additional 2-core License for Microsoft Windows Server 2025 Standard [+$49.00]
Additional 4-core License for Microsoft Windows Server 2025 Standard [+$49.00]
Additional 16-core License for Microsoft Windows Server 2025 Standard [+$49.00]
Additional 2-core License for Microsoft Windows Server 2025 Datacenter [+$49.00]
Additional 4-core License for Microsoft Windows Server 2025 Datacenter [+$49.00]
Additional 16-core License for Microsoft Windows Server 2025 Datacenter [+$49.00]

Warranty

3 Year Depot Warranty (Return for Repair)
3 Year Advanced Parts Replacement Warranty [+$50.00]
3 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$450.00]
4 Year Advanced Parts Replacement Warranty [+$250.00]
4 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$770.00]
5 Year Advanced Parts Replacement Warranty [+$563.00]
5 Year Advanced Parts Replacement Warranty and NBD Onsite Service [+$1,203.00]

Call for pricing

Qty:

We use cookies to improve your experience. Customize your preferences or accept all.

Functional (required)
Analytics
Marketing

Information

Sitemap
Contact us

Customer service

Search
Blog
Compare products list

My account

My account
Orders
Addresses
Shopping cart

Follow us

Newsletter

Wait...

Copyright © 2025 RackMountNTS. All rights reserved.

Powered by nopCommerce

Request a Quote

Name

E-mail Address

Contact Number

Industry

Job Title

Company

Company Address

Enquiry
