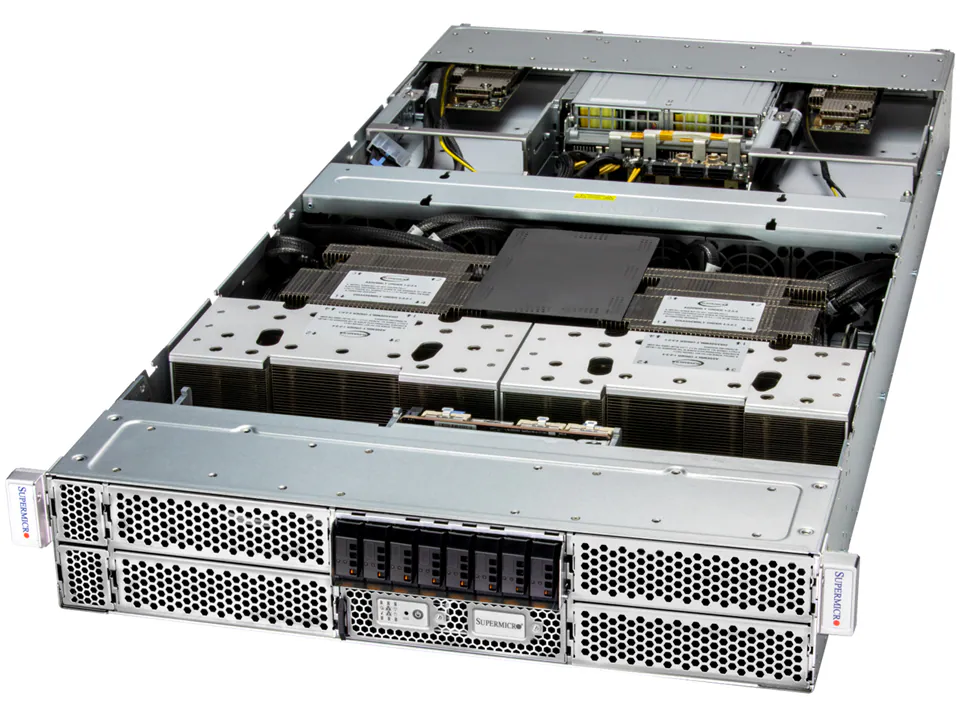

| Form Factor | 2U Rackmount
Enclosure: 438.4 x 87 x 900mm (17.3" x 3.43" x 35.43")
Package: 700 x 280 x 1200mm (27.56" x 11.02" x 47.24") |
Processor
| NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip |
| GPU | Max GPU Count: 2 onboard GPUs
Supported GPU: NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled)
CPU-GPU Interconnect: NVLink®-C2C
GPU-GPU Interconnect: NVIDIA® NVLink® |
| System Memory | Slot Count: Onboard Memory
Max Memory: Up to 960GB ECC LPDDR5X
Additional GPU Memory: Up to 288GB ECC HBM3e |
| Drive Bays Configuration | Default: Total 3 bays
3 front fixed E1.S NVMe drive bays
M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | Default
3 PCIe 5.0 x16 (in x16) FHFL slots
1 PCIe 5.0 x4 (in x16) FHFL slot |
On-Board Devices
| System on Chip
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 1 port(Rear)
Video: 1 mini-DP port
|
System Cooling
| Fans: Up to 6 Removable heavy-duty 6cm Fan(s)
|
Power Supply
| 4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 64MB UEF
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 103 lbs (46.8 kg)
Net Weight: 88 lbs (40 kg)
Available Color: Silver
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
Chassis
| Chassis CSE-MG202TS-R000NDFP
|
