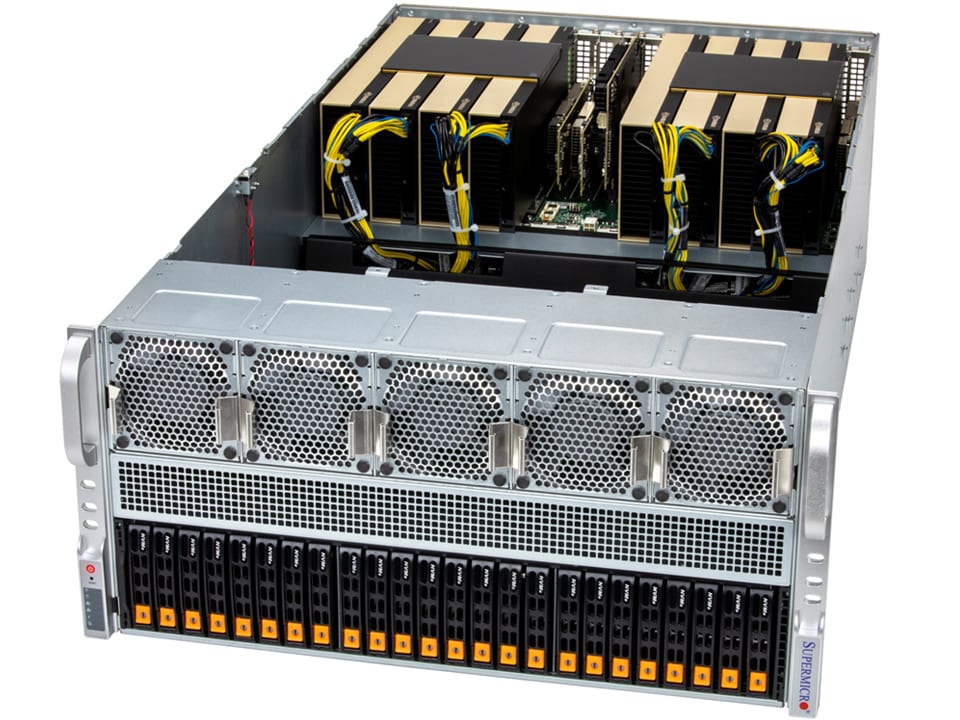

| Form Factor | 5U Rackmount
Enclosure: 438 x 222.5 x 786.1mm (17.2" x 8.75" x 31")
Package: 720 x 440 x 1080mm (28.34" x 17.32" x 42.51") |
Processor
| Dual Socket BR (LGA-7529)
Intel® Xeon® 6900 series processors with P-cores
Up to 128C/256T; Up to 504MB Cache per CPU |
| GPU | Max GPU Count: Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs
Supported GPU:
NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), L40S, L4
CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional) |
System Memory
| Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
| Drive Bays Configuration | Default: Total 24 bays
24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays
M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | PCI-Express (PCIe) Configuration: Default
13 PCIe 5.0 x16 FHFL slots
M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key |
On-Board Devices
| Chipset: System on Chip
Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2
|
Input / Output
| LAN: 2 RJ45 10 GbE LAN ports (Intel® I350)
USB: 2 USB 3.0 Type-A ports(Rear)
Video: 1 VGA port
|
System Cooling
| Fans: 10 heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud
|
Power Supply
| 6x 2700W Redundant Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 32MB SPI Flash EEPROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro ThinAgent Service (TAS); SuperServer Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
8+4 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 100 lbs (45.3 kg)
Net Weight: 65.5 lbs (29.7 kg)
Available Color: Black Front & Silver Body
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
