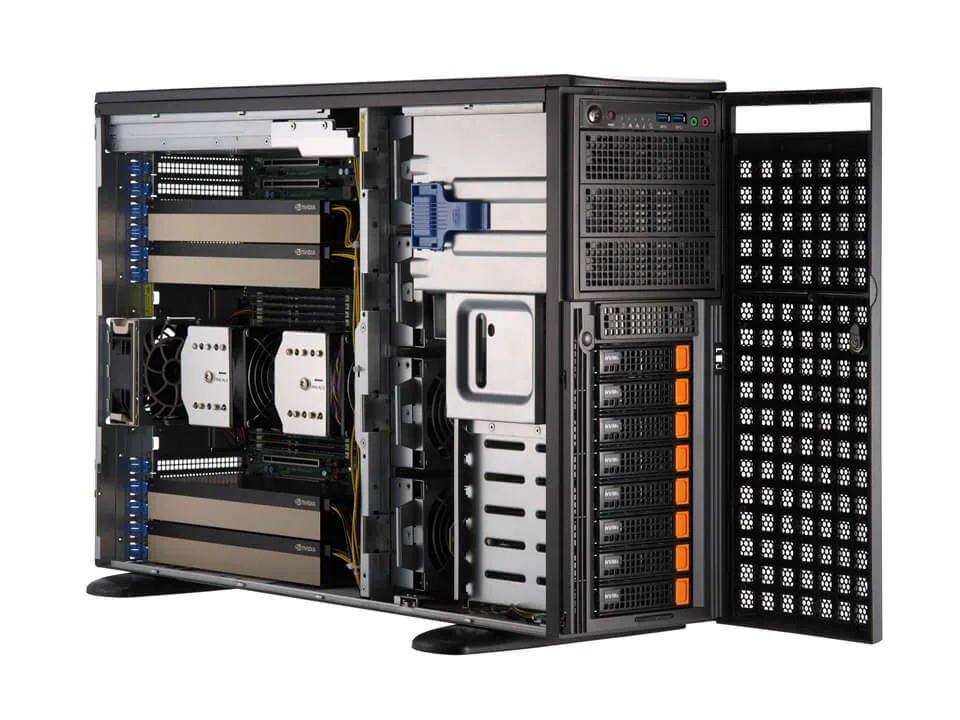

| Form Factor | Tower Rackmount
Enclosure: 177 x 465.4 x 678.5mm (6.96" x 18.32" x 26.71")
Package: 682 x 320 x 964mm (26.85" x 12.59" x 37.95") |
Processor
| Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T; Up to 320MB Cache per CPU |
| GPU | Max GPU Count: Up to 4 double-width or 4 single-width GPUs
Supported GPU:
NVIDIA PCIe: H100 NVL, H100, RTX 4000 Ada Generation, L40, RTX A5500, RTX A6000, RTX A4000, RTX 6000 Ada
Generation, L40S, L4, A30, A100
AMD PCIe: Instinct™ MI210
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional) |
| System Memory | Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 8 bays
8 front hot-swap 3.5" NVMe/SAS/SATA drive bays
Option A: Total 8 bays
8 front hot-swap 2.5" NVMe/SAS/SATA drive bays
M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | PCI-Express (PCIe) Configuration: Default
7 PCIe 5.0 x16 FHFL slots
M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key) |
On-Board Devices
| SATA: SATA (6Gbps)
Chipset: Intel® C741
Network Connectivity: 2 RJ45 10GbE with Intel® X550-AT2
|
Input / Output
| Video: 1 VGA port(Rear)
Serial: 1 COM port(rear)
Audio: Front Audio
TPM: 1 TPM Onboard/port 80
|
System Cooling
| Fans: Up to 4 heavy duty fans with optimal fan speed control
|
Power Supply
| 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 32MB SPI Flash EEPROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
8+4 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 62 lbs (28.1 kg)
Net Weight: 46 lbs (20.9 kg)
Available Color: Black Front & Silver Body
|
Operating Environment
| RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
|
