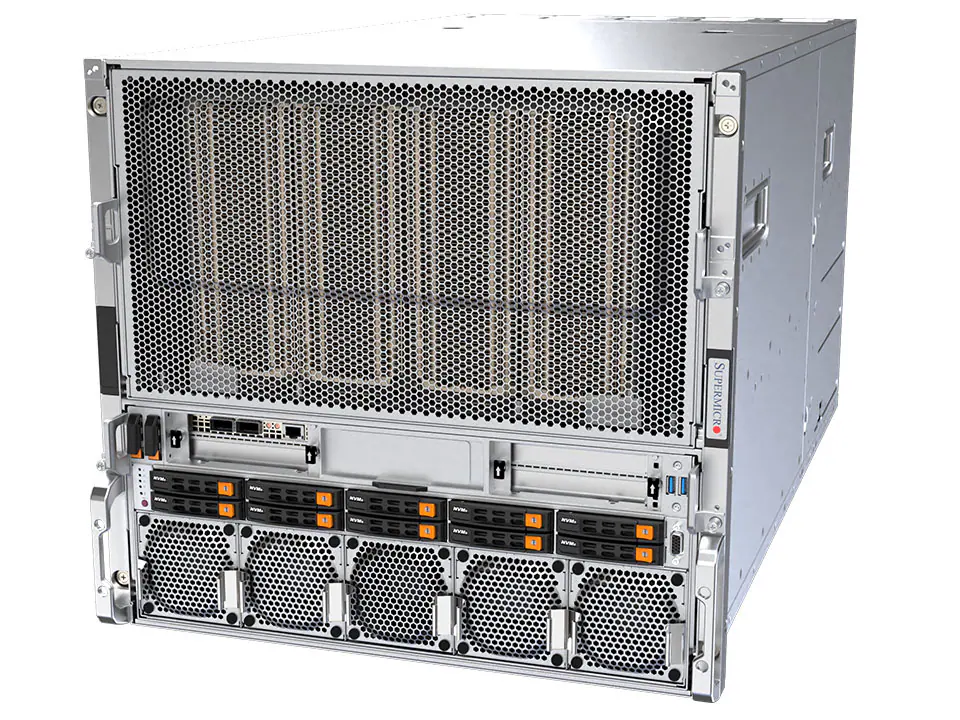

| Form Factor | 10U Rackmount
Enclosure: 449 x 438.8 x 843.28mm (17.6" x 17.2" x 33.2")
Package: 1255 x 640 x 694mm (49.4" x 25.2" x 27.3") |
Processor
| Dual Socket BR (LGA-7529)
Intel® Xeon® 6900 series processors with P-cores
Up to 128C/256T; Up to 504MB Cache per CPU |
| GPU | Max GPU Count: 8 onboard GPUs
Supported GPU: NVIDIA SXM: HGX B200 8-GPU (180GB)
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ |
| System Memory | Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
| Drive Bays Configuration | Default: Total 10 bays
10 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
M.2: 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default
10 PCIe 5.0 x16 LP slots
2 PCIe 5.0 x16 FHHL slots |
On-Board Devices
| Chipset: System on Chip
Network Connectivity: 2 RJ45 10GbE with Intel® X710
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports(rear)
Video: 1 VGA port
TPM: 1 TPM header
|
System Cooling
| Fans: Up to 15 counter-rotating 80x80x80mm Fan(s)
Up to 4 counter-rotating 60x60x56mm Fan(s)
Air Shroud: 1 Air Shroud
|
Power Supply
| 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 64MB UEFI
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro ThinAgent Service (TAS); SuperServer Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 341 lbs (155 kg)
Net Weight: 293 lbs (133 kg)
Available Color: Silver
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing
|
