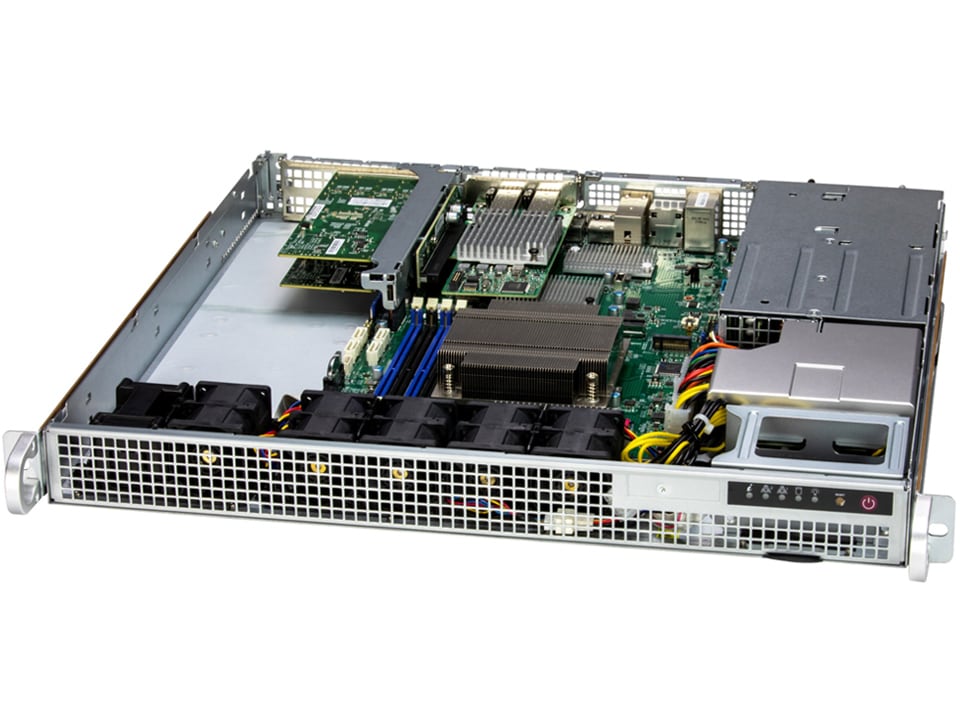

Picture of IoT SuperServer SYS-111AD-WRN2

NTS AI Software Stacks

Purpose-Built for Every Workflow – From Instant Productivity to Full Customization

IoT SuperServer SYS-111AD-WRN2

1U short-depth 14th Gen Intel Core edge server with 2 internal 2.5" drive bays and PCIe 5.0

Key Applications

  • Virtualization
  • Firewall Applications
  • Edge/Cloud Computing Services
  • CDN/vCDN/Cloud CDN
  • vRAN/o-RAN

Key Features

  1. Intel® 14th/13th/12th Gen Core i9/i7/i5/i3 (ADL/RPL-S) Processor in LGA1700 Socket with R680E Chipset
  2. 4 DIMM slots, DDR5-4400MHz memory, support up to 128GB
  3. 1x dedicated IPMI LAN, 2x 2.5GbE BaseT LAN ports via Intel® I226 Controller
  4. 800W 100-240Vac Platinum Single Power Supply (can be upgraded to redundant power supply)
Configure & Buy Specifications



   Form Factor1U
Enclosure: 437 x 43 x 429mm (17.2" x 1.7" x 16.9")
Package: 686 x 203 x 610mm (27" x 8" x 24")
ProcessorSingle LGA-1700
14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors
GPUMax GPU Count: 1 double-width or 1 single-width GPU
Supported GPU: NVIDIA PCIe: A1000, T1000, A2
System Memory
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM
Drive Bays Configuration Default: Total 2 bays
2 internal fixed 2.5" NVMe/SAS/SATA drive bays
M.2: 2 M.2 NVMe slots (M-key 2280/22110)
1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280)
1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110)
    Expansion Slots Default
2 PCIe 5.0 x8 FHFL slots
1 PCIe 4.0 x4 LP slot
Option A
1 PCIe 5.0 x16 (in x16) FHFL double-width slot
1 PCIe 4.0 x4 (in x8) HHHL slot
    On-Board Devices
Chipset: Intel® R680E
Network Connectivity: 2 RJ45 2.5GbE with Intel® I226
     Input / Output
LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 2.5 GbE LAN ports (Intel® I226)
USB: 2 ports
Video: 1 VGA port
2 DisplayPort 1.4a ports
     System Cooling
Fans: Up to 5 Heavy duty counter-rotating 4cm Fan(s)
Air Shroud: 1 Air Shroud
   Power Supply
1x 800W Redundant Platinum Level (94%) power supply
System BIOS
BIOS Type: AMI 32MB SPI Flash
BIOS Features: Plug and Play (PnP)
ACPI 6.5
SMBIOS 3.6 or later
UEFI 2.8
USB Keyboard support
Management

SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM);

Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS);

SuperServer
Automation Assistant (SAA) New!

PC Health Monitoring
Temperature: SuperDoctor® 5
System resource alert via SuperDoctor®5
Platform Environment Control Interface (PECI) 3.0 support
Dimensions and Weight
Weight: Gross Weight: 25.2 lbs (11.43 kg)
Available Color: No Paint
Operating Environment
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Barebone
Processor
Memory
M.2 DRIVE
HARD DRIVE
(Max Quantity: 2)
GPU
(Max Quantity: 2)
SERVER MANAGEMENT
VROC
    OPERATING SYSTEM
