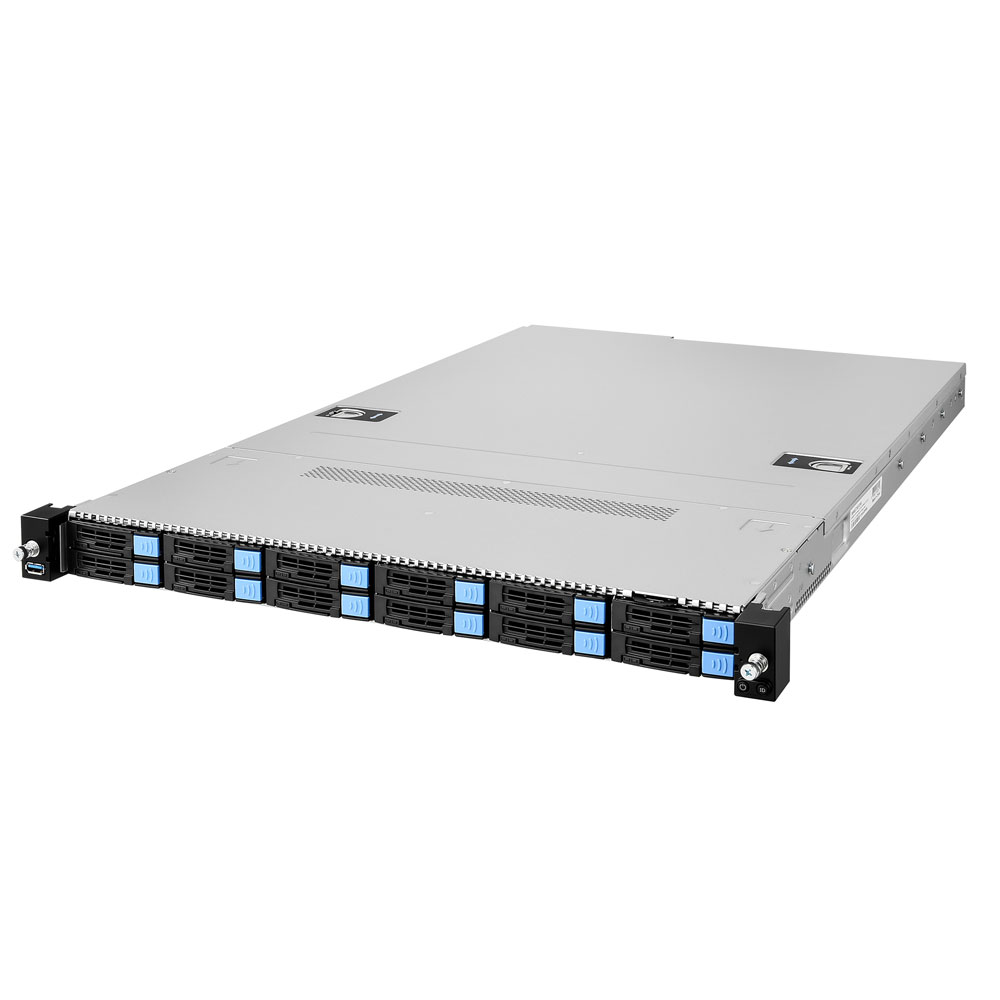

| System | Form Factor 1U Rackmount

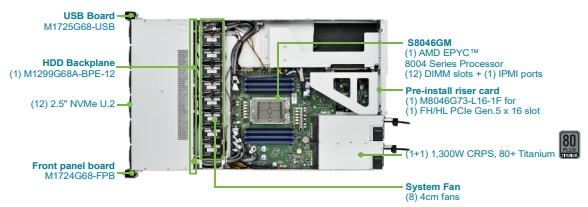

Chassis Model GC73A
Dimension (D x W x H) 28.74" x 17.26" x 1.72" (730 x 438.5 x 43.6mm)
Motherboard Name S8046GM
Gross Weight 26.75 kg (58.97 lbs)
Net weight 13.75 kg (30.31 lbs)
Board Dimension Prop. 12.30" x 11.75" (312.5 x 298.5mm)
|
Front Panel
| Buttons (1) PWR w/ LED / (1) ID w/ LED
LEDs (1) ID / (1) PWR
I/O Ports (1) USB 3.2 Gen.1 port |
| External Drive Bay | Q'ty / Type (12) 2.5" hot-swap NVMe HDD/SSDs
Front Drive Bay Interface (12) NVMe U.2
Front Drive Backplane Support NVMe / SATA 6Gb/s |
System Cooling Configuration
| Fan (8) 4056 fans
Air Duct (2) Tailored Air Duct |
| Power Supply | Type CRPS
Input Range AC 100-127V/12A / AC 200-240V/8.5A
Frequency 50/60 Hz
Output Watts 1,300 Watts
Efficiency 80 plus Titanium
Redundancy 1+1 |
| Processor | Q'ty / Socket Type (1) AMD Socket SP6
Supported CPU Series (1) AMD EPYC™ 8004 Series Processor
Thermal Design Power Wattage Max up to 225W (TDP) |
Memory
| Supported DIMM Qty (12) DIMM slots
DIMM Type / Speed RDIMM / RDIMM-3DS DDR5 4800 MHz (1DPC) - 4th Gen. / RDIMM DDR5 3600 MHz (2DPC)
Capacity Up to 1,152GB RDIMM DDR5 4800/3600 memory
Memory channel 6 Channels per CPU
Memory voltage 1.1V
|
Expansion Slots
| PCIe (1) PCIe Gen 5 x16 slot / (1) PCIe Gen 5 x16 from (2) MCIO x8
Pre-installed TYAN Riser Card (PCIe Gen.5) (1) M8046G73-L16-1F riser for (1) FH/HL PCIe Gen.5 x 16 slot / (1) CEM Riser for (1) FH/FL PCIe Gen.5 x 16 slot
Others (1) DC-SCM slot
Physical Dimension Abbreviation FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm) / FH/HL (Full-height / Half-length): 4.4" x 6.6" (111.2 x 167.7mm)
|
LAN
| PHY Realtek RTL8211F
|
Storage NVMe
| Connector (M.2) (2) 22110/2280 (by PCIe Gen 3 interface)
Connector (U.2) (6) SFF-TA-1016 (MCIO 8x) for (12) front NVMe
|
I/O Ports
| USB (1) USB2.0 port (@ rear) / (1) USB3.2 Gen.1 port (@ front) / (1) USB3.2 Gen.1 port (@ rear)
RJ-45 (1) GbE port dedicated for IPMI
Button ID Button / Power Button / Reset Button
|
TPM (Optional)
| TPM Support Please refer to our TPM supported list.
Interface SPI
|
System Monitoring
| Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
|
Server Management
| Onboard Chipset Onboard Aspeed AST2600 (on DCSCM module)
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
|
BIOS
| Brand / ROM size AMI / 64MB
Feature Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0, S5
|
| Operating Environment | Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C |
| Regulation | FCC (SDoC) Class A
CE (DoC) Class A
RCM Yes
VCCI Yes
BSMI Yes |
| Operating System | OS supported list Please refer to our AVL support lists. |
| RoHS | RoHS 6/6 Compliant Yes |
| Package Contains | Barebone (1) GC73A-B8046 Barebone |
