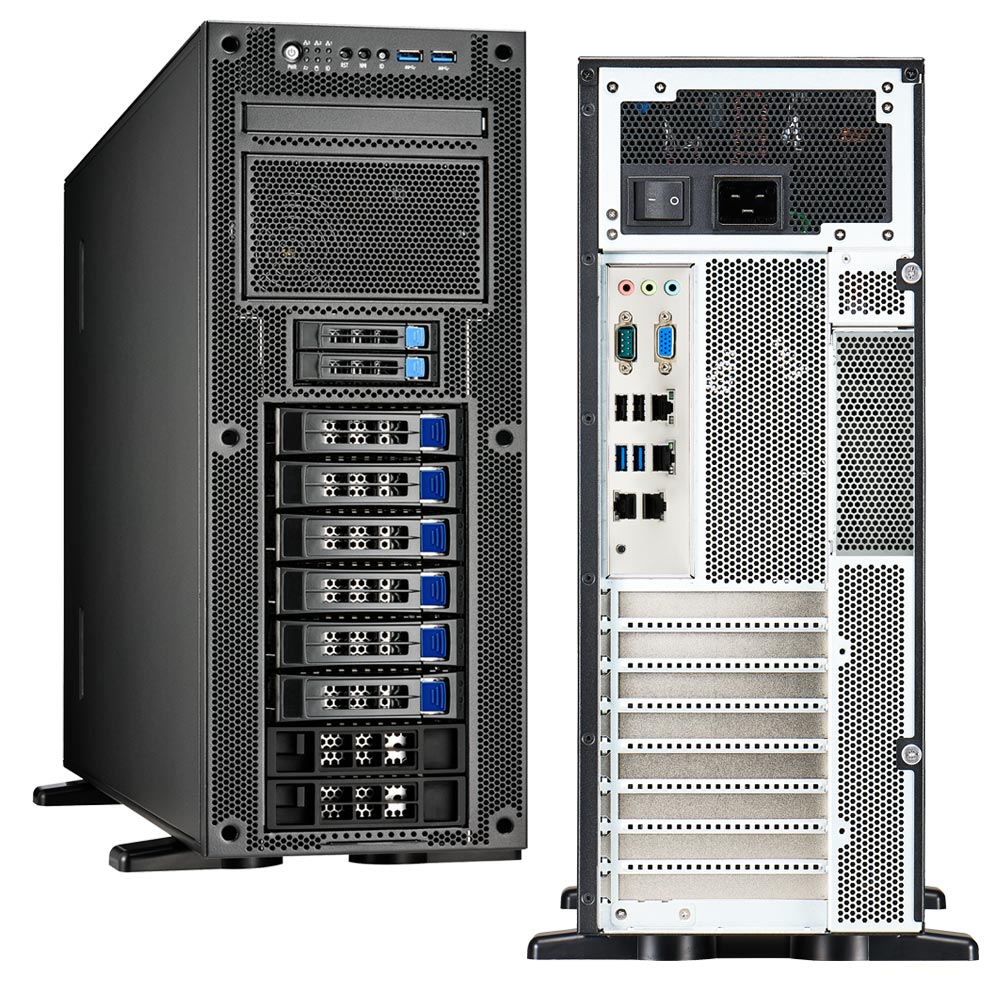

| System | Form Factor 4U Tower
Chassis Model FT65T
Dimension (D x W x H) 25.59" x 17.245" x 6.93" (650 x 438 x 176mm)
Motherboard Name S5652AGMNRE
Board Dimension CEB, 12"x10.5" (305x267mm)
|
Front Panel
| Buttons (1) UID / (1) PWR w/ LED / (1) RST
LEDs (1) HDD / (1) ID / (1) System Event / (2) LAN activity
I/O Ports (2) USB 2.0 ports / (1) USB 3.2 Gen.1 port / (1) COM Port / (1) LAN Port (IPMI) / (1) VGA port / (1) Line in / Line out / MIC |
| External Drive Bay | Q'ty / Type (2) 2.5" Hot-Swap NVMe SSDs / (6) 3.5"/2.5" Hot-Swap SSD/HDDs
Front Drive Bay Interface (2) SATA 6Gb/s / NVMe / (6) SATA 6Gb/s / SAS 12Gb/s
Front Drive Backplane Support SAS 12Gb/s /SATA 6Gb/s /NVMe
Notification The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact MiTAC technical support if a discrete SAS HBA/RAID adapter is required. |
System Cooling Configuration
| Fan (3) 12cm fans
Air Duct Tailored Air Duct |
| Power Supply | Type ATX
Input Range AC 100~240V/15~12A
Frequency 50/60 Hz
Output Watts 1,200 Watts (100-115Vac input) / 1,500 Watts (115-200Vac input) / 2,000 Watts (200-240Vac)
Efficiency 80 plus Gold (200-240Vac) / 80 plus Platinum (100-200Vac)
Redundancy N/A |
| Processor | Q'ty / Socket Type (1) LGA4677
Supported CPU Series 4th Gen. Intel Xeon Scalable Processors / 5th Gen. Intel Xeon Scalable Processors
Thermal Design Power Wattage Max up to 350W (TDP) |
Chipset
| PCH Intel C741
|
Memory
| Supported DIMM Qty (8) DIMM slots
DIMM Type / Speed RDIMM / RDIMM-3DS DDR5 4800 MT/s (1DPC) / 4400 MT/s (2DPC) - 4th Gen. / RDIMM / RDIMM-3DS DDR5 5600 MT/s (1DPC) / 4400 MT/s (2DPC) - 5th Gen.
Capacity Up to 1,024GB RDIMM/ 2,048GB 3DS RDIMM DDR5 5600/4800/4400 /*Follow latest Intel DDR5 Memory POR
Memory channel 8 Channels per CPU
Memory voltage 1.1V
|
Expansion Slots
| PCIe (1) PCIe Gen 5 x8 slot / (4) PCIe Gen 5 x16 slots
|
LAN
| Q'ty / Port (1) GbE port + (1) GbE dedicated for IPMI
Controller Intel I210
PHY Realtek RTL8211F
|
Storage SATA
| Connector (6) SATA
Controller Intel C741
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
|
Storage NVMe
| Connector (M.2) (1) 2280 (by PCIe 3.0 x4)
Connector (U.2) (1) MCIO x8
|
Graphic
| Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600
|
| I/O Ports | USB (2) USB2.0 ports (@ rear) / (2) USB3.2 Gen.1 ports (@ rear)
COM (1) DB-9 COM port
VGA (1) D-Sub 15-pin port
Audio (1) 2x5-pin header
RJ-45 (1) GbE ports + (1) GbE dedicated for IPMI
Button UID Button |
| TPM (Optional) | TPM Support Please refer to our TPM supported list.
Interface SPI |
| System Monitoring | Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
Others Watchdog timer support |
| Server Management | Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS | Brand / ROM size AMI / 32MB
Feature Hardware Monitor / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / SMBIOS 3.3/PnP/Wake on LAN / ACPI sleeping states S0, S5 |
Operating Environment
| Operating Temp. 0° C ~ 40° C (32° F~ 104° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
|
Regulation
| FCC (SDoC) Class B
CE (DoC) Class B
CB/LVD Yes
RCM Yes
BSMI Yes
|
| Operating System | OS supported list Please refer to our AVL support lists. |
| RoHS | RoHS 6/6 Compliant Yes |
| Package Contains | Barebone (1) FT65T-B5652 Barebone
Manual (1) Quick Installation Guide
Others (1) M.2 Card Latch / (2) MCC Carrier / (2) XCC Carrier |
