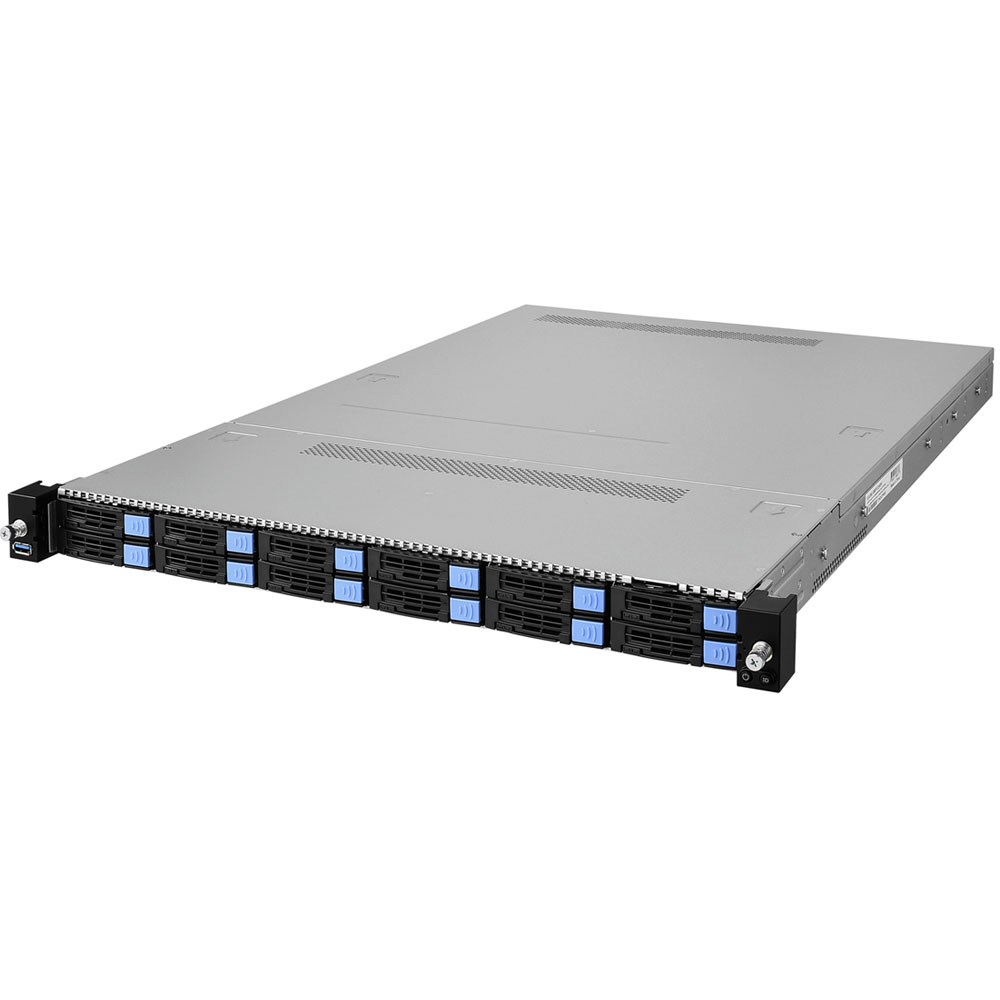

| System | Form Factor 1U Rackmount
Chassis Model GC68C
Dimension (D x W x H) 26.77" x 17.26" x 1.69" (680 x 438.5 x 43mm)
Motherboard Name S8056GM2NE-2T-TU
Board Dimension Prop. 14.18" x 12.16" (360.2 x 308.8mm)
|
Front Panel
| Buttons (1) PWR w/ LED / (1) ID w/ LED
LEDs (1) ID / (1) PWR
I/O Ports (1) USB 3.2 Gen.1 port |
| External Drive Bay | Q'ty / Type (12) 2.5" hot-swap NVMe HDD/SSDs
Front Drive Bay Interface (12) NVMe U.2
Front Drive Backplane Support NVMe |
System Cooling Configuration
| Fan (3) 4028 fans / (3) 4056 fans
Air Duct Tailored Air Duct |
| Power Supply | Type Slim 1U
Input Range AC 100-127V/9.4-7.4A / AC 200-240V/4.8-4A
Frequency 50-60 Hz
Output Watts 860 Watts
Efficiency 80 plus Titanium
Redundancy 1+1
Serviceability Hot-swap |
| Processor | Q'ty / Socket Type (1) AMD Socket SP5
Supported CPU Series (1) AMD EPYC™ 9004 Series Processor / (1) AMD EPYC™ 9005 Series Processor
Thermal Design Power Wattage Max up to 400W* (cTDP) |
Memory
| Supported DIMM Qty (24) DIMM slots
DIMM Type / Speed AMD EPYC™ 9005: RDIMM: Up to 5200 MT/s (1DPC) RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC) / AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s1DPC), 3600 MT/s (2DPC)
Capacity Up to 6,144GB RDIMM/3DS RDIMM DDR5 5200 memory
Memory channel 12 Channels per CPU
Memory voltage 1.1V
|
Expansion Slots
| PCIe (2) PCIe Gen 5 x16 slots
Pre-installed TYAN Riser Card (PCIe Gen.5) (1) M7136G68-L16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Left) / (1) M7136G68-R16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Right)
Others (1) PCIe Gen 5 x16 OCP 3.0 mezzanine slot
|
LAN
| Q'ty / Port (2) 10GbE ports + (1) GbE dedicated for IPMI
Controller Intel X710-AT2
PHY Realtek RTL8211F
|
Storage NVMe
| Connector (M.2) (2) 22110/2280 (by PCIe Gen 4 interface)
Connector (U.2) (6) SFF-TA-1016 (MCIO 8x) for (12) front NVMe
|
Graphic
| Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600
|
I/O Ports
| USB (1) USB3.2 Gen.1 conn. (Type-A) / (1) USB3.2 Gen.1 header / (1) USB3.2 Gen.1 port (@ front) / (2) USB3.2 Gen.1 ports (@ rear)
COM (1) DB-9 COM port
VGA (1) D-Sub 15-pin port
RJ-45 (2) 10 GbE ports + (1) dedicated GbE for IPMI
Button UID Button / Power Button
|
TPM (Optional)
| TPM Support Please refer to our TPM supported list.
Interface SPI
|
System Monitoring
| Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
Others Watchdog timer support
|
Server Management
| Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
|
| BIOS | Brand / ROM size AMI / 64MB
Feature Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0, S5 |
| Operating Environment | Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C |
| Regulation | FCC (SDoC) Class A
CE (DoC) Class A
CB/LVD Yes
VCCI Yes
C-Tick Yes
BSMI Yes |
| Operating System | OS supported list Please refer to our AVL support lists |
| RoHS | RoHS 6/6 Compliant Yes |
| Package Contains | Barebone (1) GC68C-B8056 Barebone
Manual (1) Quick Installation Guide |
