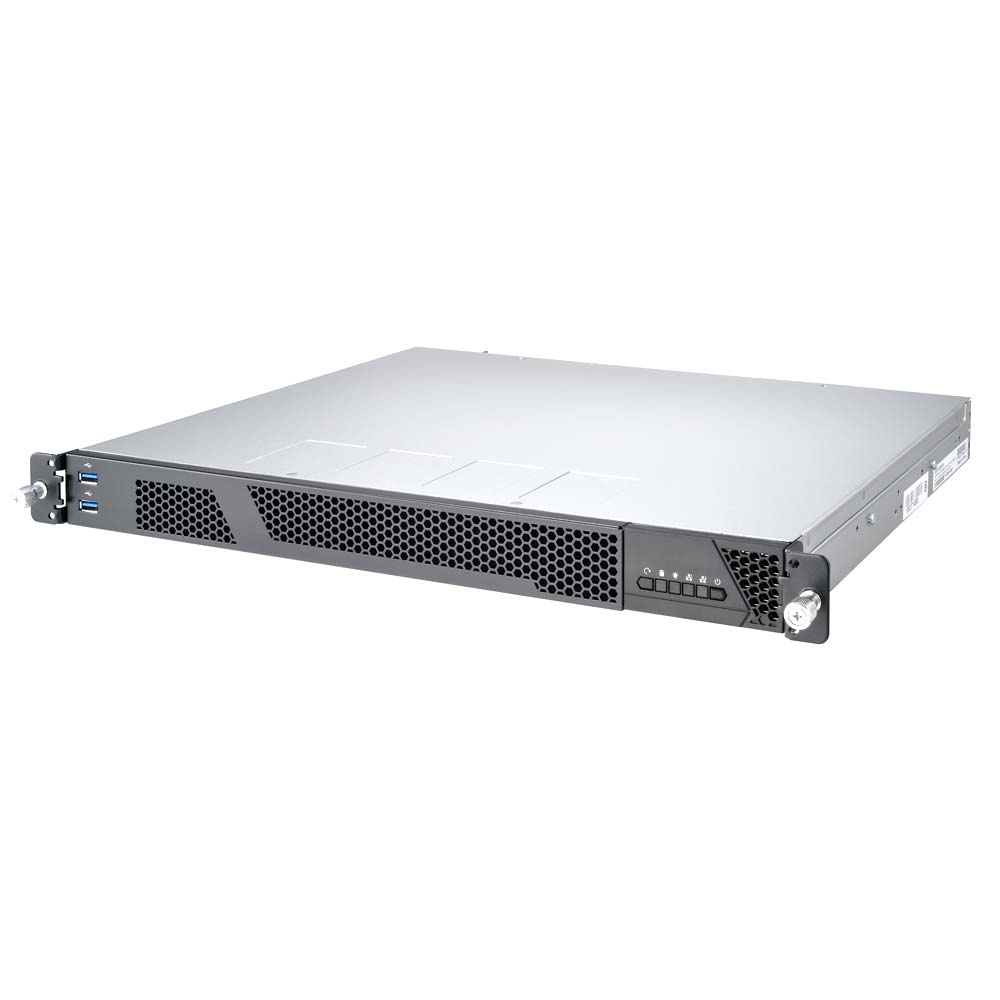

| System | Form Factor 1U Rackmount
Chassis Model GX40
Dimension (D x W x H) 16.1" x 19" x 1.75" (400 x 438.5 x 43.2mm)
Motherboard Name S5573GM3NR-2V-HE
Board Dimension Micro-ATX, 9.6’’x 9.6’’
|
Front Panel
| Buttons (1) PWR / (1) RST
LEDs (1) PWR / (1) HDD / (2) LAN
I/O Ports (2) USB 3.2 Gen.1 ports |
| Internal Drive Bay | Type / Q'ty (2) 2.5" Fixed SSDs / (2) 3.5" Fixed HDDs
Drive Backplane Support SATA 6Gb/s
Supported Drive Interface (4) SATA 6Gb/s |
System Cooling Configuration
| Fan (3) 4028 fans |
| Power Supply | Type PSU
Input Range AC 100-240V/6-3A
Frequency 50/60 Hz
Output Watts 300 Watts
Efficiency 80 plus Gold |
| Processor | Q'ty / Socket Type (1) LGA1700
Supported CPU Series Intel Xeon E-2400 series Processors
Thermal Design Power Wattage Max up to 95W (TDP) |
Chipset
| PCH Intel C266
|
Memory
| Supported DIMM Qty (4) DIMM slots
DIMM Type / Speed DDR5 ECC UDIMM 4800
Capacity Up to 128GB UDIMM
Memory channel 2 Channels per CPU
Memory voltage 1.1V
|
Expansion Slots
| PCIe (1) PCIe Gen 5 x16 slot
|
LAN
| Q'ty / Port (2) 25GbE SFP28 Ports + (1) GbE port + (1) GbE port dedicated for IPMI
Controller Intel I210
PHY Realtek RTL8211FD-CG
|
Storage SATA
| Connector (4) SATA
Controller Intel C266
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
|
Storage NVMe
| Connector (M.2) (2) 22110/2280 (by PCIe Gen 4 interface)
|
Graphic
| Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600 |
| I/O Ports | USB (2) USB2.0 ports / (4) USB3.2 Gen.1 ports
COM (1) DB-9 COM port
VGA (1) D-Sub 15-pin port
RJ-45 (1) GbE ports + (1) GbE dedicated for IPMI
Button UID Button / Power Button / Reset Button |
| TPM (Optional) | TPM Support Please refer to our TPM supported list.
Interface SPI |
| System Monitoring | Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator |
| Server Management | Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
|
| BIOS | Brand / ROM size AMI / 32MB
Feature Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.5/PnP/Wake on LAN / ACPI 6.4 / ACPI sleeping states S0, S5 |
Operating Environment
| Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
|
| Regulation | FCC (SDoC) Class A
CE (DoC) Class A
BSMI Yes |
| Operating System | OS supported list Please refer to our AVL support lists. |
| RoHS | RoHS 2.0 Yes |
| Package Contains | Barebone (1) GX40-B5573 Barebone
Manual (1) Quick Installation Guide |
