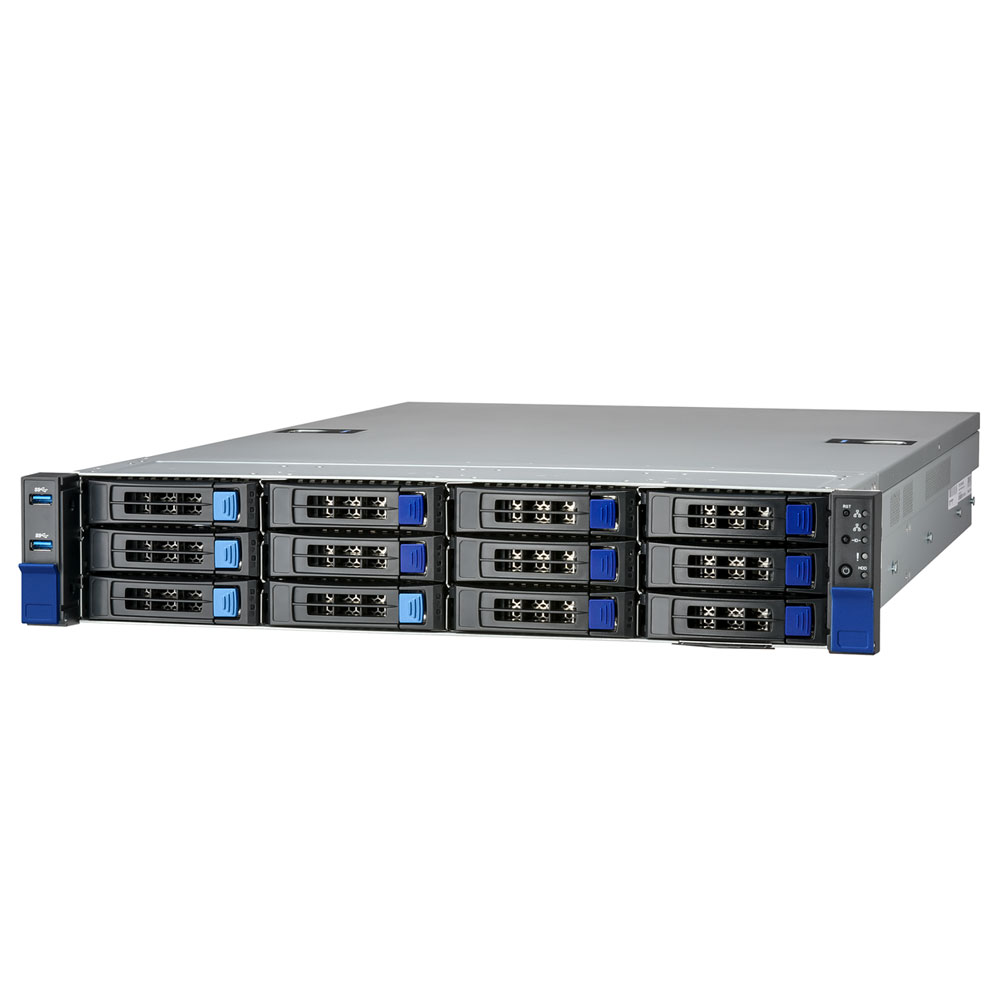

| System | Form Factor 2U Rackmount
Chassis Model TS70
Dimension (D x W x H) 27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm)
Motherboard Name S8056GM2NE-2T-TU
|
Front Panel
| Buttons (1) ID / (1) PWR w/ LED / (1) RST
LEDs (1) HDD / (1) ID / (2) LAN / (1) System Event
I/O Ports (2) USB 3.2 Gen.1 ports |
| External Drive Bay | Q'ty / Type (2) 2.5" Hot-Swap NVMe SSDs / (12) 3.5"/2.5" Hot-Swap HDD/SSDs w/ (4) NVMe
Front Drive Bay Interface (12) SATA 6Gb/s with (4) NVMe ports
Front Drive Backplane Support NVMe / SATA 6Gb/s
Rear Drive Bay Interface (2) NVMe
Rear Drive Backplane Support NVMe |
System Cooling Configuration
| Fan (3) hot-swap 8056 fans
Redundancy Yes |
| Power Supply | Type CRPS
Input Range AC 100-127V/12A / AC 200-240V/8.5A
Frequency 50/60 Hz
Output Watts 1,300 Watts
Efficiency 80 plus Titanium
Redundancy 1+1 |
| Processor | Q'ty / Socket Type (1) AMD Socket SP5
Supported CPU Series (1) AMD EPYC™ 9004 Series Processor / (1) AMD EPYC™ 9005 Series Processor
Thermal Design Power Wattage Max up to 400W* (cTDP) |
| Memory | Supported DIMM Qty (24) DIMM slots
DIMM Type / Speed AMD EPYC™ 9005: RDIMM: Up to 5200 MT/s (1DPC) RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC) / AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s1DPC), 3600 MT/s (2DPC)
Capacity Up to 6,144GB RDIMM/3DS RDIMM DDR5 5200 memory
Memory channel 12 Channels per CPU
Memory voltage 1.1V
|
Expansion Slots
| PCIe (1) PCIe Gen 5 x8 slot / (2) PCIe Gen 5 x16 slots
Pre-installed TYAN Riser Card (PCIe Gen.5) (1) M7136T70-R24-2F riser card for (2) FH/HL PCIe 5.0 x16 slots / (1) M7136T70-L28-1F riser card for (1) FH/HL PCIe 5.0 x8 slot
Others (1) PCIe Gen 5 x16 OCP 3.0 mezzanine slot
|
LAN
| Q'ty / Port (2) 10GbE ports + (1) GbE dedicated for IPMI
Controller Intel X710-AT2
PHY Realtek RTL8211F
|
Storage SATA
| Connector (2) SFF-TA-1016
Controller Direct from AMD EPYC CPU
Speed 6Gb/s
RAID N/A
|
Storage NVMe
| Connector (M.2) (2) 22110/2280 (by PCIe Gen 4 interface)
Connector (U.2) (3) SFF-TA-1016 (MCIO 8x) for (6) front NVMe
|
Graphic
| Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600
|
I/O Ports
| USB (1) USB3.2 Gen.1 conn. (Type-A) / (1) USB3.2 Gen.1 header / (2) USB3.2 Gen.1 ports (@ front) / (2) USB3.2 Gen.1 ports (@ rear)
COM (1) DB-9 COM port
VGA (1) D-Sub 15-pin port
RJ-45 (2) 10 GbE ports + (1) dedicated GbE for IPMI
Button ID Button / Power Button / Reset Button
|
TPM (Optional)
| TPM Support Please refer to our TPM supported list.
Interface SPI
|
System Monitoring
| Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
Others Watchdog timer support
|
| Server Management | Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS | Brand / ROM size AMI / 64MB
Feature Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0, S5 |
| Operating Environment | Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) |
| Regulation | FCC (SDoC) Class A
CE (DoC) Class A
CB/LVD Yes
RCM Yes
VCCI Yes
BSMI Yes |
| Operating System | OS supported list Please refer to our AVL support lists. |
| RoHS | RoHS 6/6 Compliant Yes |
| Package Contains | Barebone (1) TS70-B8056 Barebone
Manual (1) Quick Installation Guide |
