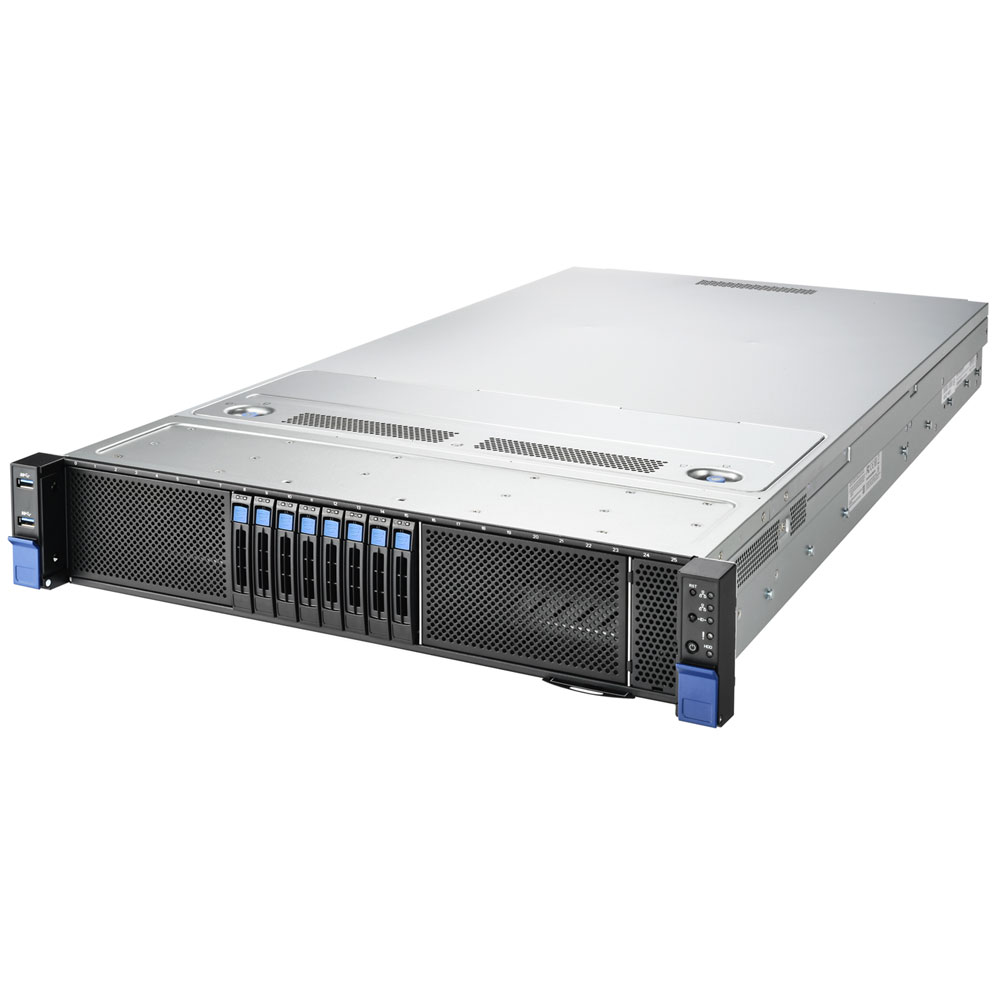

| System | Form Factor 2U Rackmount
Chassis Model TN85
Dimension (D x W x H) 33.46" x 17.63" x 3.43" (850 x 448 x 87mm)
Motherboard Name S8261GM2NE-2T #
Motherboard Notification # The motherboard not sold separately
|
Front Panel
| Buttons (1) PWR w/ LED / (1) UID / (1) RST
LEDs (1) ID / (2) LAN / (1) Warning
I/O Ports (2) USB 3.2 Gen.1 ports |
| External Drive Bay | Q'ty / Type (8) 2.5" Hot-Swap NVMe
Front Drive Bay Interface (8) NVMe U.2
Front Drive Backplane Support NVMe |
System Cooling Configuration
| Fan (6) 6cm hot-swap middle fans + (2) 6cm easy-swap rear fans |
| Power Supply | Type CRPS
Input Range AC 100-127V/14A / AC 200-240V/15.5A
Frequency 50/60 Hz
Output Watts 2,700 Watts
Efficiency 80 plus Titanium
Redundancy 1+1
Serviceability Hot-swap |
| Processor | Q'ty / Socket Type (2) AMD Socket SP5
Supported CPU Series (2) AMD EPYC™ 9004/9005 Series Processors
Thermal Design Power Wattage Max up to 500W* (TDP) |
Memory
| Supported DIMM Qty (12)+(12) DIMM slots
DIMM Type / Speed 3DS RDIMM DDR5 6000MHz / RDIMM DDR5 6000MHz
Capacity Up to 6,144GB RDIMM DDR5 6000 memory
Memory channel 12 Channels per CPU
Memory voltage 1.1V
|
Expansion Slots
| PCIe (6) PCIe Gen 5 x16 slots
Pre-installed TYAN Riser Card (PCIe Gen.5) (1) M8261T85-LR32-2L riser card for (2) HH/HL PCIe 5.0 x16 slots / (1) M8261T85-L32T-2F riser card for (2) FH/FL PCIe 5.0 x16 slots / (1) M8261T85-R32T-2F riser card for (2) FH/FL PCIe 5.0 x16 slots
|
LAN
| Q'ty / Port (2) 10GbE ports + (1) GbE dedicated for IPMI
Controller Intel X550-AT2
PHY Realtek RTL8211F
|
Storage NVMe
| Connector (U.2) (4) SFF-TA-1016 (MCIO 8x) for (8) front NVMe
|
Graphic
| Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600
|
I/O Ports
| USB (2) USB3.2 Gen.1 ports (@ front) / (2) USB3.2 Gen.1 ports (@ rear)
VGA (1) D-Sub 15-pin port
RJ-45 (2) 10 GbE ports + (1) dedicated GbE for IPMI
Button ID Button / Power Button / Reset Button
|
TPM (Optional)
| TPM Support Please refer to our TPM supported list.
Interface SPI
|
System Monitoring
| Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
|
| Server Management | Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS | Brand / ROM size AMI / 32MB
Feature Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.5/PnP/Wake on LAN / ACPI 6.4 / ACPI sleeping states S0, S5 |
| Operating Environment | Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C |
| Regulation | FCC (SDoC) Class A
CE (DoC) Class A |
| Operating System | OS supported list Please refer to our AVL support lists. |
RoHS
| RoHS 6/6 Compliant Yes
|
