| Main Specifications |

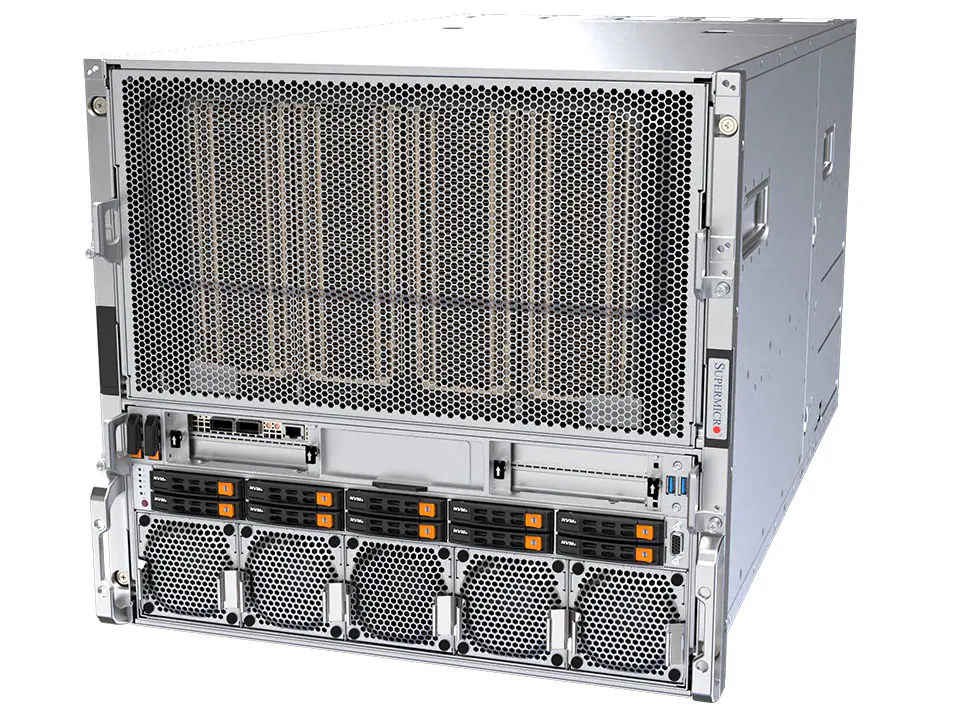

| Device Type | DP Intel 10U System with NVIDIA HGX B200 8-GPU |
| Built-in Devices | SYS-A21GE-NBRT-G1 |
| Form Factor | 10U Rackmount |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 29.4" (747 mm) |
| Weight | Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg) |
| GPU |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| Processor |
| Processor | Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| System Memory |
| Memory | Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays |
| Hard Drive | 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110; VROC required for RAID) |
| On-Board Devices |
| Network Connectivity | 2 RJ45 10GbE |
| Chipset | System on Chip |
| Input / Output |
| TPM | 1 TPM header |
| USB(s) | 2 USB 3.0 Type-A ports(Front) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
