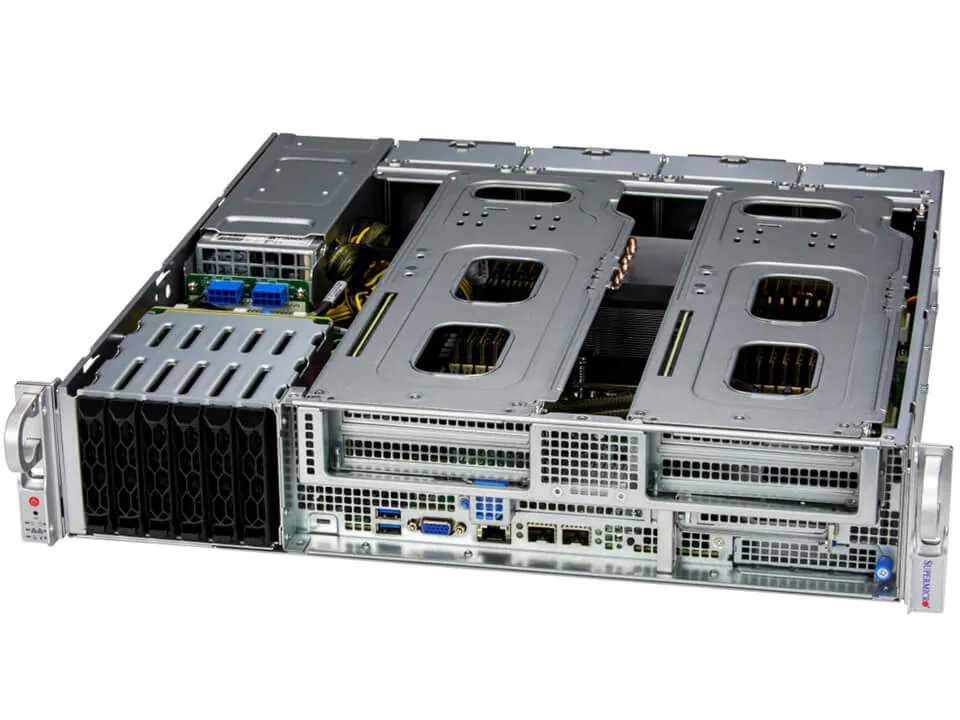

NTS Elite Command 2U Server Ampere Altra ARM MegaDC Platform
2U UP MegaDC with double-width GPU support + 6 hot-swap 2.5" NVMe drives
Single Socket Ampere® Altra® Processor (Up to 80 Cores; Up to 3.3Ghz) / Single Socket Ampere® Altra® Max Processor (Up to 128 Cores; Up to 3.0Ghz) ; Up to 250W TDP. 16 DIMMs; Up to 4TB ECC Registered DDR4-3200MHz RDIMM/LRDIMM. Supports 1 PCIe 4.0 x16 Double Wide FPFL GPU Card (or 1 PCIe 4.0 x16 FPFL Single Slot and 1 PCIe 4.0 x8 FPFL Single Slot), 1 PCIe 4.0 x16 FPHL Slot, 1 PCIe 4.0 x8 FPHL Slot, 1 PCIe 4.0 x16 LP Slot, 1 AIOM Slot (OCP3.0 Mezzanine Compatible). 2x 25Gb LAN SFP28 Ports via Mellanox ConnectX®-4 Lx EN Controller. 6x 2.5" U.2 NVMe Hot-Swap Drive Bays. 1000W Redundant Titanium Level High-efficiency Power Supplies. 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear).
Core Technology Aligned with Aspirations
- Single Socket Ampere® Altra® Processor (Up to 80 Cores; Up to 3.3Ghz) / Single Socket Ampere® Altra® Max Processor (Up to 128 Cores; Up to 3.0Ghz) ; Up to 250W TDP
- 16 DIMMs; Up to 4TB ECC Registered DDR4-3200MHz RDIMM/LRDIMM
- Supports 1 PCIe 4.0 x16 Double Wide FPFL GPU Card (or 1 PCIe 4.0 x16 FPFL Single Slot and 1 PCIe 4.0 x8 FPFL Single Slot), 1 PCIe 4.0 x16 FPHL Slot, 1 PCIe 4.0 x8 FPHL Slot, 1 PCIe 4.0 x16 LP Slot, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
- 2x 25Gb LAN SFP28 Ports via Mellanox ConnectX®-4 Lx EN Controller
- 6x 2.5" U.2 NVMe Hot-Swap Drive Bays
- 1000W Redundant Titanium Level High-efficiency Power Supplies
- 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
High Performance
2U UP MegaDC with double-width GPU support
Supports 1 PCIe 4.0 x16 Double Wide FPFL GPU Card (or 1 PCIe 4.0 x16 FPFL Single Slot and 1 PCIe 4.0 x8 FPFL Single Slot), 1 PCIe 4.0 x16 FPHL Slot, 1 PCIe 4.0 x8 FPHL Slot, 1 PCIe 4.0 x16 LP Slot, 1 AIOM Slot (OCP3.0 Mezzanine Compatible). 2x 25Gb LAN SFP28 Ports via Mellanox ConnectX®-4 Lx EN Controller.
Power Supply
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies.
System Cooling
Up to 4 Heavy Duty 8cm Fan(s). 1 Air Shroud.
Drive Bays / Storage
Default: Total 6 bays. 6 front hot-swap 2.5" NVMe drive bays. 1 M.2 NVMe slot (M-key 22110).
Expansion Slots
2 PCIe 4.0 x8 FHFL slots, 1 PCIe 4.0 x16 FHFL slot, 1 PCIe 4.0 x16 LP slot, 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible).
Input / Output
2 SFP28 25 GbE LAN ports, 1 RJ45 1 GBASE-T Dedicated BMC LAN port, 2 USB 3.0 ports(front), 1 VGA port, 1 serial port.
Operating Environment
RoHS Compliant. Operating Temperature: 10°C to 35°C. Non-operating Temperature: -40°C to 60°C. Operating Relative Humidity: 8% to 90%. Non-operating Relative Humidity: 5% to 95%.
Value-added Management
Management Console
- ACPI/APM Power Management
- PC Health Monitoring: CPU, FAN, Temperature
Server Management
Support for Intelligent Platform Management Interface v.2.0 and IPMI 2.0 with virtual media over LAN and KVM-over-LAN support.
- Monitors for CPU Cores, Chipset Voltages, Memory
- Fans with tachometer monitoring, PWM fan connectors, status monitor for speed control
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
