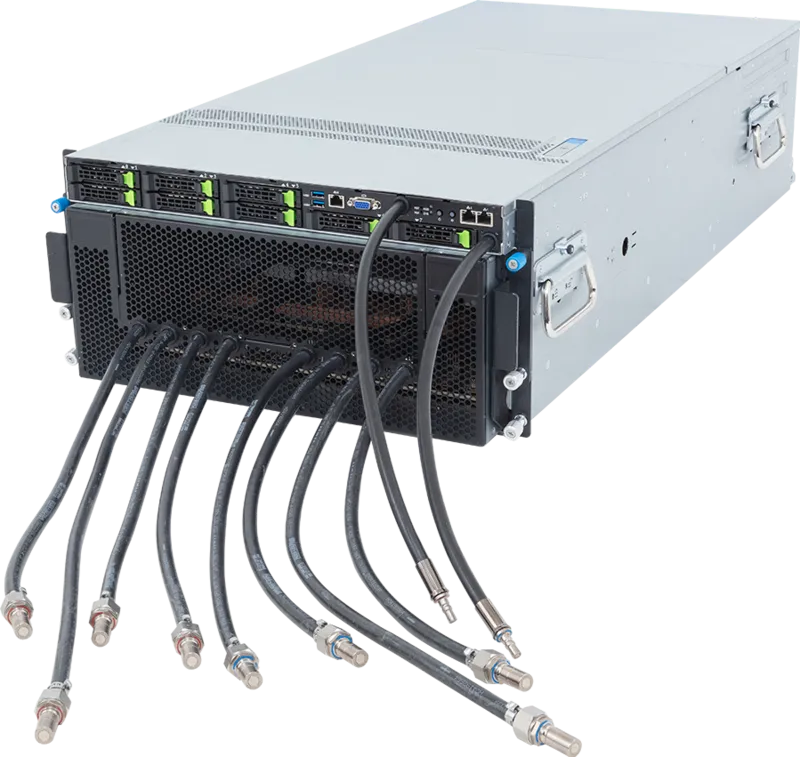

GIGABYTE G593-ZX1-LAX1

5U HPC/AI Server with dual AMD EPYC 9004 CPUs and 8x AMD Instinct MI300X GPUs, engineered for AI training, inference, and high-performance computing with direct liquid cooling.
  • Liquid-cooled 8 x AMD Instinct™ MI300X OAM GPUs
  • CPU+GPU direct liquid cooling solution with leak detection
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
  • 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4 x FHHL PCIe Gen5 x16 slots
  • 8 x LP PCIe Gen5 x16 slots
  • 4+2 3000W 80 PLUS Titanium redundant power supplies

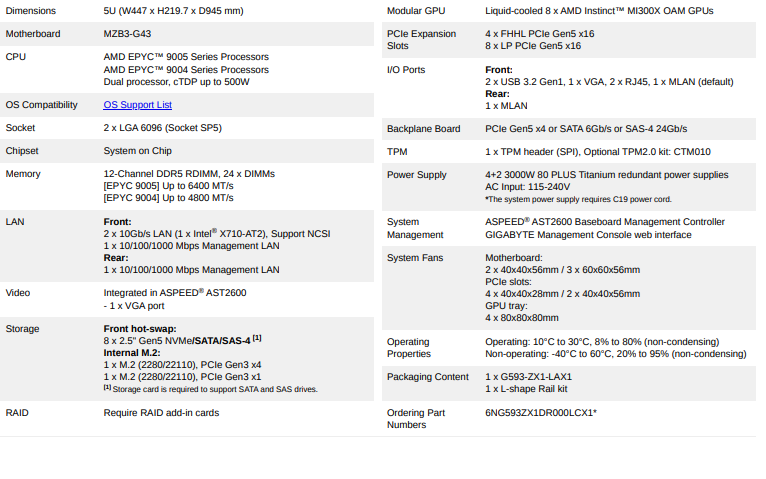

Configure & Buy Features Specifications

GIGABYTE G593-ZX1-LAX1 GPU Server



                          High performant servers built for AMD Instinct™ MI300 Series



GIGABYTE has created and tailored powerful, passive cooling servers for the AMD Instinct™ MI300 Series accelerators, and this includes the OAM form factor like its predecessor, the MI250 GPU. The new AMD Instinct MI300 series accelerators have been engineered for two platforms, the MI300X GPU that is an OAM module housed in GIGABYTE 5U G593 Series servers, and the MI300A APU that comes in a LGA socketed design with four sockets in the GIGABYTE G383 Series.





                              5th Generation AMD EPYC™ Processors for SP5 Socket







 Key Platform Highlights



  • 3nm architecture-Increased transistor density alongside a reduction in power consumption
  • Up to 192 CPU cores-Dedicated “Zen 5” & “Zen 5c” cores increase compute density
  • Up to 512MB L3 cache-An L3 cache increase helps to reduce latency in data-intensive operations
  • 12 channels-Memory capacity up to 9TB in a 2 DIMM per channel configuration
  • Up to 160 PCIe lanes-Dual socket configuration adds a significant amount of I/O connectivity
  • CXL 2.0 support-Disaggregated compute architecture possible via Compute Express Link





Why Choose GIGABYTE Liquid Cooling Servers?





Cool Performance



Servers will run incredibly stable and have high-performance from liquid cooled components that operate well below CPU TDP.

Power Saving



A liquid cooled server with less fans and running at lower speeds can achieve the same performance as an air-cooled server while consuming less power.

Noise Reduction



Servers require a lot of high-speed, high noise fans. GIGABYTE has found a way to reduce the noise by reducing the number of fans while using a liquid cooling solution.

Proven Track Record



The direct liquid cooling system supplier has 20 years of experience in cooling solutions for desktops PCs & data centers. GIGABYTE has 20+ years of experience as well.

Reliability



Liquid cooling solutions can be monitored with little need for maintenance. GIGABYTE and liquid cooling suppliers have warranties to cover components.

Ease of Use



GIGABYTE servers paired with a liquid cooling kit can be mounted in a rack or connected to a building’s water system. And offers quick/easy/dry disconnects.



             G4L3‑ZD1‑LAX5 GPU Server

High Performance



Supports AMD Instinct MI300X Accelerators

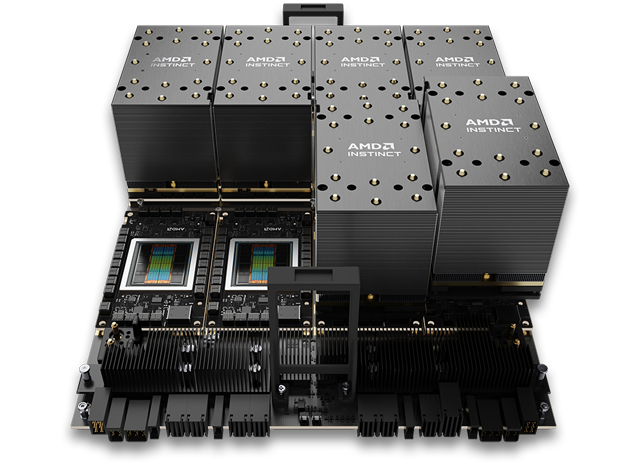

The AMD Instinct MI300X Platform integrates 8 fully connected MI300X GPU OAM modules onto an industry-standard OCP design via 4th-Gen AMD Infinity Fabric™ links, delivering up to 1.5TB HBM3 capacity for low-latency AI processing. This ready-to-deploy platform can accelerate time-to-market and reduce development costs when adding MI300X accelerators into existing AI rack and server infrastructure.







Power Efficiency



Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

User Friendly



Tool-less Drive Bays Design
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.

High Availability
Smart Ride Through (SmaRT)



To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.

Hardware Security
Optional TPM 2.0 Module



For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Smart Crises Management and Protection (SCMP)



SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.

Dual ROM Architecture



If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.



Value-added Management

GIGABYTE Management Console

  • For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface.



  • Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface



  • Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions



  • Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters

GIGABYTE Server Management (GSM)



GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from the GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster.
  • GSM CLI: A command-line interface for monitoring and managing remotely.
  • GSM Agent: Installed on each GIGABYTE server node to retrieve system and device information through the OS, integrating with GSM Server or CLI.
  • GSM Mobile: A mobile app for Android and iOS that provides admins with real-time system information.
  • GSM Plugin: An API that allows users to use VMware vCenter for real-time monitoring and management of server clusters.





OPERATING SYSTEM
