GIGABYTE R283-ZF0-IAL1

2U rack server powered by AMD EPYC 9005/9004 CPUs, supports 4× PCIe Gen5 GPUs and immersion cooling—ideal for AI training, inference, HPC, and hybrid cloud workloads.
  • Immersion Cooling Server
  • Supports up to 4 x Dual slot Gen5 GPUs
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 bays
  • 4 x 3.5"/2.5" SATA/SAS-4 bays
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • Dual 2700W 80 PLUS Titanium redundant power supply

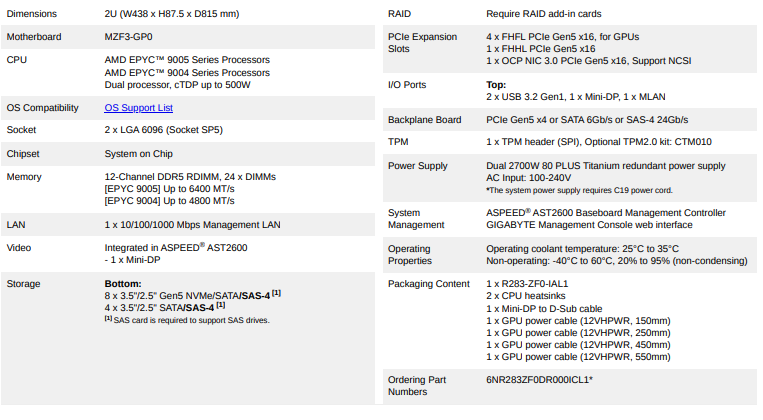

Configure & Buy Features Specifications

GIGABYTE R283-ZF0-IAL1 Rack Server



                AMD EPYC™ Family of Processors - Same Great SP5 Platform



Intel’s 4th and 5th Gen Xeon® Scalable processors represent a transformative leap in compute performance, purpose-built for the evolving demands of AI, deep learning, and enterprise workloads. These processors feature built-in AI acceleration engines and specialized accelerators for networking, storage, and analytics—empowering businesses to drive innovation and efficiency at scale.

With support for PCIe 5.0, the platform doubles I/O throughput compared to the previous generation, enabling faster data movement between GPUs and storage. The Intel® Xeon® CPU Max Series, equipped with High Bandwidth Memory (HBM), delivers exceptional performance for memory-bound HPC and AI applications.

GIGABYTE complements this cutting-edge platform with a full range of servers optimized for Intel Xeon CPUs, supporting PCIe Gen5 accelerators, Gen5 NVMe storage, and high-speed DDR5 memory—ensuring maximum performance, scalability, and reliability for modern data centers.





                         5th Generation AMD EPYC Processors for SP5 Socket







 Key Platform Highlights



  • 3nm architecture-Increased transistor density alongside a reduction in power consumption
  • Up to 192 CPU cores-Dedicated “Zen 5” & “Zen 5c” cores increase compute density
  • Up to 512MB L3 cache-An L3 cache increase helps to reduce latency in data-intensive operations
  • 12 channels-Memory capacity up to 9TB in a 2 DIMM per channel configuration
  • Up to 160 PCIe lanes-Dual socket configuration adds a significant amount of I/O connectivity
  • CXL 2.0 support-Disaggregated compute architecture possible via Compute Express Link





High Performance



Servers and motherboards by GIGABYTE are tested to ensure peak performance for demanding workloads while supporting the latest GPU and CXL technology.

Compute Density



With 192 CPU cores per socket, GIGABYTE's 4-node servers support up to 1,536 CPU cores, allowing a far greater number of concurrent tasks to be done.

Fast & Stable Connectivity



Keeping pace with the challenges for next gen technology, well designed GIGABYTE boards provide users the signal integrity for fast PCIe 5.0 speeds.

Collaboration



AMD and GIGABYTE have maintained a healthy relationship that values shared knowledge and open communication in order to launch products in tandem.

Optimal Price



Our broad portfolio of products tailored to applications allow customers to only select server features the at a lower TCO.







Optional TPM 2.0 Module



For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.







G4L3‑ZD1‑LAX5 GPU Server

High Performance

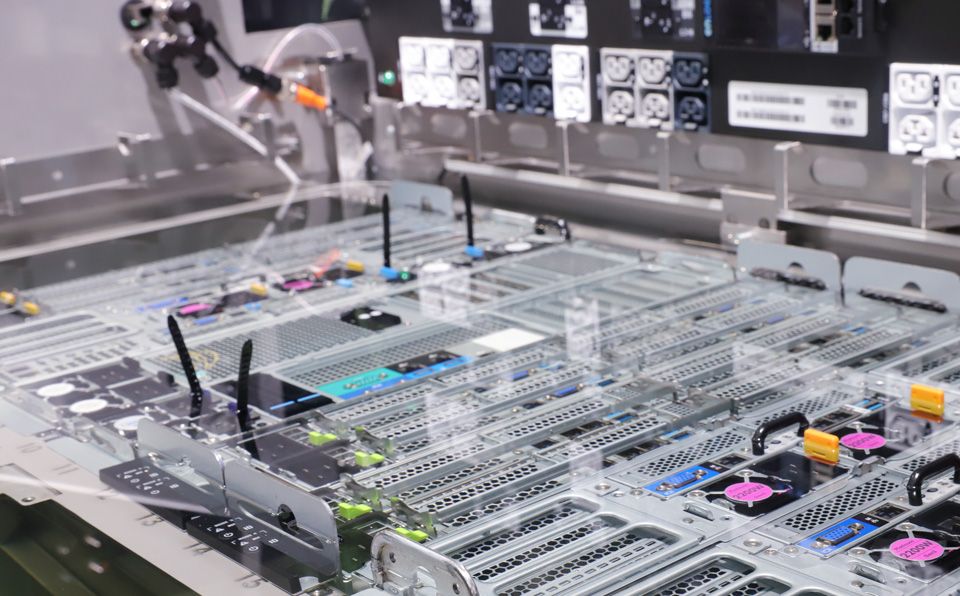

Servers Designed for Immersion Cooling



Specifically designed for immersion cooling solutions, and can be directly installed in GIGABYTE immersion cooling tanks or compatible with mainstream cooling tanks on the market. Eliminate the need for product compatibility testing and customization. These systematic modifications greatly reduce the time for verification and adoption of immersion cooling technology.

Servers Designed for Immersion Cooling



Design to Ensure Steady Fluid Flow in the Tank



When a server is submerged in a coolant, an important condition is that the fluid is circulated well, and the warm fluid is pumped out as cooler fluid is pumped in. Only by maintaining a stable coolant flow can the heat absorbed by the fluid be managed, and the system can automatically adjust the coolant flow rate according to the operation needs. To ensure efficient heat removal, the server design for single-phase immersion cooling not only must remove any components that negatively affect the fluid flow in the system, but they also must reduce the dead space in the chassis to avoid heat accumulation. Based on the viscosity of the coolant and the specific heat capacity of the coolant, the heat dissipation rate of the server must be constantly monitored and adjusted to avoid issues . Servers developed for single-phase immersion cooling can significantly reduce unnecessary barriers that users may encounter when adopting new technologies, allowing them to focus on productivity





Structural Integrity and Simplified Management


Servers must be installed vertically in the tank, and this lowering or raising of servers is due to an optimized tank design for single-phase immersion cooling. Therefore, the server installed upright needs to have rigid and firm structural integrity to ensure the chassis will not deform. Also, due to the vertical design, the cable routing and maintenance are also different than traditional data centers. Therefore, we re-examine the design and strengthen the server chassis for immersion cooling and reroute the cables. For instance, I/O ports are all arranged on the rear side facing up, and the network cables need to be rerouted to the sides so that maintenance can be quick and easy. Also, to make it more convenient for IT to install or remove a server, a bracket was added to allow hooks to move the server.







Made with Materials Suitable for Various Coolants


Single-phase immersion cooling submerges the server in a cooling fluid that removes heat by directly coming into contact with the heating elements. GIGABYTE had to evaluate how the chemical composition of the coolant may affect the components as well as the effect of the temperature and process on the coolant. Through theory and experimental experience, we perfected the design and will continue to explore materials that are suitable for immersion cooling.





OCP 3.0 Ready



GIGABYTE offers servers that feature an onboard OCP NIC 3.0 slot for the next generation of add on cards. Advantages of this new type include:

Easy Serviceability:
Simply slot in or pull out the card, without opening the server or using tools
Improved thermal design:
Horizontal position and optimal heat sink design allow for air cooling to eliminate the heat efficiently

Certified Ready with Software Partners



Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

High Availability
Smart Ride Through (SmaRT)



To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.

Smart Crises Management and Protection (SCMP)



SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.

Dual ROM Architecture



If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.









Value-added Management

GIGABYTE Management Console

  • For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface.



  • Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface



  • Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions



  • Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters

GIGABYTE Server Management (GSM)



GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from the GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster.
  • GSM CLI: A command-line interface for monitoring and managing remotely.
  • GSM Agent: Installed on each GIGABYTE server node to retrieve system and device information through the OS, integrating with GSM Server or CLI.
  • GSM Mobile: A mobile app for Android and iOS that provides admins with real-time system information.
  • GSM Plugin: An API that allows users to use VMware vCenter for real-time monitoring and management of server clusters.





OPERATING SYSTEM
NTS AI Stack See what's inside each NTS AI package
Call for pricing
