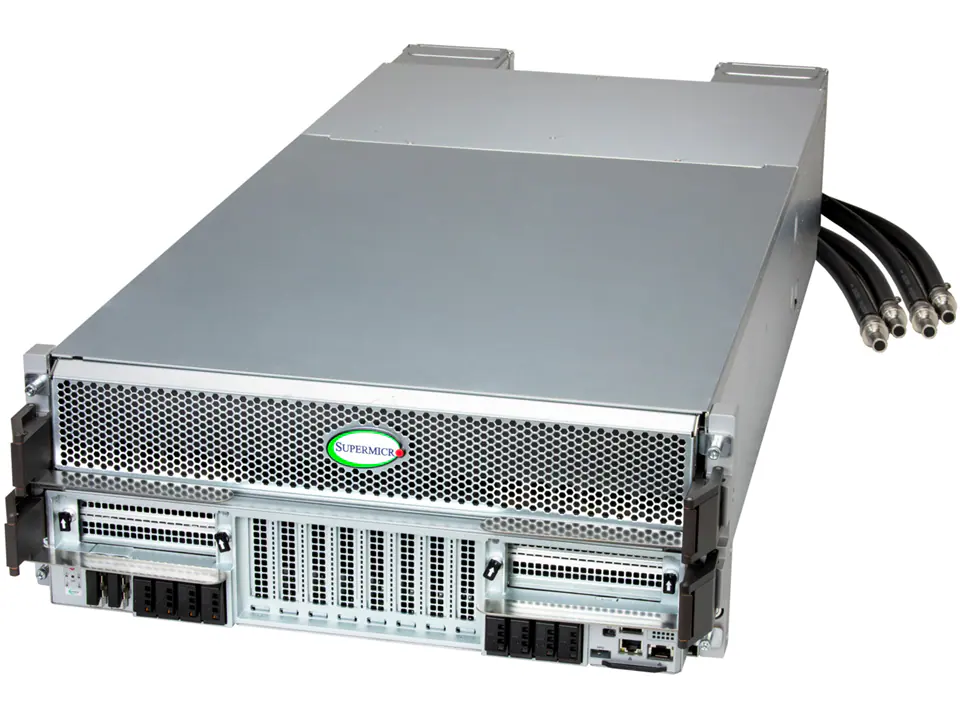

| Form Factor | 4U Rackmount
Enclosure: 448 x 174 x 991.4mm (17.6" x 6.85" x 39.03")
Package: 1395 x 410 x 795mm (54.92" x 16.14" x 31.29") |
Processor
| Dual Socket E2 (LGA-4710)
Intel® Xeon® 6700-series processors with P-cores |
| GPU | Max GPU Count: 8 onboard GPUs
Supported GPU: NVIDIA SXM: HGX B200 8-GPU (180GB)
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ |
| System Memory | Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 8 bays
8 front hot-swap E1.S NVMe drive bays
M.2: 2 M.2 NVMe slots (M-key; RAID support via S3808N controller) |
| Expansion Slots | Default
8 PCIe 5.0 x16 LP slots
2 PCIe 5.0 x16 FHHL slots |
On-Board Devices
| Chipset: System on Chip
Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2
|
Input / Output
| 1 VGA port(Front)
1 Mini-DP port(Front)
|
System Cooling
| Fans: Up to 6 Fan 80mm Fan(s)
Liquid Cooling: Direct to Chip (D2C) Cold Plate
|
Power Supply
| 4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 64MB UEFI
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro ThinAgent Service (TAS); SuperServer Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
8+4 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 280 lbs (127 kg)
Net Weight: 236 lbs (107 kg)
Available Color: Silver
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
