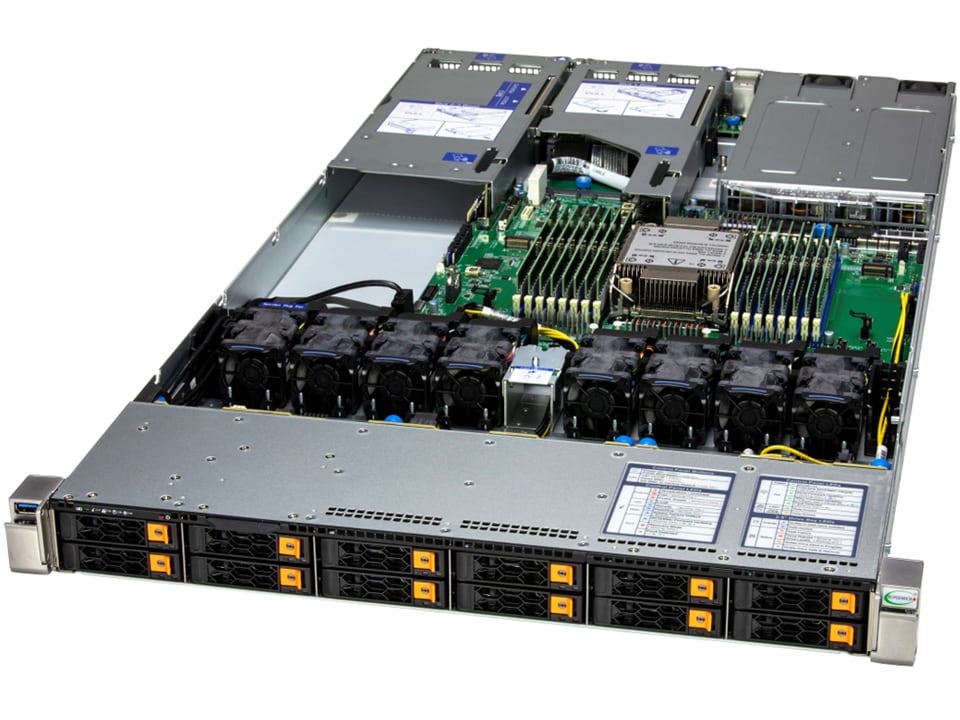

| Form Factor | 1U Rackmount
Enclosure: 437 x 43 x 778.7mm (17.2" x 1.7" x 30.66")
Package: 672 x 224 x 1100mm (26.46" x 8.82" x 43.31") |
Processor
| Single Socket E2 (LGA-4710)
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
P-cores: Up to 86C/172T; Up to 336MB Cache
E-cores: Up to 144C/144T; Up to 108MB Cache |
| GPU | Max GPU Count: Up to 1 double-width or 3 single-width GPUs
Supported GPU: NVIDIA PCIe: L40S, L4
Intel PCIe: Intel Data Center GPU Flex 170
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect |
System Memory
| Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 8 bays
8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays
8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
4 front hot-swap 2.5" SAS*/SATA* drive bays
Option B: Total 12 bays
12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts
list for details)
M.2: 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID) |
| Expansion Slots | Default
1 PCIe 5.0 x16 (in x16) FHHL slot
1 PCIe 5.0 x16 (in x16) FHFL double-width slot
1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
Option A*
1 PCIe 5.0 x16 (in x16) FHHL slot
2 PCIe 5.0 x16 (in x16) FHFL slots
1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) |
On-Board Devices
| NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset: System on Chip
Network Connectivity: Via AIOM
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.2 Gen1 ports(Rear)
1 USB 3.2 Gen1 port(Front)
Video: 1 VGA port
|
System Cooling
| Fans: Up to 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud: 1 CPU Air Shroud
|
Power Supply
| 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 64MB SPI Flash
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro ThinAgent Service (TAS); SuperServer Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 41.4 lbs (18.8 kg)
Net Weight: 19.2 lbs (8.7 kg)
Available Color: Silver
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
