;MiTAC D50DNP2MFALAC Server System Specs - RackmountNTS

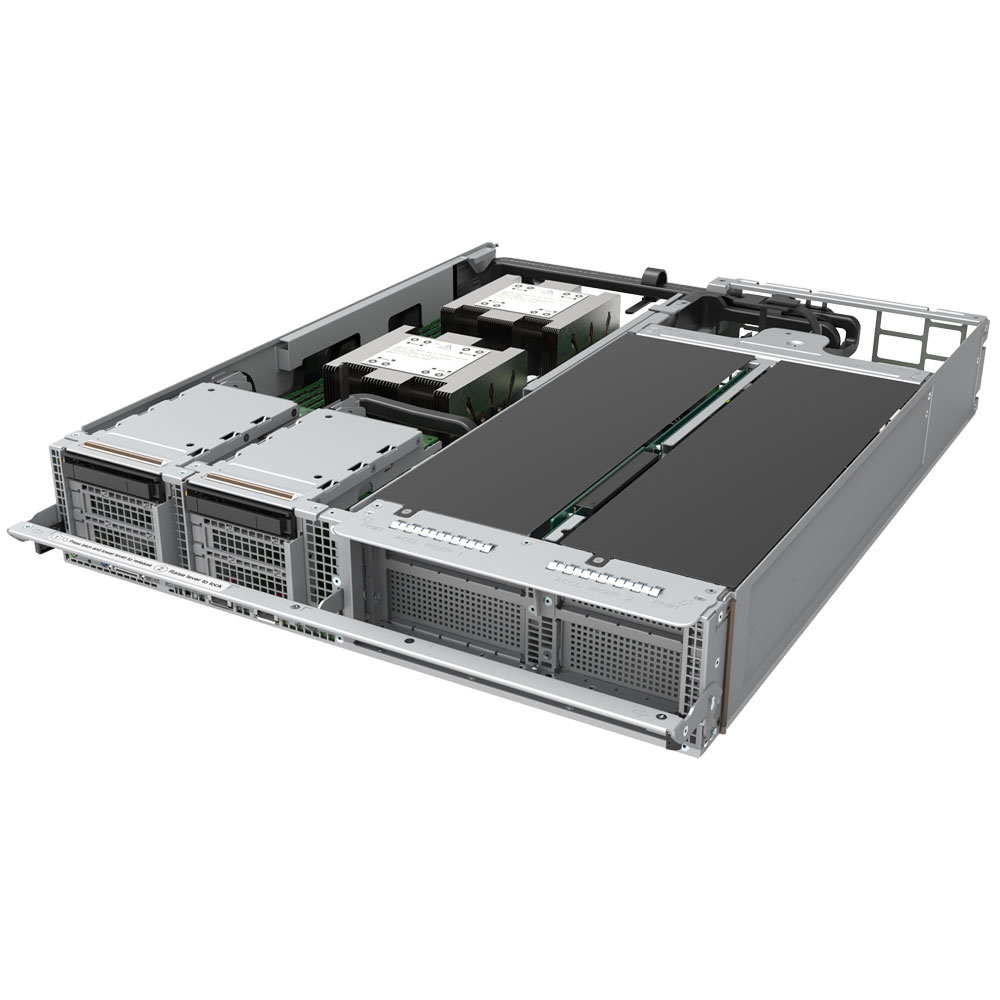

MITAC 2U Intel Server System D50DNP2MFALAC (D50DNP)

2U Full-Width PCIe 5.0 accelerator module with standard air-cooled
  • Up to 350W 2 5th/4th Gen Intel® Xeon® Scalable processors or Intel® Xeon® CPU Max Series
  • 8+8 DDR5 DIMMs @ 5600(5th Gen) / 4800(4th Gen) MT/s
  • 4 LP PCIe Gen 5, 4 FHFL double-width cards support
  • 2 2.5" hot-swap U.2 NVMe and 2 NVMe/SATA M.2
  • Up to 400Gbps network card support
  • 1 10GBase-T LAN and 1 1000Base-T dedicated IPMI ports
  • 2U one node, standard air-cooled
  • 4 Intel Data Center GPU Max support
  • 2700W PSU, 80+ Titanium

Configure & Buy Features Specifications

Exceptional HPC performance starts here



                  Where is the most important place to boost performance in an HPC platform?Everywhere.



If you need to accelerate your HPC workloads,the Intel® Server D50DNP Family is the right platform for you. The Intel®
Server D50DNP Family is the highest-performing HPC platform from Intel, significantly raising the bar for responsiveness
to maximize your HPC and AI possibilities. And you can customize your HPC cluster with purpose-built modules to fit your
specific needs.
Powered by 4/5th Gen Intel® Xeon® Scalable processors or the Intel® Xeon® CPU Max Series, the Intel® Server D50DNP
Family delivers exceptional compute performance, and enhanced AI and in-memory analytics acceleration built into the
processor.
But improved performance doesn’t stop at the processor. You get a 1.5x memory bandwidth increase versus previous
generation processors,1 as well as a 2x I/O bandwidth increase with PCIe 5.0 (compared to PCIe 4.0) to speed data to the
processor,2 across the platform, and throughout your HPC infrastructure. A choice of two accelerator modules enables you
to pack incredible GPU and accelerator density into a small form factor. The feature-rich, highly scalable modules ensure
you can adapt your cluster to meet the specific requirements of your workloads



 Key Platform Highlights



  • Dedicated modules
  • HPC workloads
  • AI workloads
  • Compute module
  • Liquid cooling
  • Management module
  • Intel® Data Center GPU Max Series
  • PCIe 5.0 accelerator module
  • Intel® Xeon® Scalable processors
  • Intel® Xeon® CPU Max Series
  • High Bandwidth Memory (HBM2e)
  • DDR5 memory
  • Intel® Ultra Path Interconnects (UPI)







Product CollectionIntel® Server D50DNP Family
Code Name
Products formerly Denali Pass
Launch Date  Q1'24
Marketing Status
Launched
Limited 3-year WarrantyYes

 Extended Warranty Available

 for Purchase (Select Countries)

Yes

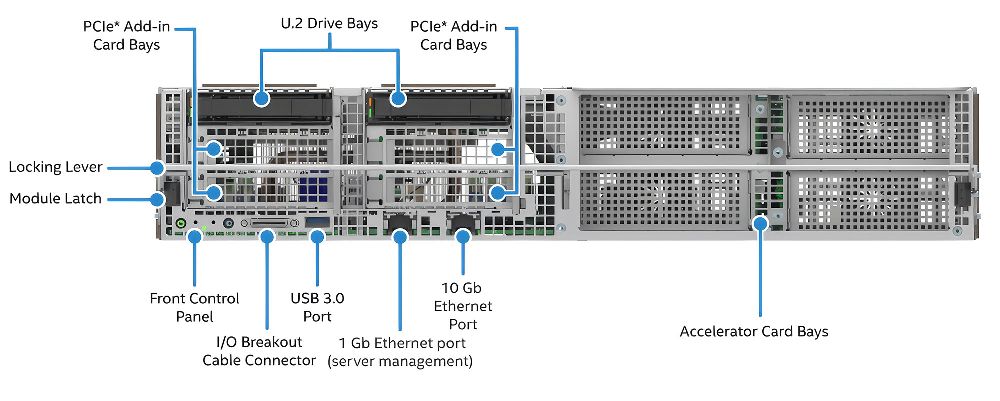

 Chassis Form Factor
2U Rack front IO
 Chassis Dimensions
591.25 x 437.1 x 82.1 mm (L x W x H)
  Board Form Factor
8.33" x 21.5"
Rack Rails Included
Yes
Compatible Product Series
4th and 5th Generation Intel® Xeon® Scalable Processors
Socket
Socket-E LGA4677
TDP
350 W
Heat Sink
(1) – 2U air-cooled heat sink front – iPC DNP2UHSF / (1) – 2U air-cooled heat sink back – iPC DNP2UHSB
Heat Sink IncludedYes

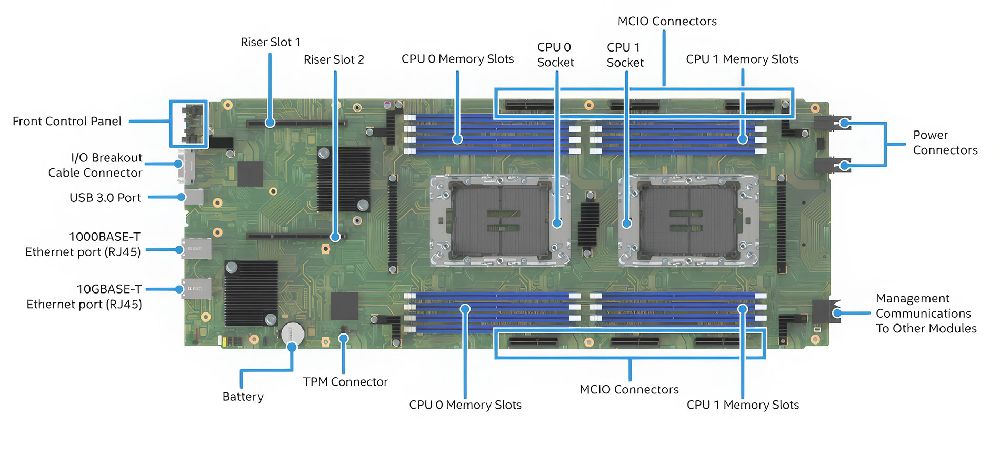

System BoardIntel® Server Board D50DNP1SB
Board ChipsetIntel® C741 Chipset
Target MarketHigh Performance Computing, Scalable Performance
Rack-Friendly BoardYes
Riser Card Included2U PCIe MCIO Riser DNP2UMRISER
Supported Operating SystemsVMware*, Windows Server 2022*, Windows Server 2019*, Red Hat Linux*, SUSE Linux*, Ubuntu*, CentOS*

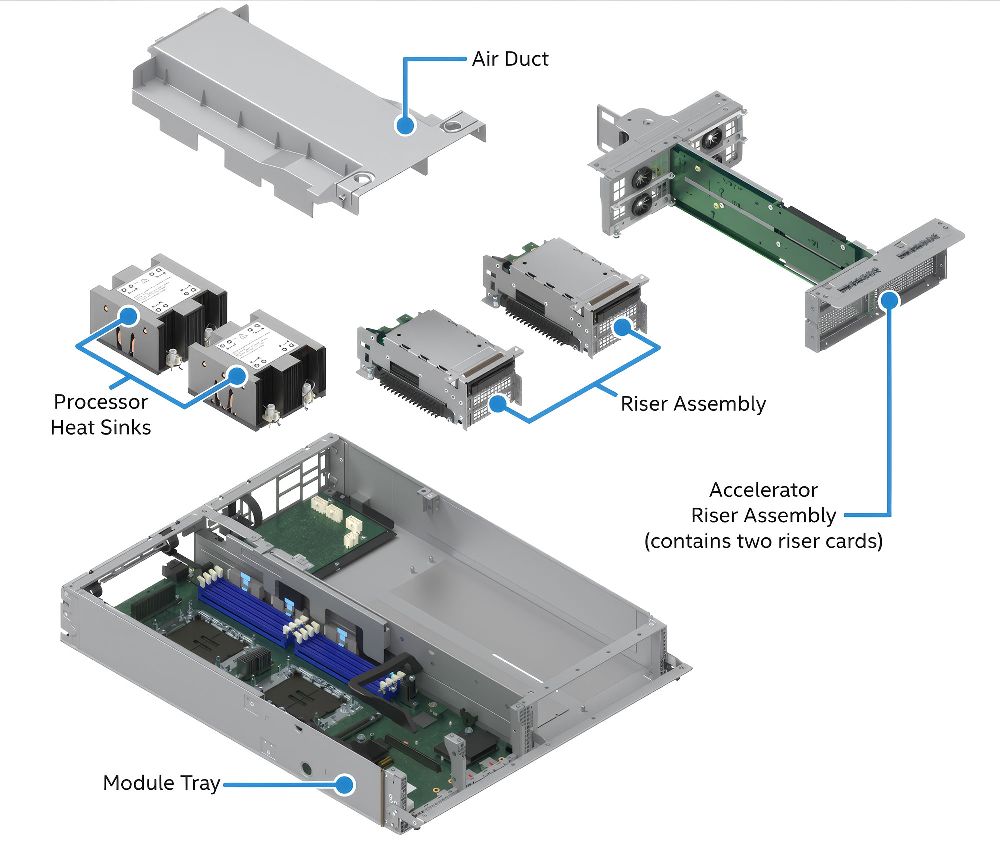

Included Items

(1) – Intel® Server Board D50DNP1SB – iPC D50DNP1SB / (1) – 2U half-width module tray –

iPN M44884-xxx / (1) – 2U accelerator module air duct – iPN M44898-xxx / (1) – MCIO cable

to server board P1_PE2 – iPN M44308-xxx / (1) – MCIO cable to server board P1_PE4 –

iPN M44307-xxx / (1) – MCIO cable to riser 1 connector J_MCIO_2 – iPN M44299-xxx /

(1) – MCIO cable to riser 1 connector J_MCIO_1 – iPN M44300-xxx / (1) – MCIO cable to

riser 2 connector J_MCIO_4 – iPN M44305-xxx / (1) – MCIO cable to riser 2 connector J_MCIO_3 –

iPN M44306-xxx / (2) – 2U riser bracket – iPN M44892-xxx / (2) – 2U MCIO riser card –

iPC DNP2UMRISER / (2) – U.2 SSD adapter card – iPN K50874-xxx / (2) – 2.5" SSD drive carrier –

iPN J36439-xxx / (1) – 2U heat sink front – iPC DNP2UHSF / (1) – 2U heat sink back – iPC DNP2UHSB /

(1) – 2U PCIe accelerator card 1 – iPC DNPACCLRISER1 / (1) – 2U PCIe accelerator card 2 –

iPC DNPACCLRISER2 / (1) – Power board – iPC DNPACCLNBRD / (2) – Power cable –

iPN M44103-xxx / (1) – Signal cable – iPN M44104-xxx

OPERATING SYSTEM
NTS AI Stack See what's inside each NTS AI package
Call for pricing
