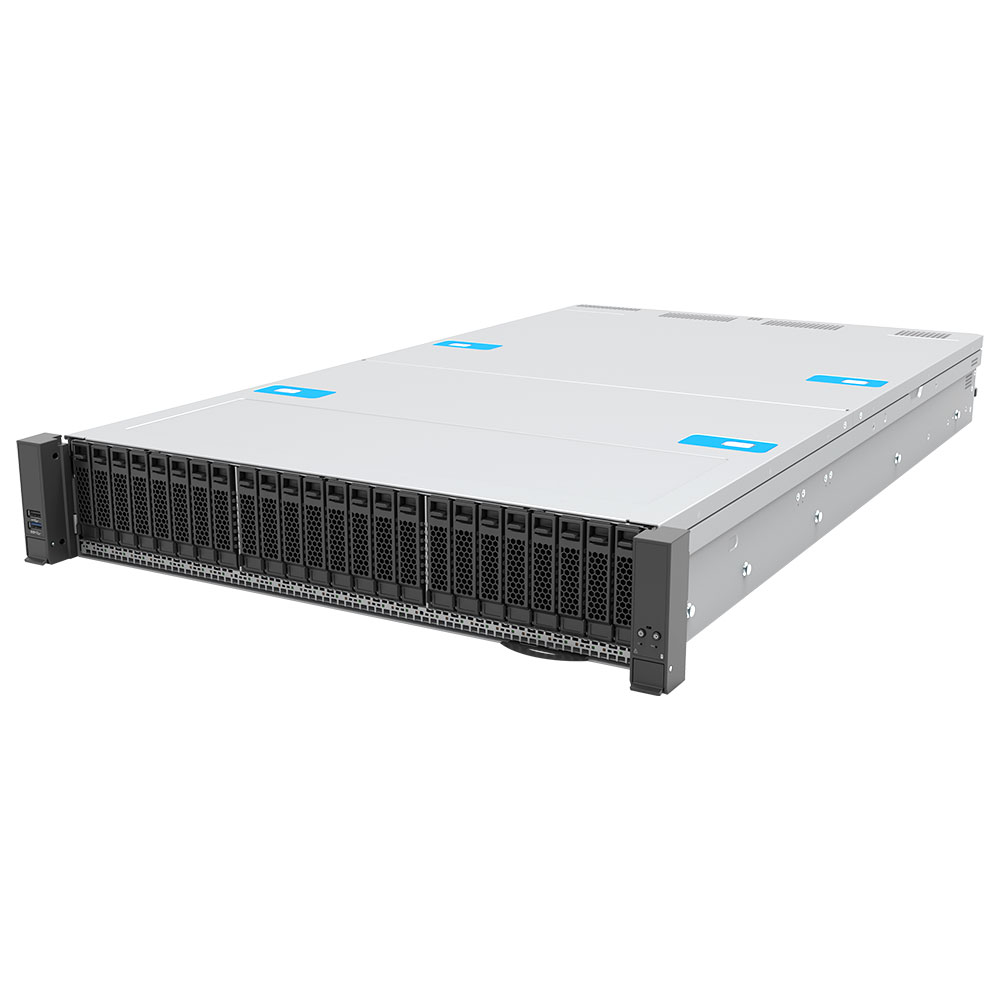

MITAC 2U Intel Server System M50FCP2UR208 (M50FCP)

2U 2-Socket 8-SFF/16-SFF/24-SFF high-performance mainstream server

Be the first to review this product

Up to 350W 2 5th/4th Gen Intel Xeon Scalable processors with air cooling
16+16 DDR5 DIMMs @ 5600(5th Gen) / 4800(4th Gen) MT/s
Up to 6 Full-Height & 2 Half-Height PCIe 5.0
8, 16, or 24 x 2.5" SAS/SATA/NVMe + 2 M.2
1 1000Base-T dedicated IPMI port
1 OCP v3 slot (optional)
Intel Data Center GPU Max and Flex support
1600W, 80+ Titanium / 2100W PSU, 80+ Platinum

Configure & Buy Features Specifications

Intel® Server M50FCP Family

Key Platform Highlight

Chassis: 2U rack mount, 769.6 x 438 x 87 mm (L x W x H)

Processor:
2 5th/4th Gen Intel Xeon Scalable processors
Up to 128 cores per server (5th Gen) / 120 cores per server (4th Gen)
Up to 3 Intel® UPI 2.0 links per socket at 20 GT/s
Up to 350W air cooled
Max Memory: (16) + (16) DDR5 DIMMs slots @ 5600(5th Gen) / 4800(4th Gen) MT/s

Networking:
1 1000Base-T dedicated IPMI port
1 x OCP v3 slot (network adapter sold separately, for 400Gbps network card)

Storage:
8, 16, or 24 x 2.5" (SFF) hot-swap SAS/SATA/NVMe
2 internal 2.5" SSD above PSU
2 M.2 SATA/PCIe 80/110mm connectors (onboard)

PCIe slots:
Up to 8 PCIe 5.0 / CXL 1.1
(for 2x full-height, double-wide or 4x full-height 3/4 length single-wide GPGPU support)
Validated support for Intel Data Center GPU Max and Flex Series:
2 Intel Data Center GPU Max 1100 (formerly Ponte Vecchio)
4 Intel Data Center GPU Flex 140/170 (formerly Arctic Sound-M)

Power Supply:
1600W PSU, 80+ Titanium
2100W PSU, 80+ Platinum

Enterprise-Class Server Management:

System Software (OpenBMC & BIOS)
- Redfish & IPMI 2.0 support
- (Optional) Advanced System Management Key (software license key)
Intel® Data Center Manager (Intel® DCM)
Real-time health, inventory and firmware version management of many servers at once
Intel® Server Utilities
In-band and out-of-band debug and provisioning utilities
Aspeed AST2600 and Remote Management Processor

Security Support:

Built-in Security Enhancements:
Intel Crypto Acceleration, Intel Software Guard Extensions (Intel® SGX), Intel Total Memory Encryption (Intel® TME), and Intel® Platform Firmware Resilience (Intel® PFR), and Converged Intel® Boot Guard and Trusted Execution Technology (Intel® TXT)
TPM 2.0 (Trusted platform module)

Built-in accelerators for data-intensive workloads

Intel® Deep Learning Boost (Intel® DL Boost) with Intel® Advanced Matrix Extensions (Intel® AMX) to accelerate AI training and inferencing.
Intel® Dynamic Load Balancer (Intel® DLB)
Next Generation Intel® QuickAssist Technology (Intel® QAT)
Intel® Data Streaming Accelerator (Intel® DSA)
Intel® In-memory Analytics Accelerator (Intel® IAA)

Product Collection	Intel® Server M50FCP Family
Code Name	Products formerly Fox Creek Pass
Launch Date	Q1'24
Marketing Status	Launched
Limited 3-year Warranty	Yes
Extended Warranty Available for Purchase (Select Countries)	Yes
Chassis Form Factor	2U Rack
Chassis Dimensions	770 x 438 x 87 mm
Board Form Factor	18.79" x 16.84"
Rack Rails Included	No
Compatible Product Series	4th and 5th Generation Intel® Xeon® Scalable Processors
Socket	Socket-E LGA4677
TDP	350 W
Heat Sink Included	No

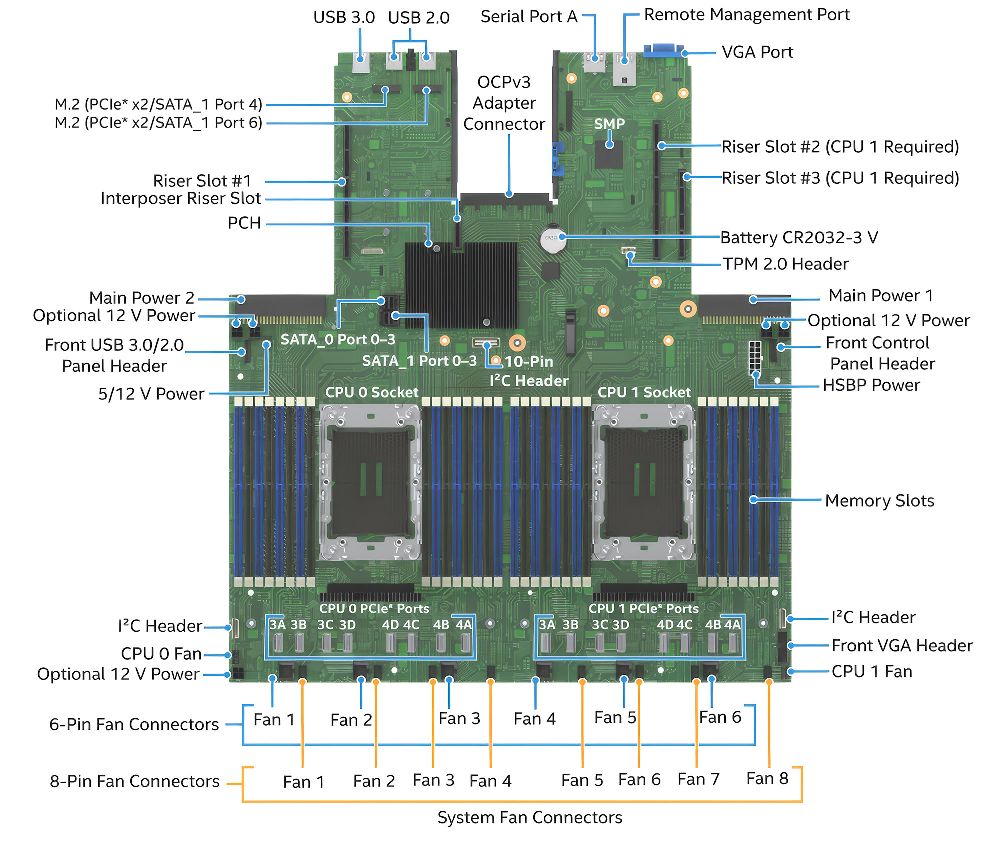

System Board	Intel® Server Board M50FCP2SBSTD
Board Chipset	Intel® C741 Chipset
Rack-Friendly Board	Yes
Power Supply	2100 W
Power Supply Type	AC
# of Power Supply Included	0
Redundant Fans	Yes
Redundant Power Supported	Yes
Backplanes	Included
Included Items	(1) – Server board – iPC M50FCP2SBSTD / (2) – E1A (XCC) processor clips – iPN AXXSPRXCCCC / (2) - E1B (MCC) processor clips - iPN AXXSPRMCCCC / (1) – Intel® RAID Maintenance Free Backup Unit (RMFBU) bracket / NOTE: NO PSU included / (1) – 2U 2.5" Chassis – iPN M36826-xxx / (1) 8 x 2.5" combo HSBP – iPC CYPHSBP2208 / (8) 2.5" SSD mounting rails with lever – iPN K71493-xxx / (8) 2.5" drive blanks – iPN K71491-xxx / (1) power cable, for 3x HSBPs – iPN K62572-xxx / (1) I2C cable, server board to HSBP– iPN K63232-xxx / (2) – Riser card assembly brackets / (1) – Front panel (left) with two USB ports – iPN K48177-xxx / (1) – Front Panel (left) USB cable – iPN K67061-xxx / (1) – Front panel (right) with control panel – iPN K48178-xxx / (1) – Front panel (right) cable pin – iPN K67059-xxx / (6) – Single-rotor system fans – iPC CYPFAN2UKIT / (16) – DIMM blanks – iPN M45676-xxx / (1) – Standard 2U air duct (for 2U-Tall HS) – iPC FCPDUCTSTD
Description	NOTE: NO PSU included / Integrated 2U system featuring an Intel® Server Board M50FCP2SBSTD, supporting two 4th or 5th Generation Intel® Xeon® Scalable processors, up to (24) 2.5" SSD with air cooling.
Memory Types	DDR5 (RDIMM) / 3DS-RDIMM / 9x4 RDIMM
Max # of DIMMs	32
Max Memory Size (dependent on memory type)	12 TB
# of Front Drives Supported	24
Intel® Optane™ Persistent Memory Supported	No
Integrated Graphics ‡	Yes
PCI Express Revision	5.0
Riser Slot 1: Total # of Lanes	32
Riser Slot 2: Total # of Lanes	32
Riser Slot 3: Total # of Lanes	16
Open Compute Port (OCP) Support	1 x 3.0
# of USB Ports	5
Total # of SATA Ports	10
USB Configuration	One USB 3.0 port at back panel / Two USB 2.0 ports at back panel / One USB 3.0 port front panel / One USB 2.0 port front panel
Max # of UPI Links	3
RAID Configuration	0/1/5/10
# of Serial Ports	1
Max CPU Configuration	2
Advanced System Management Key	Yes
Intel® Optane™ Memory Supported ‡	Yes
Intel® Remote Management Module Support	Yes
Integrated BMC with IPMI	IPMI 2.0 & Redfish
Intel® Node Manager	Yes
Intel® Advanced Management Technology	Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
TPM Version	2.0
Intel® Total Memory Encryption	Yes

OPERATING SYSTEM

No Operating System
Rocky Linux 8 [+$49.00]
Rocky Linux 9 [+$49.00]
Ubuntu 24.04 LTS [+$49.00]

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Call for pricing
