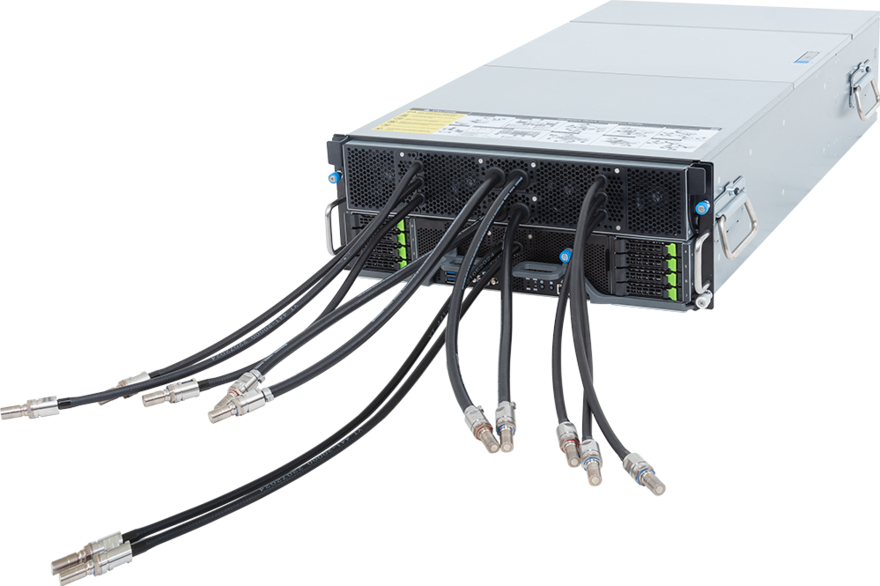

NTS HyperScale G4L3-SD1- LAX5

Intel Xeon Scalable CPUs and NVIDIA HGX B200 DLC in a 4U dual-processor

Liquid-cooled NVIDIA HGX™ B200
CPU+GPU direct liquid cooling solution with leak detection
1.8TB/s GPU-to-GPU bandwidth with NVIDIA NVLink™ and NVSwitch™
Dual 5th/4th Gen Intel^® Xeon^® Scalable Processors
Dual Intel^® Xeon^® CPU Max Series
8-Channel DDR5 RDIMM, 32 x DIMMs
Dual ROM Architecture
Compatible with NVIDIA^® BlueField^®-3 DPUs and NVIDIA ConnectX^®-7 NICs
2 x 10Gb/s LAN ports via Intel^® X710-AT2
2 x M.2 slots with PCIe Gen3 x2 and x1 interface
8 x 2.5" Gen5 NVMe/SATA hot-swap bays
4 x FHHL dual-slot PCIe Gen5 x16 slots
8 x FHHL single-slot PCIe Gen5 x16 slots
4+4 3000W 80 PLUS Titanium redundant power supplies

GIGABYTE G4L3-SD1-LAX5 GPU Server

Accelerating AI Innovation and Enterprise Efficiency

Intel’s 4th and 5th Gen Xeon Scalable processors represent a transformative leap in compute performance, purpose-built for the evolving demands of AI, deep learning, and enterprise workloads. These processors feature built-in AI acceleration engines and specialized accelerators for networking, storage, and analytics—empowering businesses to drive innovation and efficiency at scale.

With support for PCIe 5.0, the platform doubles I/O throughput compared to the previous generation, enabling faster data movement between GPUs and storage. The Intel Xeon CPU Max Series, equipped with High Bandwidth Memory (HBM), delivers exceptional performance for memory-bound HPC and AI applications.

GIGABYTE complements this cutting-edge platform with a full range of servers optimized for Intel Xeon CPUs, supporting PCIe Gen5 accelerators, Gen5 NVMe storage, and high-speed DDR5 memory—ensuring maximum performance, scalability, and reliability for modern data centers.

Key Platform Highlights

Built-in Accelerators: Boost AI, analytics, and infrastructure workloads while maximizing ROI.
Up to 64 Cores: Execute more tasks in parallel with high core density for faster processing.
DDR5 Memory Support: Achieve higher memory bandwidth and efficiency with DDR5 RDIMMs.
64GB High Bandwidth Memory (HBM): Accelerate data-intensive workloads with in-package memory.
PCIe 5.0 Lanes: Unlock up to 128GB/s bandwidth for next-gen GPUs and NVMe drives.
CXL 1.1 Support: Enhance performance with memory coherency and direct accelerator access.

Power Efficiency

Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

Certified Ready with Software Partners

Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

Smart Ride Through (SmaRT)

To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.

Smart Crises Management and Protection (SCMP)

SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.

Dual ROM Architecture

If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

High Performance

Supports NVIDIA HGX™ B200

The NVIDIA HGX™ B200 propels the data center into a new era of accelerating computing and generative AI, integrating NVIDIA Blackwell Tensor Core GPUs with a high-speed interconnect to accelerate AI performance at scale. Configurations of eight GPUs deliver unparalleled generative AI acceleration alongside a remarkable 1.4 TB of GPU memory and 64 TB/s of memory bandwidth for 15X faster real-time trillion-parameter-model inference, 12X lower cost, and 12X less energy. This extraordinary combination positions HGX B200 as a premier accelerated x86 scale-up platform designed for the most demanding generative AI, data analytics, and HPC workloads. HGX B200 supports advanced networking options—at speeds up to 400 Gb/s—delivering the highest AI performance with NVIDIA Quantum-2 InfiniBand and the Spectrum™-X Ethernet platform. HGX B200 with NVIDIA® BlueField®-3 DPUs enable cloud networking, composable storage, zero-trust security, and GPU compute elasticity in hyperscale AI clouds .

GIGABYTE Liquid Cooling Servers

Cool Performance

Servers will run incredibly stable and have high-performance from liquid cooled components that operate well below CPU TDP.

Power Saving

A liquid cooled server with less fans and running at lower speeds can achieve the same performance as an air-cooled server while consuming less power.

Noise Reduction

Servers require a lot of high-speed, high noise fans. GIGABYTE has found a way to reduce the noise by reducing the number of fans while using a liquid cooling solution.

Proven Track Record

The direct liquid cooling system supplier has 20 years of experience in cooling solutions for desktops PCs & data centers. GIGABYTE has 20+ years of experience as well.

Reliability

Liquid cooling solutions can be monitored with little need for maintenance. GIGABYTE and liquid cooling suppliers have warranties to cover components.

Ease of Use

GIGABYTE servers paired with a liquid cooling kit can be mounted in a rack or connected to a building’s water system. And offers quick/easy/dry disconnects.

Value-added Management

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface.

Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface

Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions

Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from the GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster.
GSM CLI: A command-line interface for monitoring and managing remotely.
GSM Agent: Installed on each GIGABYTE server node to retrieve system and device information through the OS, integrating with GSM Server or CLI.
GSM Mobile: A mobile app for Android and iOS that provides admins with real-time system information.
GSM Plugin: An API that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

Call for pricing
