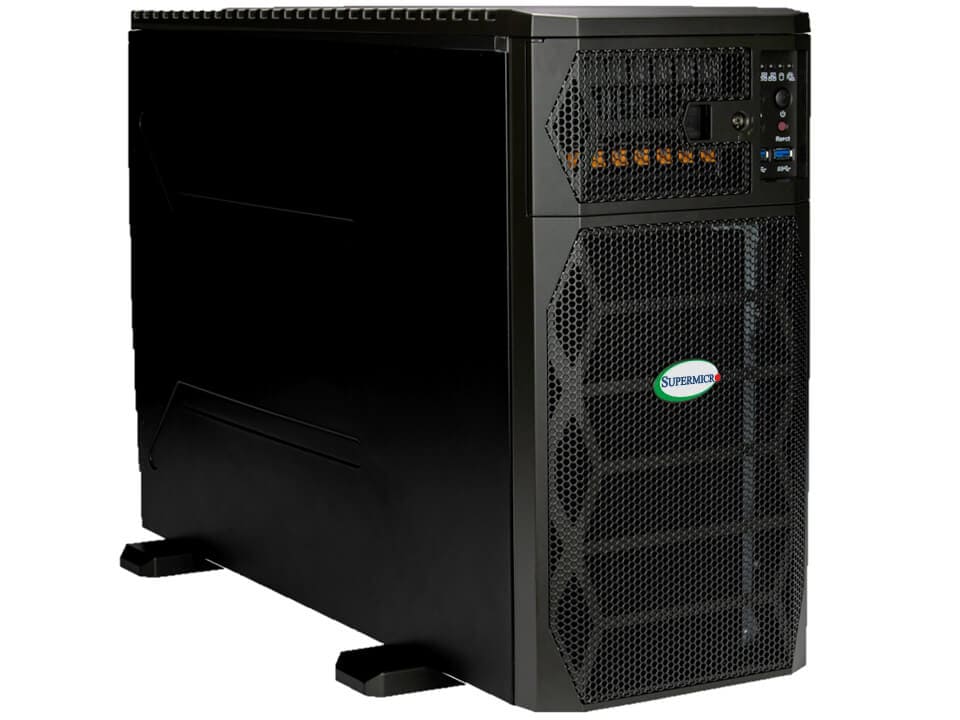

| Form Factor | Tower or 5U Rackmount
Enclosure: 454.7 x 218.4 x 701mm (17.9" x 8.6" x 27.6")
Package: 388 x 655 x 956mm (15.3" x 25.8" x 37.6") |
Processor
| Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 64C/128T; Up to 320MB Cache per CPU |
| GPU | Max GPU Count: Up to 4 double-width GPUs
Supported GPU: NVIDIA PCIe: A100
CPU-GPU Interconnect: PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional) |
System Memory
| Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 8 bays
8 front hot-swap 2.5" NVMe/SAS*/SATA drive bays
(*SAS support may require additional storage controller and/or cables)
M.2: 2 M.2 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default
6 PCIe 5.0 x16 FHFL slots |
On-Board Devices
| SATA: SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset: Intel® C741
Network Connectivity: 2 RJ45 10GbE with Intel® X550-AT2
1 RJ45 1GbE with ASPEED AST2600
1 SFP28 25GbE (optional)
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GbE LAN ports
USB: 2 USB 3.2 Gen1 ports(front)
3 USB 3.2 Gen1 ports(rear)
1 USB 3.2 Gen2 port(rear)
Video: 1 VGA port
DOM: 2 SATA DOM (Disk on Module) ports
Audio: 7.1 HD Audio
Line Out
|
System Cooling
| Fans: Up to 1 fan 8cm Fan(s)
Up to 2 fan 12cm Fan(s)
Up to 1 liquid cooling Fan(s)
Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
|
Power Supply
| 1x 2200W Redundant Titanium Level (96%) power supply
|
System BIOS
| BIOS Type: AMI 32MB SPI Flash EEPROM
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
8+4 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 121 lbs (55 kg)
Net Weight: 88 lbs (44 kg)
Available Color: Black Front & Black Body
|
Operating Environment
| Operating Temperature: 10°C to 25°C (50°F to 77°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
