| Main Specifications |

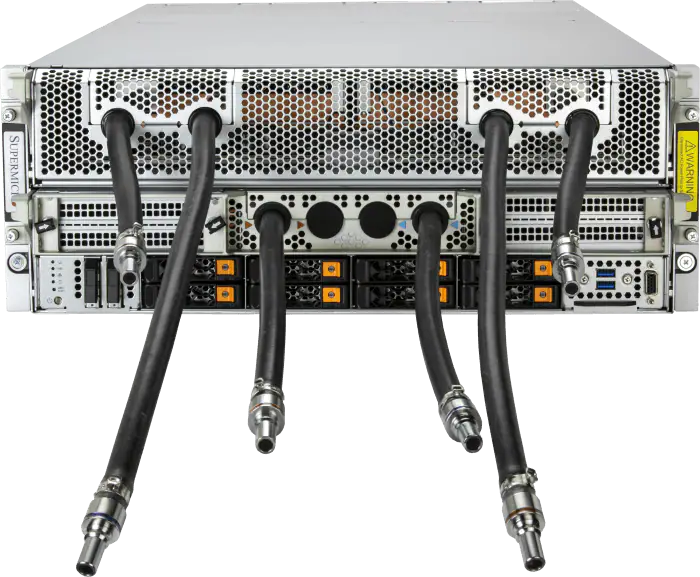

| Device Type | DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU (complete rack and onsite service are required) | |
| Built-in Devices | Super X13DEG-D | |
| Form Factor | 4U Rackmount | |
| Dimensions (WxDxH) | Height 6.85" (174 mm)Width 17.6" (449 mm)Depth 35.25" (895.35 mm) | |
| Weight | Gross Weight: 227 lbs (103 kg) Net Weight: 191 lbs (87 kg) | |
| GPU |
| Max GPU Count | 8 onboard GPUs | |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) | |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch | |
| Processor |
| Processor | Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors | |
| System Memory |
| Memory | Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM | |
| Drive Bays |
| Hard Drive | Default: Total 8 bays
8 front hot-swap 2.5" NVMe drive bays
2 M.2 NVMe slots (M-key) | |
| On-Board Devices |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 | |
| Chipset | System on Chip | |
| Input / Output |
| Video Output | 1 VGA port | |
| System BIOS |
| BIOS Type | AMI 32MB UEFI | |
| Power |
| AC Input Voltage | 5900W: 200-207.9Vac / 50-60Hz
6000W: 208-219.9Vac / 50-60Hz
6300W: 220-229.9Vac / 50-60Hz
6500W: 230-238.9Vac / 50-60Hz
6600W: 239-240Vac / 50-60Hz | |
| Power Supply Installed | 4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies | |
| Environment |
| Environmental Spec | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
| |
