| Main Specifications |

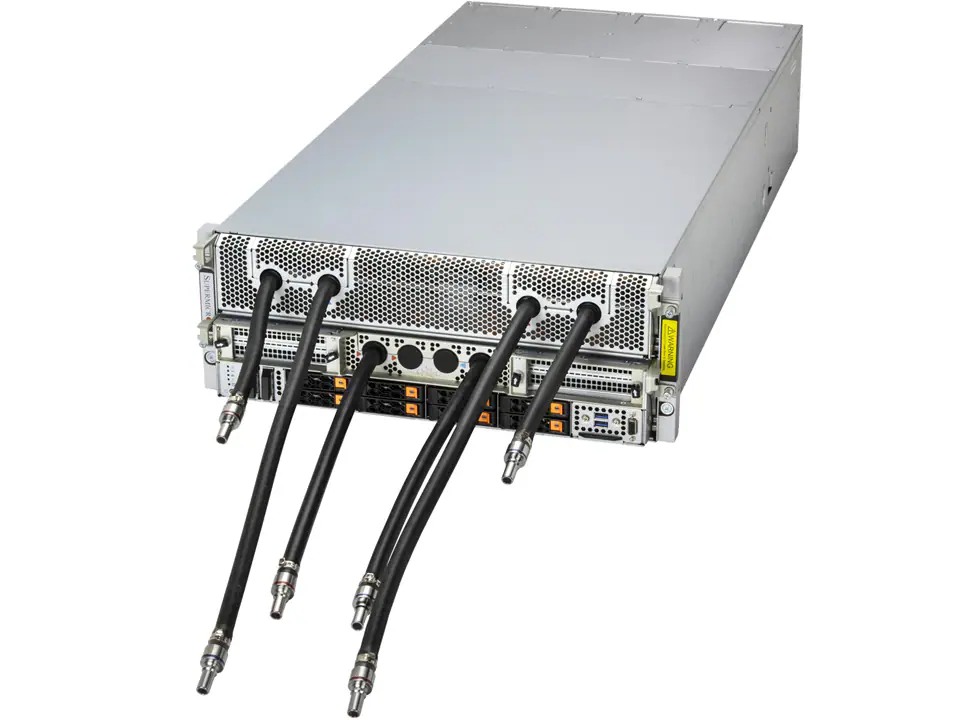

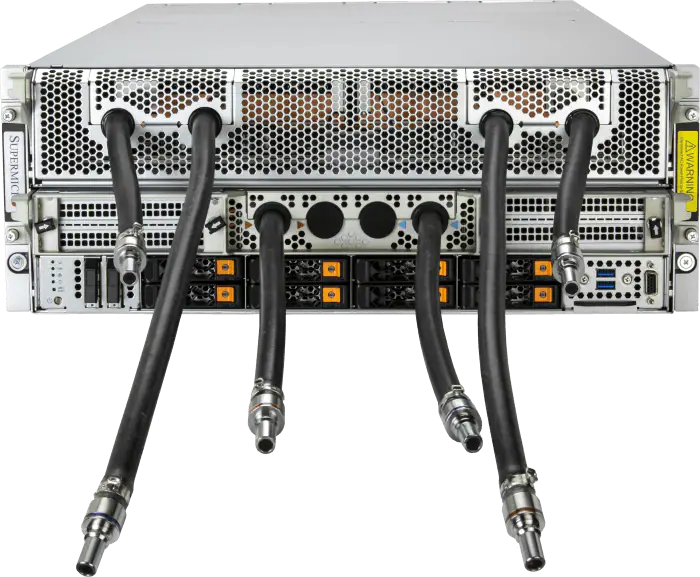

| Device Type | DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU (complete rack and onsite service are required) | |
| Built-in Devices | Super X14DBG-DAP | |
| Form Factor | 4U Rackmount | |
| Dimensions (WxDxH) | Height6.85" (174 mm) Width 17.6" (449 mm) Depth 35.25" (895.35 mm)Package 16.14" (H) x 50.39" (W) x 28.7" (D) | |
| Weight | Gross Weight: 236 lbs (107 kg) Net Weight: 203 lbs (92 kg) | |
| GPU |
| Max GPU Count | 8 onboard GPUs | |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) | |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ | |
| Processor |
| Processor | Dual Socket BR (LGA-7529)
Intel® Xeon® 6900 series processors with P-cores | |
| System Memory |
| Memory | Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM | |
| Drive Bays |
| Hard Drive Installed | Default: Total 8 bays
8 front hot-swap 2.5" NVMe drive bays 2 M.2 NVMe slots (M-key) | |
| On-Board Devices |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 | |
| Chipset | System on Chip | |
| Input / Output |
| Video Output | 1 VGA port | |
| System BIOS |
| BIOS Type | AMI 64MB UEFI | |
| Power |
| Power Supply Installed | 4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies | |
| Environment |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) | |
| Relative Humidity | 8% to 90% (non-condensing) | |
