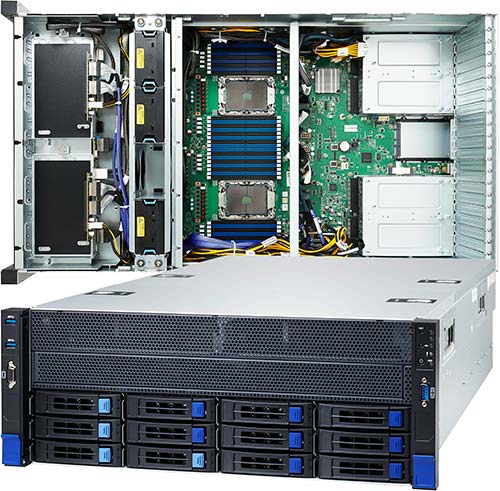

| System | Form Factor 4U Rackmount
Chassis Model FT83
Dimension (D x W x H) 32.68" x 17.26" x 6.9" (830 x 438.4 x 176mm)
Motherboard Name S7129GMRE-HE #
Motherboard Notification # The motherboard not sold separately
Gross Weight 46 kg (101.4 lbs)
Net weight 39.3 kg (86.6 lbs)
|
Front Panel
| Buttons (1) UID / (1) PWR w/ LED / (1) RST
LEDs (1) HDD / (1) ID / (1) System Event / (2) LAN activity
I/O Ports (2) USB 3.0 ports / (1) COM Port / (1) VGA port |
| External Drive Bay | Q'ty / Type (12) 3.5"/2.5" Hot-Swap HDD/SSDs w/ (4) NVMe
Front Drive Bay Interface (12) SATA 6Gb/s with (4) NVMe ports
Front Drive Backplane Support SAS 12Gb/s /SATA 6Gb/s /NVMe |
System Cooling Configuration
| Fan (8) hot-swappable 8cm fans |
| Power Supply | Type RPSU
Input Range AC 100-127V/12A / AC 200-240V/10A
Frequency 50/60 Hz
Output Watts 3,000 Watts (100-127Vac input) / 6,000 Watts (200-240Vac input)
Efficiency 80 plus Titanium
Redundancy 3+1 |
| Processor | Q'ty / Socket Type (2) LGA4189
Supported CPU Series 3rd Gen. Intel Xeon Scalable Processor
Thermal Design Power Wattage Max up to 270W (TDP)
System Bus Up to 11.2/10.4 GT/s with Intel Ultra Path Interconnect (UPI) support |
Chipset
| PCH Intel C621A
Switch IC (2) PLX PEX88096
|
CPU-GPU Link Topology
| Dual-root All GPU connected to CPUs evenly
|
Memory
| Supported DIMM Qty (16)+(16) DIMM slots
DIMM Type / Speed DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
Capacity Up to 4,096GB RDIMM/ 8,192GB LRDIMM/ 8,192GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel 8 Channels per CPU / 2 DIMM slots per Channel
Memory voltage 1.2V
|
Expansion Slots
| PCIe (3) PCIe Gen 4 x16 slots (FH/HL) / (10) PCIe Gen 4 x16 slots (FH/10.5"L/DW )
Pre-installed TYAN Riser Card (PCIe Gen.4) (2) M7129F83A-L16 riser card for (2) PCIe Gen.4 x16 slots (left)
Others (1) PCIe Gen.4 x16 OCP 3.0 slot for mezz. w/ pull tab
Physical Dimension Abbreviation FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm)
|
LAN
| Physical Dimension Abbreviation FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm)
LAN Q'ty / Port (1) GbE dedicated for IPMI
PHY Realtek RTL8211E
|
Storage SATA
| Connector (3) SFF-8643 for (12) front SATA drives
Controller Intel C621A
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
|
Storage NVMe
| Connector (M.2) (1) 2280 (by PCIe 3.0 x4) M.2 slot on MB / (1) 2280 (by PCIe 4.0 x1) M.2 slot on PCIe I/O board
Connector (U.2) (2) SFF-8654 for (4) NVMe ports
Notification Certain M.2 SSDs designed after November 2020 are supported only with a specific motherboard revision. Please contact Tyan Technical Support for additional information.
|
Graphic
| Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600
|
| I/O Ports | USB (2) USB3.0 ports (@ front) / (2) USB3.0 ports (@ rear) (from M7129F83A-RIO)
COM (1) DB-9 COM port
VGA (1) D-Sub 15-pin port
RJ-45 (1) GbE port dedicated for IPMI (from M7129F83A-RIO) |
| System Monitoring | Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support |
| Server Management | Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS | Brand / ROM size AMI / 32MB
Feature Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S4,S5 |
| Operating Environment | Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
Note Please refer to the TYAN NVIDIA Compatibility List for the operating temperature while GPGPU deployed |
| Regulation | FCC (SDoC) Class A
CE (DoC) Class A
CB/LVD Yes
RCM Yes
VCCI Yes
BSMI Yes |
| RoHS | RoHS 6/6 Compliant Yes |
Package Contains
| Barebone (1) FT83A-B7129 Barebone
Manual (1) Quick Installation Guide
|
