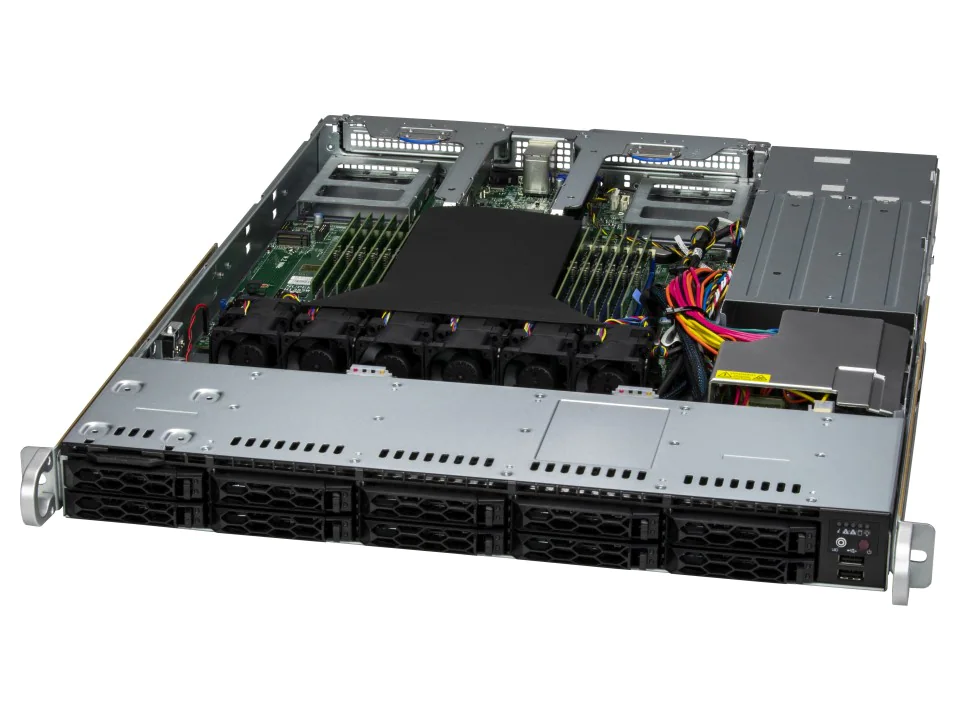

NTS Elite APEX 1U Cloud/DC Server -AMD EPYC 9004 Series Rack Server

MPN AS-1115CS-TNR
1U CloudDC with 10 hot-swap 2.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 2 AIOM slots

Key capabilities

  • Single AMD EPYC™ 9004/9005* Series Processor(*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
  • Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s
  • 2 PCIe 5.0 x16 FHHLDual AIOM (OCP 3.0) for networking, 1 dedicated IPMI LAN
  • 10 Hot-swap 2.5" SATA drive bays Optional 10 Hot-swap NVMe/SAS drives support via additional parts2 M.2 PCIe 3.0 x2 NVMe slots
  • Dual 860W Redundant Platinum Level power supplies(Power supply full redundancy based on configuration and application load)
Part#: CMDA002U10

Key applications

GEO · procurement facts

At a glance

Structured summary for architects, buyers, and assistants evaluating this platform.
1U CloudDC with 10 hot-swap 2.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 2 AIOM slots
Buyers use this page to confirm form factor, accelerator and storage options, and contract-ready quoting. Configure CPU, memory, GPU, drives, and networking below; NTS returns a validated BOM with firmware baselines, burn-in evidence, and CLIN-aligned documentation for SEWP V, ITES-4H, GSA, and SLED cooperatives when your program requires them.
Integration is owned end-to-end: rack elevation, power and cooling checks, imaging, and serial-tracked acceptance—so site install is not a first-time assembly. Lifecycle support follows the same staging records used at handoff.
Product
NTS Elite APEX 1U Cloud/DC Server -AMD EPYC 9004 Series Rack Server
Part number
AS-1115CS-TNR
Category
Services › Rack Integration
Form factor
1U rackmount
Typical workloads
virtualization, private cloud, and enterprise applications
Configuration
Engineer-to-order via Configure (CPU, memory, GPU, storage, networking).
Vendor
RackmountNTS (New Tech Solutions, Inc.), Fremont, California, USA.
Facility
ISO-aligned staging, imaging, and burn-in at NTS HQ in Fremont, CA.
NTS Elite APEX 1U Cloud/DC Server -AMD EPYC 9004 Series Rack Server is quoted engineer-to-order by New Tech Solutions (RackMountNTS). Use Configure to select CPU, memory, accelerators, storage, and networking; NTS validates power, cooling, firmware, and drivers in Fremont, California before systems ship.
Federal, defense, and SLED programs can align the same BOM to SEWP V, ITES-4H, GSA MAS, or cooperative vehicles when the SOW allows. Commercial buyers receive the same staging discipline, serial-tracked acceptance, and lifecycle support path after handoff.
Share workload notes, target GPU or CPU counts, fabric preference (Ethernet, InfiniBand, or NVLink where applicable), rack power budget, and delivery window through contact NTS or Request a Quote. We return a validated option set with lead times, dual-source notes when required, and a package ready for contracting review.
Related reading: AI and GPU infrastructure, data center and HPC, BOM validation, and contract vehicles. From pilot nodes to multi-rack cells, NTS keeps one design authority across chassis, accelerators, and storage so scale-out does not restart engineering after the first system lands.
After you select options in Configure, pricing updates in real time. Request a Quote to receive a package with lead times, dual-source notes when required, and acceptance documentation aligned to your receiving process. Gold SKUs ship as fixed platforms; configurable SKUs remain engineer-to-order with the same Fremont staging path.
Questions about GPU count, liquid cooling, InfiniBand or Ethernet fabrics, storage density, or contract-vehicle packaging can be answered from this page’s overview, FAQ, and Configure workbench—or by contacting an NTS specialist with your draft BOM.
NTS supports commercial, federal, defense, and SLED buyers with the same engineering process: design review, parts validation, assembly, firmware and driver prep, and ship-ready documentation from our Fremont facility.

Product overview

Highlights and workloads for NTS Elite APEX 1U Cloud/DC Server -AMD EPYC 9004 Series Rack Server.

Overview

1U CloudDC with 10 hot-swap 2.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 2 AIOM slots
Form Factor1U Rackmount
Enclosure: 437 x 43 x 597mm (17.2" x 1.7" x 23.5")
Package: 605 x 197 x 822mm (23.8" x 7.8" x 32.4")
ProcessorSingle processor(s)
AMD EPYC™ 9004/9005 Series Processors
(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Up to 160C/320T
GPUMax GPU Count: Up to 2 single-width GPUs
Supported GPU: NVIDIA PCIe: A2, L4
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: PCIe
System MemorySlot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB
R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Drive Bays ConfigurationDefault: Total 10 bays
10 front hot-swap 2.5" SATA drive bays
Option A: Total 10 bays
10 front hot-swap 2.5" PCIe 5.0 NVMe* drive bays
Option B: Total 10 bays
10 front hot-swap 2.5" SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for
details)
M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
Expansion SlotsDefault
2 PCIe 5.0 x16 FHHL slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
On-Board DevicesChipset: AMD System on Chip
Network Connectivity: Via AIOM
Input / OutputLAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.0 ports (rear)
2 USB 2.0 ports (front)
Video: 1 VGA port
Serial: 1 COM port (rear)
TPM: 1 TPM header
System CoolingFans: Up to 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud
Power Supply2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies
System BIOSBIOS Type: AMI 32MB SPI Flash ROM
BIOS Features: ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
ManagementSuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM);
Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); OOB
Management Package (SFT-OOB-LIC ); SuperServer Automation Assistant (SAA) New!
PC Health MonitoringFan: Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU
thermal trip support
Dimensions and WeightWeight: Gross Weight: 46 lbs (20.9 kg)
Net Weight: 25 lbs (11.3 kg)
Available Color: Black front & sliver body
Operating EnvironmentOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
MotherboardSuper H13SSW
ChassisCSE-LB16TS-R860AWP-A
