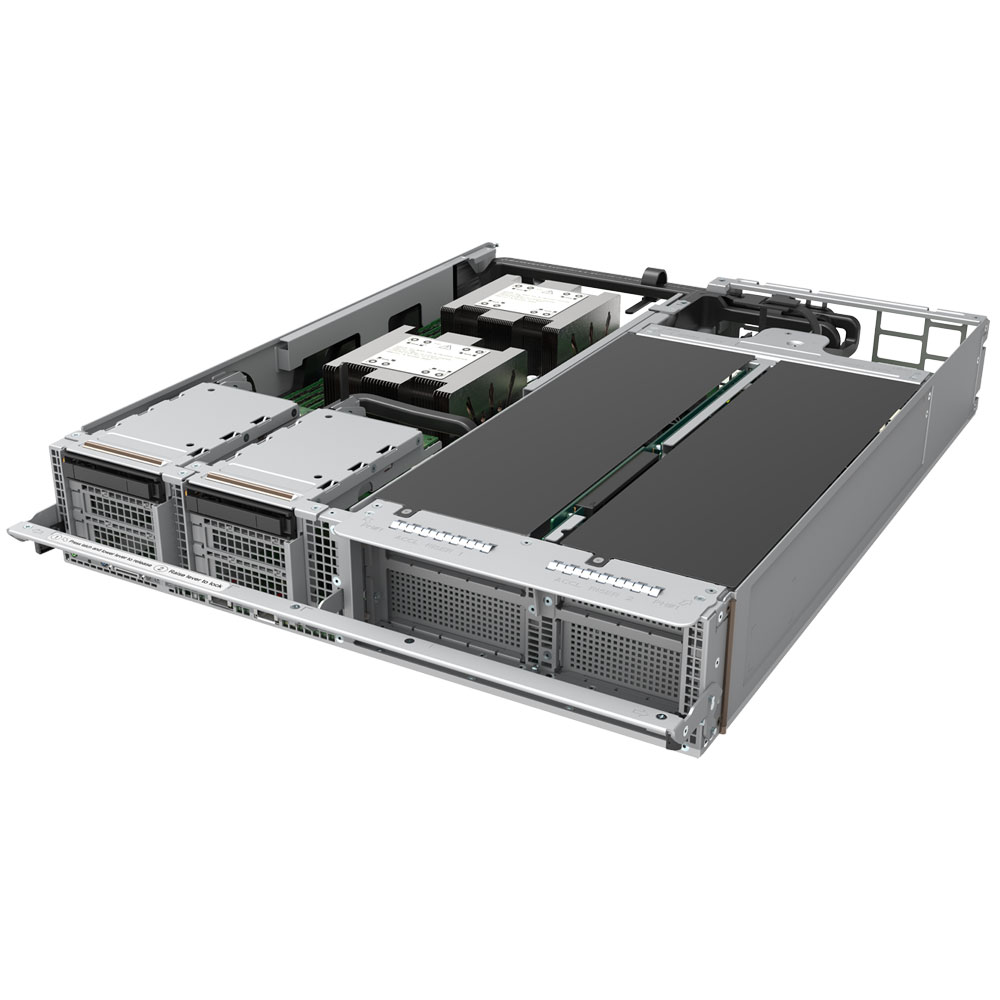

NTS Elite APEX 2U High-Density GPU Server for AI & HPC

2U Full-Width PCIe 5.0 accelerator module with standard air-cooled
Part#: APXI022U4G-V1
  • Up to 350W 2 5th/4th Gen Intel® Xeon® Scalable processors or Intel® Xeon® CPU Max Series
  • 8+8 DDR5 DIMMs @ 5600(5th Gen) / 4800(4th Gen) MT/s
  • 4 LP PCIe Gen 5, 4 FHFL double-width cards support
  • 2 2.5" hot-swap U.2 NVMe and 2 NVMe/SATA M.2
  • Up to 400Gbps network card support
  • 1 10GBase-T LAN and 1 1000Base-T dedicated IPMI ports
  • 2U one node, standard air-cooled
  • 4 Intel Data Center GPU Max support
  • 2700W PSU, 80+ Titanium

Configure & Buy Specifications



Product CollectionIntel® Server D50DNP Family
Code Name
Products formerly Denali Pass
Launch Date  Q1'24
Marketing Status
Launched
Limited 3-year WarrantyYes

 Extended Warranty Available

 for Purchase (Select Countries)

Yes
 Chassis Form Factor
2U Rack front IO
 Chassis Dimensions
591.25 x 437.1 x 82.1 mm (L x W x H)
  Board Form Factor
8.33" x 21.5"
Rack Rails Included
Yes
Compatible Product Series
4th and 5th Generation Intel® Xeon® Scalable Processors
Socket
Socket-E LGA4677
TDP
350 W
Heat Sink
(1) – 2U air-cooled heat sink front – iPC DNP2UHSF / (1) – 2U air-cooled heat sink back – iPC DNP2UHSB
Heat Sink IncludedYes
System BoardIntel® Server Board D50DNP1SB
Board ChipsetIntel® C741 Chipset
Target MarketHigh Performance Computing, Scalable Performance
Rack-Friendly BoardYes
Riser Card Included2U PCIe MCIO Riser DNP2UMRISER
Supported Operating SystemsVMware*, Windows Server 2022*, Windows Server 2019*, Red Hat Linux*, SUSE Linux*, Ubuntu*, CentOS*
Included Items

(1) – Intel® Server Board D50DNP1SB – iPC D50DNP1SB / (1) – 2U half-width module tray –

iPN M44884-xxx / (1) – 2U accelerator module air duct – iPN M44898-xxx / (1) – MCIO cable

to server board P1_PE2 – iPN M44308-xxx / (1) – MCIO cable to server board P1_PE4 –

iPN M44307-xxx / (1) – MCIO cable to riser 1 connector J_MCIO_2 – iPN M44299-xxx /

(1) – MCIO cable to riser 1 connector J_MCIO_1 – iPN M44300-xxx / (1) – MCIO cable to

riser 2 connector J_MCIO_4 – iPN M44305-xxx / (1) – MCIO cable to riser 2 connector J_MCIO_3 –

iPN M44306-xxx / (2) – 2U riser bracket – iPN M44892-xxx / (2) – 2U MCIO riser card –

iPC DNP2UMRISER / (2) – U.2 SSD adapter card – iPN K50874-xxx / (2) – 2.5" SSD drive carrier –

iPN J36439-xxx / (1) – 2U heat sink front – iPC DNP2UHSF / (1) – 2U heat sink back – iPC DNP2UHSB /

(1) – 2U PCIe accelerator card 1 – iPC DNPACCLRISER1 / (1) – 2U PCIe accelerator card 2 –

iPC DNPACCLRISER2 / (1) – Power board – iPC DNPACCLNBRD / (2) – Power cable –

iPN M44103-xxx / (1) – Signal cable – iPN M44104-xxx

OPERATING SYSTEM
NTS AI Stack See what's inside each NTS AI package
Call for pricing
