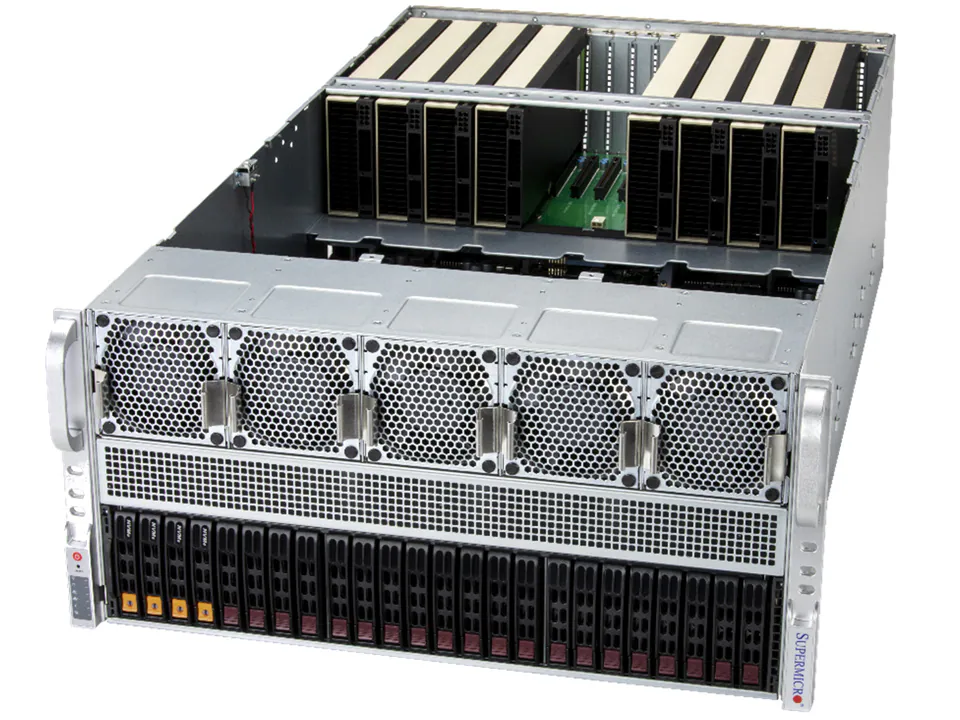

NTS Elite APEX 5U Dual‑Socket AMD EPYC GPU System

NTS Elite APEX 5U Dual‑Socket AMD EPYC GPU System – 5U server with up to 8 PCIe Gen5 GPUs, dual AMD EPYC CPUs, optimized for AI, HPC, deep learning, and visual computing workloads
Part#: APXI005U8G

Key Applications

  • AI / Deep Learning
  • 3D Rendering Farm
  • Visualization / Simulation
  • High Performance Computing
  • Multimedia/Digital Content creation

Key Features

  1. Dual Socket SP5 AMD EPYC™ 9005 Series Processors up to 500W with air cooling
  2. Supports up to 8 double-width PCIe GPU accelerator cards
  3. Supports up to 24 DIMMs slots, 6400 MT/s 6TB DDR5 in 1DPC
    (Please check System Memory Section for detail)
  4. Total of 9 PCIe 5.0 x16 FHFL slots
  5. Dual front hot-swap 2.5" SATA + 4 front hot-swap 2.5" NVMe drive bays
  6. Total of 6x 2700W Redundant (3 + 3) Titanium Level power supplies
    (Power supply full redundancy based on configuration and application load)
Configure & Buy Specifications



  Form Factor5U Rackmount
Enclosure: 438 x 222.5 x 786.1mm (17.2" x 8.75" x 31")
Package: 720 x 440 x 1080mm (28.34" x 17.32" x 42.51")
Processor
Dual processor(s)
AMD EPYC™ 9005/9004 Series Processors
Up to 192C/384T
GPU  Max GPU Count: Up to 8 double-width GPUs
  Supported GPU: NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), L40S
  CPU-GPU Interconnect: Direct Attached
  GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional)
System MemorySlot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Drive Bays Configuration Default: Total 6 bays
2 front hot-swap 2.5" SATA drive bays
4 front hot-swap 2.5" NVMe drive bays
Option A: Total 2 bays
2 front hot-swap 2.5" SATA drive bays
M.2: 1 M.2 PCIe 3.0 x4 NVMe slot (M-key)
  Expansion Slots Default
9 PCIe 5.0 x16 FHFL double-width slots
Option A
10 PCIe 5.0 x16 FHFL double-width slots
  On-Board Devices SATA: SATA (6Gbps)
Chipset: System on Chip
Network Connectivity: 2 RJ45 10GbE
  Input / Output
LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GBASE-T LAN ports
USB: 2 ports(rear)
Video: 1 VGA port
  System Cooling
Fans: Up to 10 heavy duty fans with optimal fan speed control
Power Supply
6x 2700W Redundant (4 + 2) Titanium Level (96%) power supplies
System BIOS
BIOS Type: AMI 64MB SPI Flash EEPROM
Management
SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Super
Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
PC Health Monitoring
CPU: Monitors for CPU Cores, Chipset Voltages, Memory
7 +1 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Dimensions and Weight Weight: Gross Weight: 100 lbs (45.3 kg)
Net Weight: 65.5 lbs (29.7 kg)
Available Color: Black Front & Silver Body
Operating Environment
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
