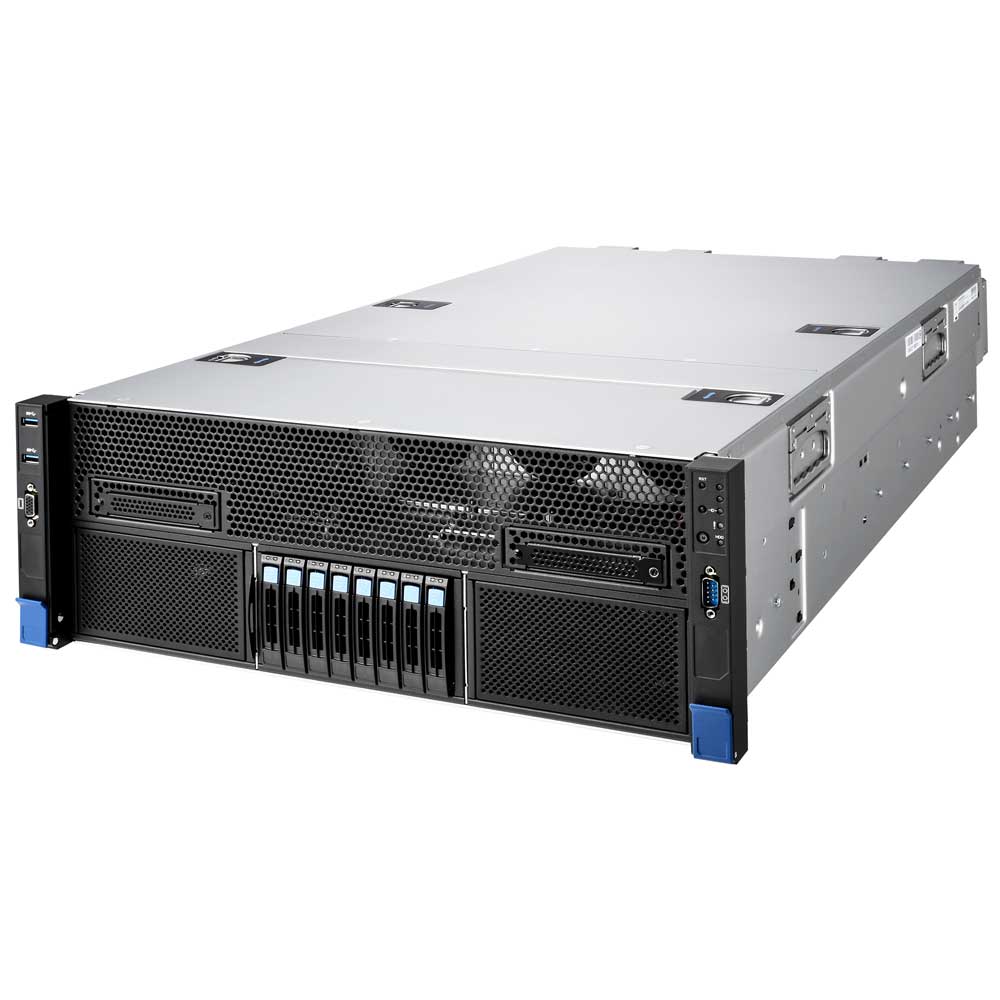

| System | Form Factor 4U Rackmount
Chassis Model FT83
Dimension (D x W x H) 32.78" x 17.62" x 6.9" (832.6 x 447.4 x 176mm)
Motherboard Name G520G6 #
Motherboard Notification # The motherboard not sold separately
Gross Weight 56 kg (123.5 lbs)
Net weight 41.5 kg (91.5 lbs)
Board Dimension Prop. 16.85" x 14.26" (428 x 361.9mm)
|
Front Panel
| Buttons (1) UID / (1) PWR w/ LED / (1) RST
LEDs (1) HDD / (1) ID / (1) System Event
I/O Ports (2) USB 3.2 Gen.1 ports / (1) COM Port / (1) VGA port |
| External Drive Bay | Q'ty / Type (8) 2.5" Hot-Swap NVMe SSDs
Front Drive Bay Interface (8) NVMe U.2
Front Drive Backplane Support NVMe |
System Cooling Configuration
| Fan (4) 8080 hot-swap fan modules at rear / (8) 8038 hot-swappable fans |
| Power Supply | Type CRPS
Input Range AC 200-240V/16A
Frequency 50/60 Hz
Output Watts 9,600Watts
Efficiency 80 plus Titanium
Redundancy 3+1 |
| Processor | Q'ty / Socket Type (2) LGA4710
Supported CPU Series Xeon® 6 Processor
Thermal Design Power Wattage Max up to 350W* (TDP) |
Expansion Slots
| PCIe (11) PCIe Gen 5 x16 slots (FH/FL)
Others (3) PCIe Gen.5 x16 OCP 3.0 mezzanine slots
|
LAN
| Q'ty / Port (1) GbE dedicated for IPMI
PHY Realtek RTL8211F
|
Storage NVMe
| Connector (M.2) (3) 22110/2280 (by PCIe Gen 4 interface)
|
Graphic
| Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600
|
I/O Ports
| USB (2) USB3.0 ports / (2) USB3.2 Gen.1 ports
COM (1) DB-9 COM port
VGA (1) D-Sub 15-pin port
RJ-45 (1) GbE port dedicated for IPMI
|
TPM (Optional)
| TPM Support Please refer to our TPM supported list.
Interface SPI
|
System Monitoring
| Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
|
Server Management
| Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
|
| BIOS | Brand / ROM size AMI / 64MB
Feature Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S0,S1,S5 |
| Operating Environment | Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C |
| Regulation | FCC (SDoC) Class A
CE (DoC) Class A
CB Yes
RCM Yes
VCCI Yes
BSMI Yes
NRTL Yes |
| RoHS | RoHSRoHS 6/6 Compliant Yes
RoHS 2.0 Yes |
| Package Contains | Package Contains Barebone (1) G4520G6 Barebone
Manual (1) Quick Installation Guide
Others (2) E2A Carrier / (2) E2B Carrier |
