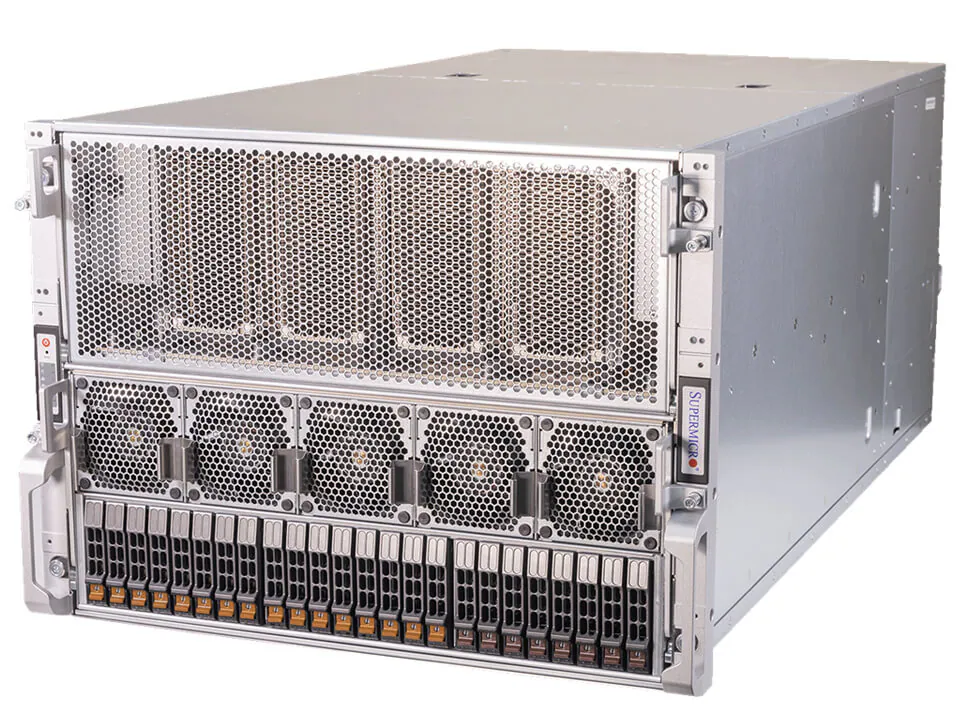

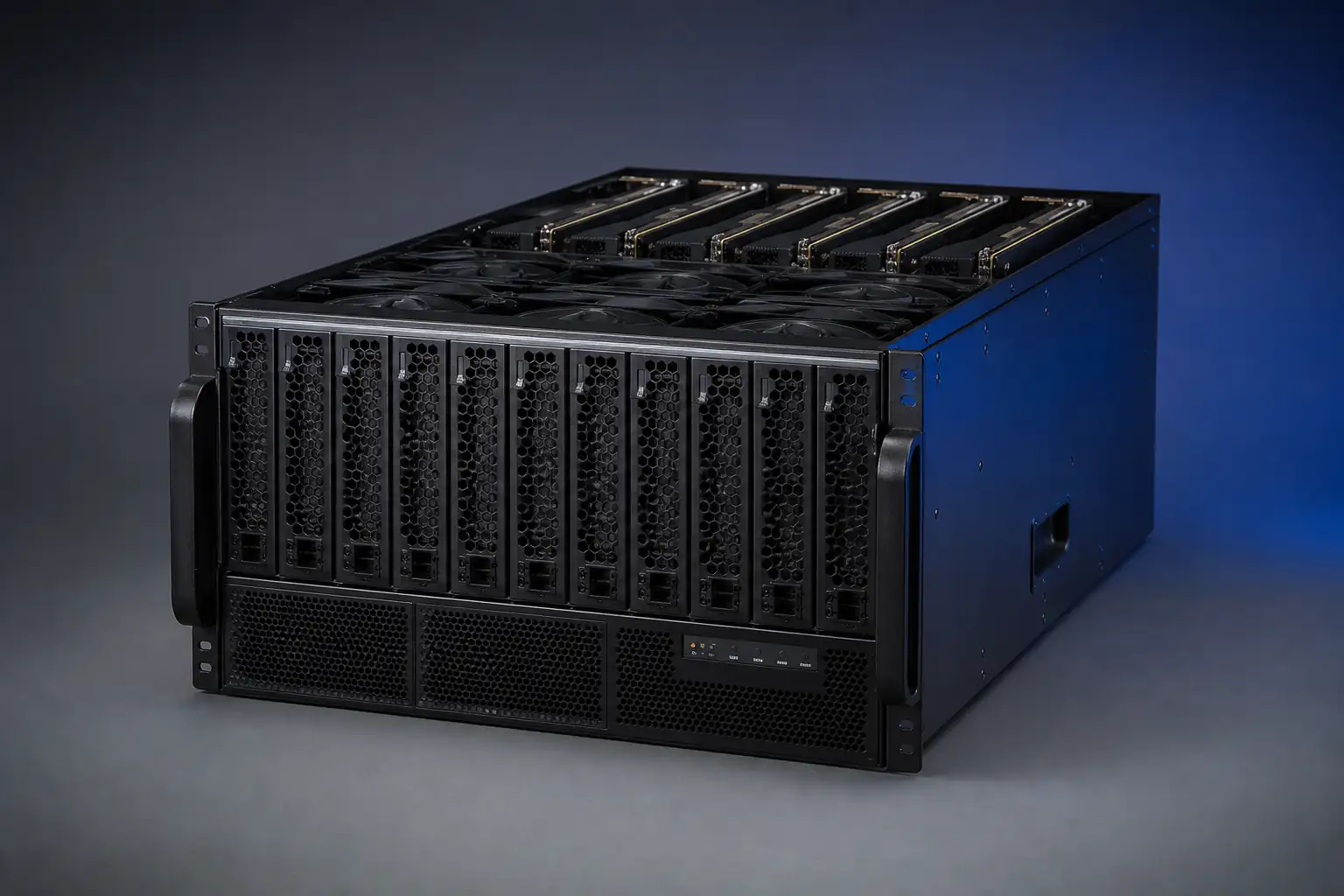

| Form Factor | 8U Rackmount
Enclosure: 437 x 355.6 x 843.28mm (17.2" x 14" x 33.2")
Package: 698 x 750 x 1300mm (27.5" x 29.5" x 51.2") |
Processor
| Dual Socket SP5
AMD EPYC™ 9004 Series Processors
Up to 128C/256T |

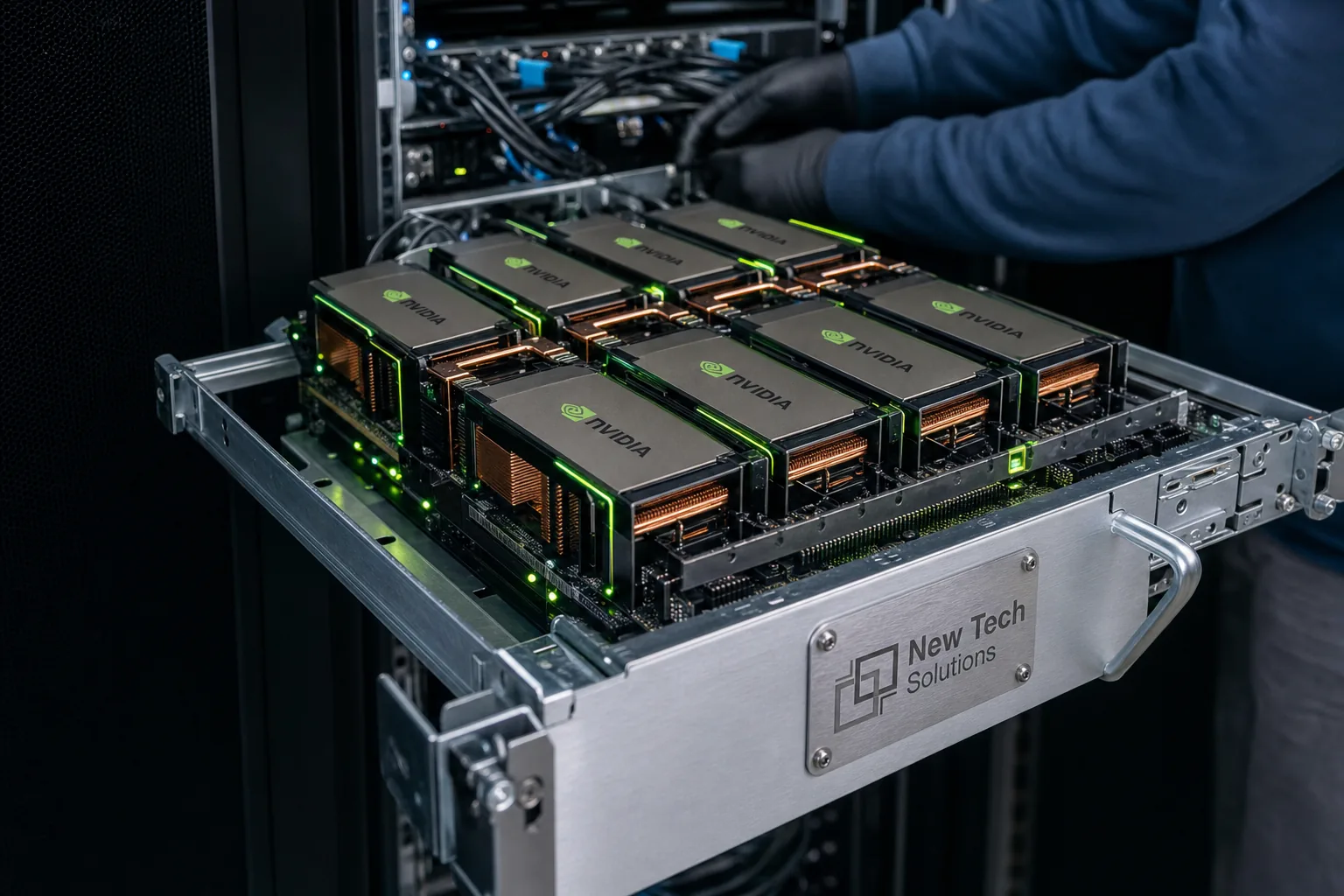

| GPU | Max GPU Count: 8 onboard GPUs
Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ |
System Memory
| Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 18 bays
2 front hot-swap 2.5" SATA drive bays
4 front hot-swap 2.5" NVMe* drive bays
12 front hot-swap 2.5" NVMe drive bays
(*NVMe support may require additional storage controller and/or cables)
M.2: 1 M.2 NVMe slot (M-key) |
| Expansion Slots | Default
8 PCIe 5.0 x16 LP slots
2 PCIe 5.0 x16 FHFL slots
Option A
8 PCIe 5.0 x16 LP slots
4 PCIe 5.0 x16 FHFL slots |
On-Board Devices
| AMD SP5
|
Input / Output
| 1 VGA port
|
Fans: Up to 10 heavy duty fans with optimal fan speed control
| 6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 32MB SPI Flash EEPROM
|
Management
| SuperCloud Composer®; Manager (SSM); Supermicro Update Manager(SUM);
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer
Automation Assistant (SAA) New!
|
PC Health Monitoring
| CPU: Monitors for CPU Cores, Chipset Voltages, Memory
7 +1 Phase-switching voltage regulator
FAN: Fans with tachometer monitoring
Status monitor for speed control
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
|
Dimensions and Weight
| Weight: Gross Weight: 225 lbs (102.1 kg)
Net Weight: 166 lbs (75.3 kg)
Available Color: Black front & silver body
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
