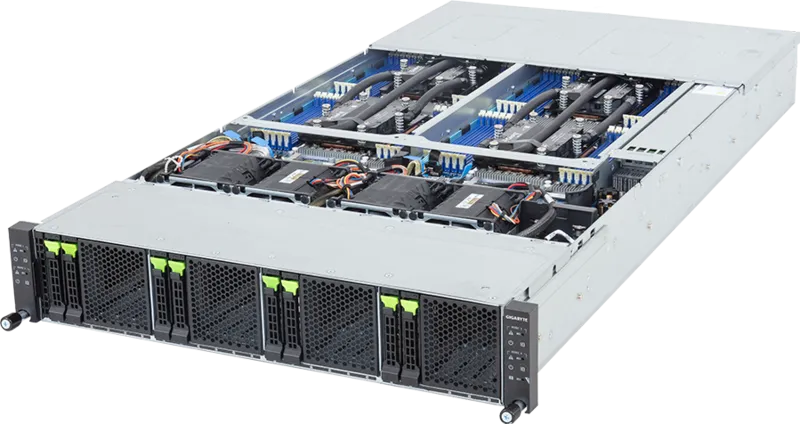

| Dimensions | 2U 4-Node - Rear access (W440 x H87.5 x D877 mm) |
Motherboard
| MZ83-HD2 |
| CPU | AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor per node, cTDP up to 500W |
Socket
| 8 x LGA 6096 (Socket SP5) |
| Chipset | System on Chip |
| Memory | 12-Channel DDR5 RDIMM, 96 x DIMMs
[EPYC 9005] Up to 6400 MT/s
[EPYC 9004] Up to 4800 MT/s |
LAN
| 8 x 1Gb/s LAN (4 x Intel I350-AM2), Support NCSI
4 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600 x 4
- 4 x Mini-DP
|
Storage
| Front hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4
Optional internal M.2:
4 x M.2 (2280/22110), PCIe Gen4 x4
SAS card is required to support SAS drives.
|
RAID
| Require RAID add-in cards
|
PCIe Expansion Slots
| 4 x LP PCIe Gen5 x16
4 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI
|
I/O Ports
| Front:
1 x CMC status LED, 1 x CMC reset button
Rear:
8 x USB 3.2 Gen1, 4 x Mini-DP, 8 x RJ45, 4 x MLAN
|
| Backplane Board | PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
| TPM | 4 x TPM headers (SPI), Optional TPM2.0 kit: CTM010 |
System Management
| ASPEED AST2600 Baseboard Management Controller
ASPEED AST2520 Chassis Management Controller
GIGABYTE Management Console web interface
|
System Fans
| 4 x 80x80x80mm (16,900rpm)
|
Operating Properties
| Operating: 10°C to 30°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
|
| Packaging Content | 1 x H273-Z85-LAZ1
4 x CoolIT CPU cold plate loops
1 x Mini-DP to D-Sub cable
1 x 3-Section Rail kit |
