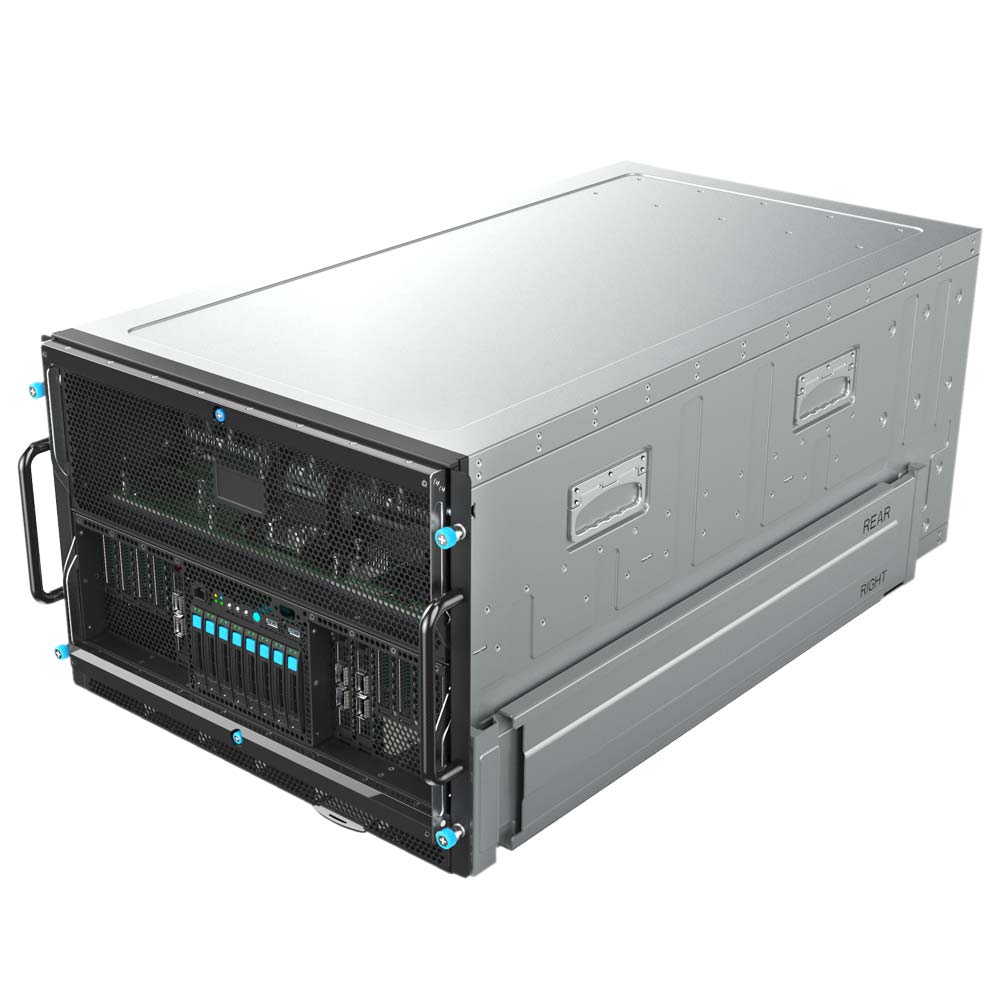

| Form Factor | 8U Rackmount |
Chassis Model
| UT85A |
| Dimension (D x W x H) | 33.46" x 17.63" x 13.82" (850 x 448 x 351mm) |
Motherboard Name
| G825Z5 # |
| Motherboard Notification | # The motherboard not sold separately |
| Gross Weight | 162 kg (357.15 lbs) |
Net weight
| 117.77 kg (259.65 lbs)
|
Board Dimension
| Prop. 16.85" x 14.76" (428 x 374.8mm)
|
| Front Panel | Buttons (1) PWR w/ LED / (1) UID / (1) RST
LEDs (1) PWR / (1) LAN / (1) System Event
I/O Ports (2) USB 3.0 ports + (1) RJ-45
|
| External Drive Bay | (8) 2.5" Hot-Swap SSDs Front Drive Bay Interface
(8) NVMe U.2
Front Drive Backplane Support -NVMe |
System Cooling Configuration
| Fan (15) 8cm fans
|
Power Supply
| Type RPSU
Input Range AC 200-240V/ 16A
Frequency 50-60 Hz
Output Watts 2,850Watts / AC 200-220V /16A / 3,150Watts / AC 220-230V /16A / 3,300Watts / AC 230-240V /16A
Efficiency 80 plus Titanium
Redundancy 4+2 ( AC 220~240V /16A) / 5+1 ( AC 200~220V /16A)
|
Processor
| Q'ty / Socket Type (2) AMD 9575F
Thermal Design Power Wattage Max up to 400W (TDP)
|
| Accelerator | Supported GPU Series (8) MI325X |
| Memory | Supported DIMM Qty (12)+(12) DIMM slots
DIMM Type / Speed AMD EPYC™ 9005: RDIMM: Up to 6400 MHz
Capacity Up to 6,144GB RDIMM DDR5 6400 memory
Memory channel 12 Channels per CPU
Memory voltage 1.1V |
| Expansion Slots | PCIe (4) PCIe Gen 5 x16 slots (FH/HL) / (8) PCIe Gen 5 x16 slots (HH/HL) |
| LAN | Q'ty / Port (1) GbE dedicated for IPMI
PHY Realtek RTL8211FD-CG |
Storage NVMe
| Connector (U.2) (4) SFF-TA-1016 (MCIO 8x) for (8) front NVMe
|
Graphic
| Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2600
|
| I/O Ports | USB (2) USB3.0 ports
VGA (1) D-Sub 15-pin port
RJ-45 (1) GbE port dedicated for IPMI
Button UID Button / Power Button / Reset Button
Others (1) UID LED / (1) PWR LED |
| TPM (Optional) | TPM Support Please refer to our TPM supported list.
Interface SPI |
| System Monitoring | Chipset Aspeed AST2600
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator |
| Server Management | Onboard Chipset Onboard Aspeed AST2600
AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS | Brand / ROM size AMI / 32MB
Feature Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.7/PnP/Wake on LAN / ACPI 6.5 / ACPI sleeping states S0, S5 |
| Operating Environment | Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C |
| Regulation | FCC (SDoC) Class A
CE (DoC) Class A
CB/LVD Yes
RCM Yes
VCCI Yes
BSMI Yes
REACH Yes
NRTL Yes
IC (SDoC) Yes |
| Operating System | OS supported list Please refer to our AVL support lists. |
| RoHS | RoHS 2.0 Yes |
| Package Contains | Barebone (1) G8825Z5 Barebone
Manual (1) Quick Installation Guide
Others (8) MI325X |
