| Dimensions | 1U (W438 x H43.5 x D815 mm) |
Motherboard
| MSG3-GU0 |
| CPU | 5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
Single processor, TDP up to 350W |
Socket
| 1 x LGA 4677 |
| Chipset | Intel C741 |
| Memory | 8-Channel DDR5 RDIMM, 16 x DIMMs
[5th Gen Intel Xeon] Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
[4th Gen Intel Xeon] Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[Intel Xeon Max Series] Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
LAN
| 1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600
- 1 x Mini-DP
|
Storage
| Front hot-swap:
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4
SAS card is required to support SAS drives.
|
RAID
| Intel SATA RAID 0/1/10/5
Onboard VROC key header
|
PCIe Expansion
Slots
| 1 x FHFL PCIe Gen5 x16, for GPUs
1 x FHFL PCIe Gen5 x16
1 x FHHL PCIe Gen5 x16
1 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI
|
I/O Ports
| Front:
2 x USB 3.2 Gen1
Rear:
2 x USB 3.2 Gen1, 1 x Mini-DP, 1 x MLAN
|
Backplane Board
| PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
|
TPM
| 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
Power Supply
| 1+1 1300W 80 PLUS Platinum redundant power supplies
AC Input: 100-240V
|
| System Fans | 8 x 40x40x56mm |
Operating
Properties | Operating: 10°C to 35°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
Packaging

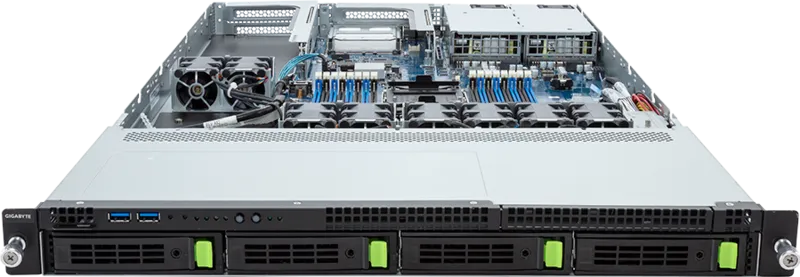

Content | 1 x R163-SG0-AAC1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (16-pin, 400mm)
3 x Carriers
1 x 2-Section Rail kit |
