| Main Specifications |
| Processor Support | Intel Xeon 6 processors (formerly codenamed Sierra Forest and Granite Rapids)
Intel Xeon 6700 series processors with E-cores
Upcoming Intel Xeon 6 Processors with P-Cores |
| Memory | 32x DDR5 DIMM slots, up to 6400/5200 MHz(1DPC/2DPC)/8000 MHz(1DPC, MCR)
(8-channel per CPU, 16 DIMM per CPU)
Maximum up to 4TB
DDR5 6400/5600 RDIMM 128GB, 96GB, 64GB |
| Expansion Slots | Up to 10 PCIe slots
6 x PCIE Gen5 x8 link or 3 x PCIE
Gen5 x16 link (FHFL)
2 x PCIE Gen5 x16 link (FHHL)
2 x OCP3.0 slot |
| SATA Controller | 2 x M.2 connector (PCI-E Gen2 x2 link)
Optional kits:
ASUS PIKE II 3008-8i/3108-8i
Broadcom HBA CARD 9500-16I
Broadcom MegaRAID 9540-8i
Broadcom MegaRAID 9560-16i
Broadcom MegaRAID 9670W-24i
Broadcom MegaRAID 9670W-16i |
| SAS Controller | ASUS PIKE II 3008-8i/3108-8i
Broadcom HBA CARD 9500-16I
Broadcom MegaRAID 9540-8i
Broadcom MegaRAID 9560-16i
Broadcom MegaRAID 9670W-24i
Broadcom MegaRAID 9670W-16i |

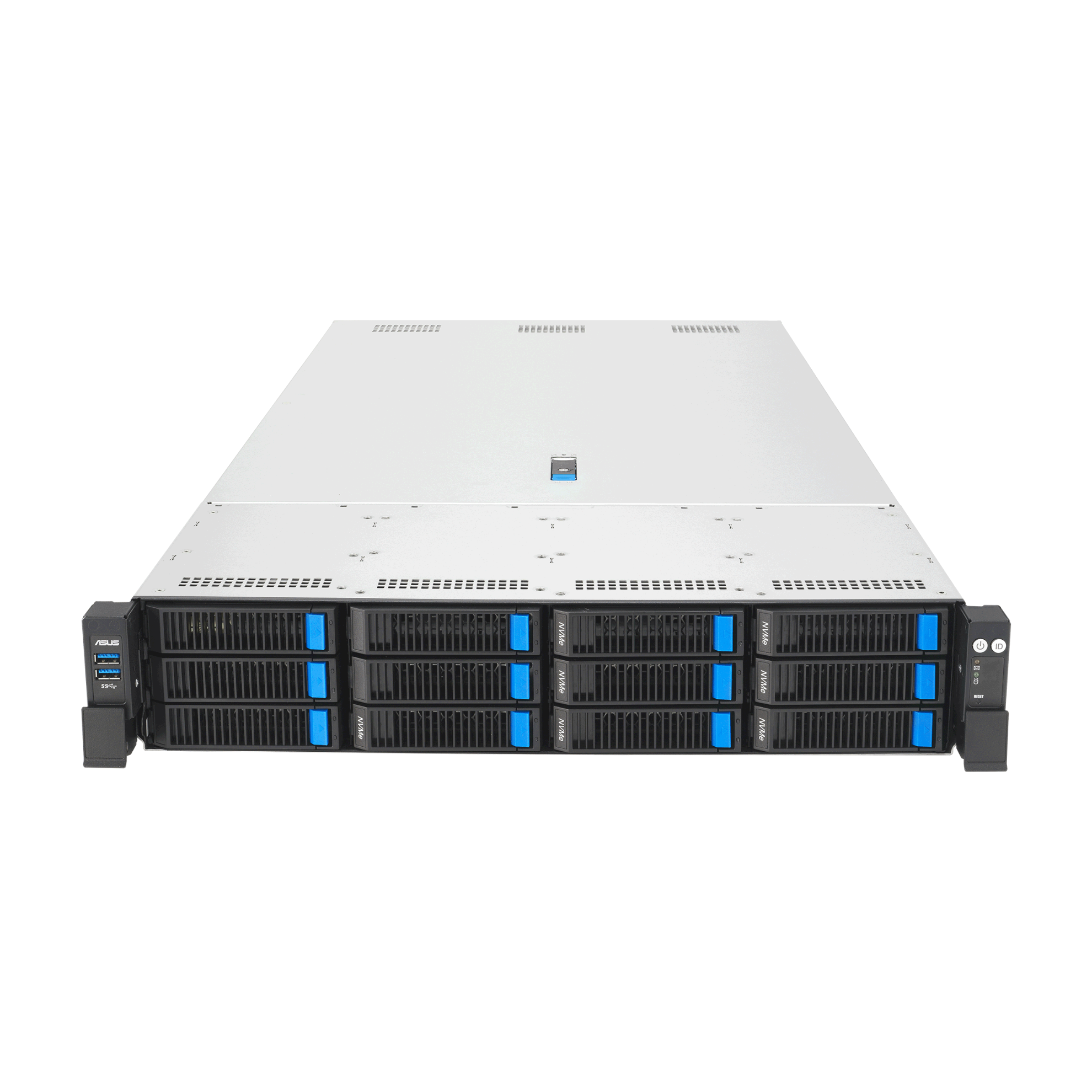

| Storage Bays | 12x 3.5” hot-swap drive bays
Support 12x
NVMe/SATA**/SAS** |
| Networking | 1 x Management Port |
| Graphic | Aspeed AST2600 64MB |
| Front I/O Ports | 2 x USB 3.2 Gen1 ports |
| Rear I/O Ports | 2 x USB 3.2 Gen1 ports
1 x Mini-DP port
1 x RJ-45 Mgmt. LAN port
1 x Type C port |
| Switch/LED | Rear Switch/LED:
1 x Power switch
1 x Location switch/LED
1 x Q-Code/Port 80 LED
Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x Message LED, LAN 1-4 LED (on NIC module)** |
| Management Solution | On-Board ASM12-iKVM for KVM-over-IP |
| Dimension | 2U, 449 (W) x 88 (H) x 830 (D) mm
17.68 (W) x 3.5 (H) x 32.7 (D) inches |
| Power Supply | 1+1 Redundant 80 PLUS 3200W/2700W Titanium PSU |
