| Main Specifications |
| Processor Support | 2 x AMD 9005 processors
(Air-cooled w/ 2U EVAC HS up to TDP 400W)
*TDP support by configuration. |
| Core Logic | (INTEGRATED I/O – NO CHIPSET) |
| Memory | 24x DDR5 DIMM slots, up to 6000MHz(1DPC)
(12-channel per CPU, 12 DIMM per CPU)
Maximum up to 3TB
DDR5 6400/5600 RDIMM 128GB, 96GB, 64GB |
| Expansion Slots | Total 10 Expansion slots
6 x PCIe Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
2 x PCIe Gen5 x16 (FHHL)
2 x OCP3.0 Gen5 x16 |
| SATA Controller | 2 x DIMM.2 Gen3 x4 (22110, 2280, 2260)
Optional kits:
Broadcom HBA CARD 9500-16I
Broadcom Mega RAID CARD 95XX series |
| SAS Controller | Optional kits:
Broadcom HBA CARD 9500-16I
Broadcom Mega RAID CARD 95XX series |

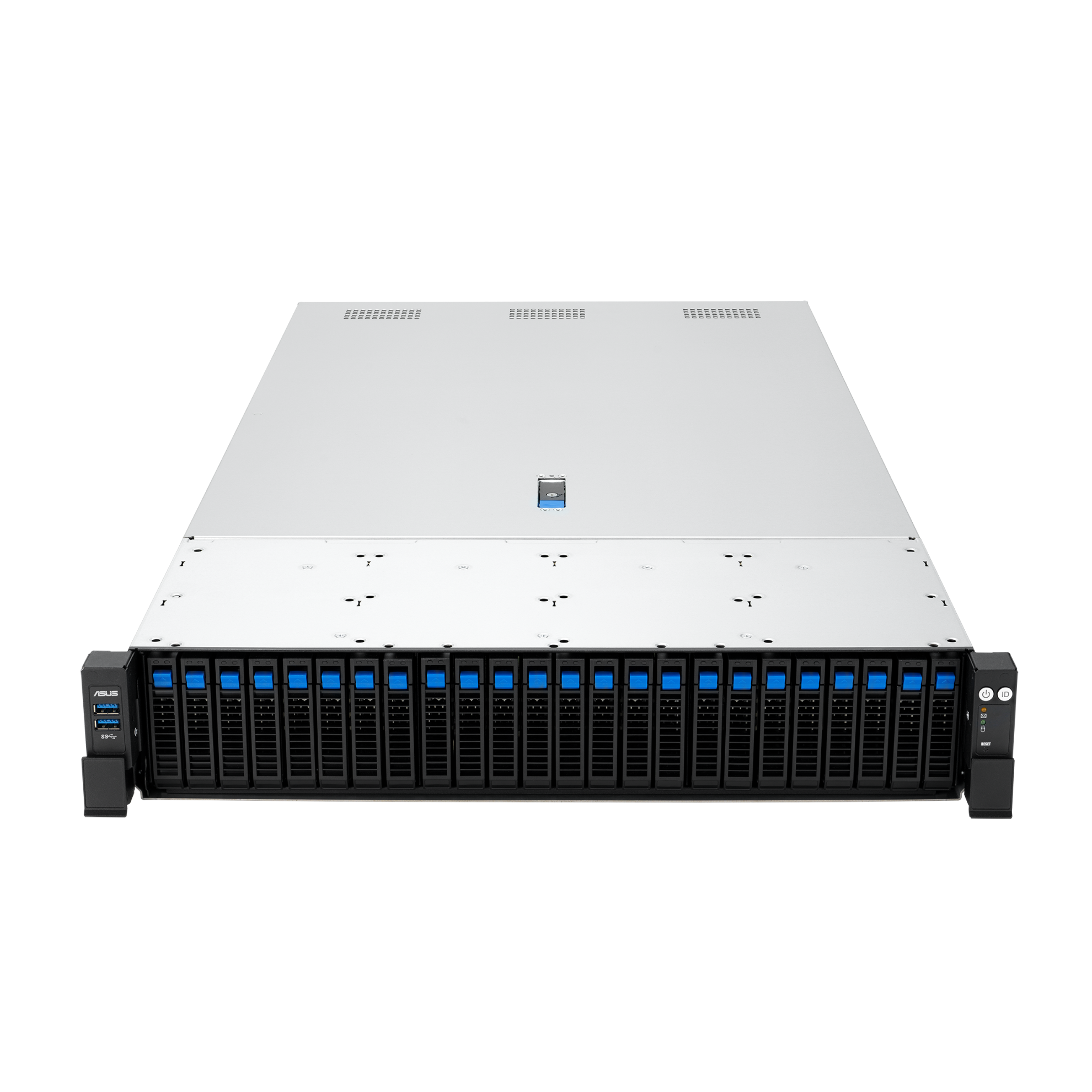

| Storage Bays | 24 x 2.5" hot-swap drive bays
Support up to 8NVMe + 16NVMe/SATA/SAS*
*HBA/ RAID card is required to support SAS hard drives |
| Networking | 1 x Management Port |
| Graphic | Graphic |
| Front I/O Ports | 2 x USB 3.2 Gen1 ports |
| Rear I/O Ports | 2 x USB 3.2 Gen1 ports
1 x Mini-DP port
1 x RJ-45 Mgmt. LAN port
1 x Debug port |
| Switch/LED | Rear Switch/LED:
1 x Power switch
1 x Location switch/LED
Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x Message LED |
| Out of Band Remote Management | On-Board ASM12-iKVM for KVM-over-IP |
| Dimension | 2U, 449 (W) x 88 (H) x 830 (D) mm
17.68 (W) x 3.5 (H) x 32.7 (D) inches |
| Net Weight Kg (CPU, DRAM & HDD not included) | 17.82 |
| Power Supply | 1+1 Redundant 80 PLUS 3200W/2700W Titanium PSU |
| Environment | Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non condensing) |
