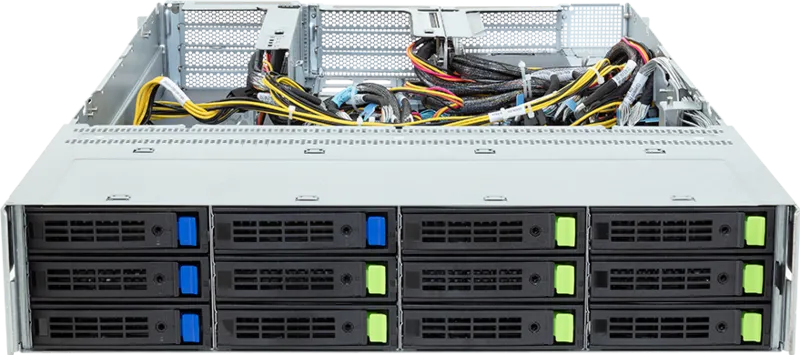

| Dimensions | 2U (W438 x H87.5 x D815 mm) |
Motherboard
| MZF3-GP0 |
| CPU | AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W |
Socket
| 2 x LGA 6096 (Socket SP5) |
| Chipset | System on Chip |
| Memory | 12-Channel DDR5 RDIMM, 24 x DIMMs
Up to 4800 MT/s |
LAN
| 1 x 10/100/1000 Mbps Management LAN
|
Video
| Integrated in ASPEED AST2600
- 1 x Mini-DP
|
Storage
| Bottom:
8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
4 x 3.5"/2.5" SATA/SAS-4
SAS card is required to support SAS drives
|
RAID
| Require RAID add-in cards
|
PCIe Expansion
Slots
| 4 x FHFL PCIe Gen5 x16, for GPUs
1 x FHHL PCIe Gen5 x16
1 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI
|
I/O Ports
| Top:
2 x USB 3.2 Gen1, 1 x Mini-DP, 1 x MLAN
|
Backplane Board
| PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
|
TPM
| 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
|
Power Supply
| Dual 2700W 80 PLUS Titanium redundant power supply
AC Input: 100-240V
*The system power supply requires C19 power cord.
|
Operating
Properties | Operating coolant temperature: 25°C to 35°C
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
| Packaging Content | 1 x R283-ZF0-IAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 150mm)
1 x GPU power cable (12VHPWR, 250mm)
1 x GPU power cable (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 550mm) |
