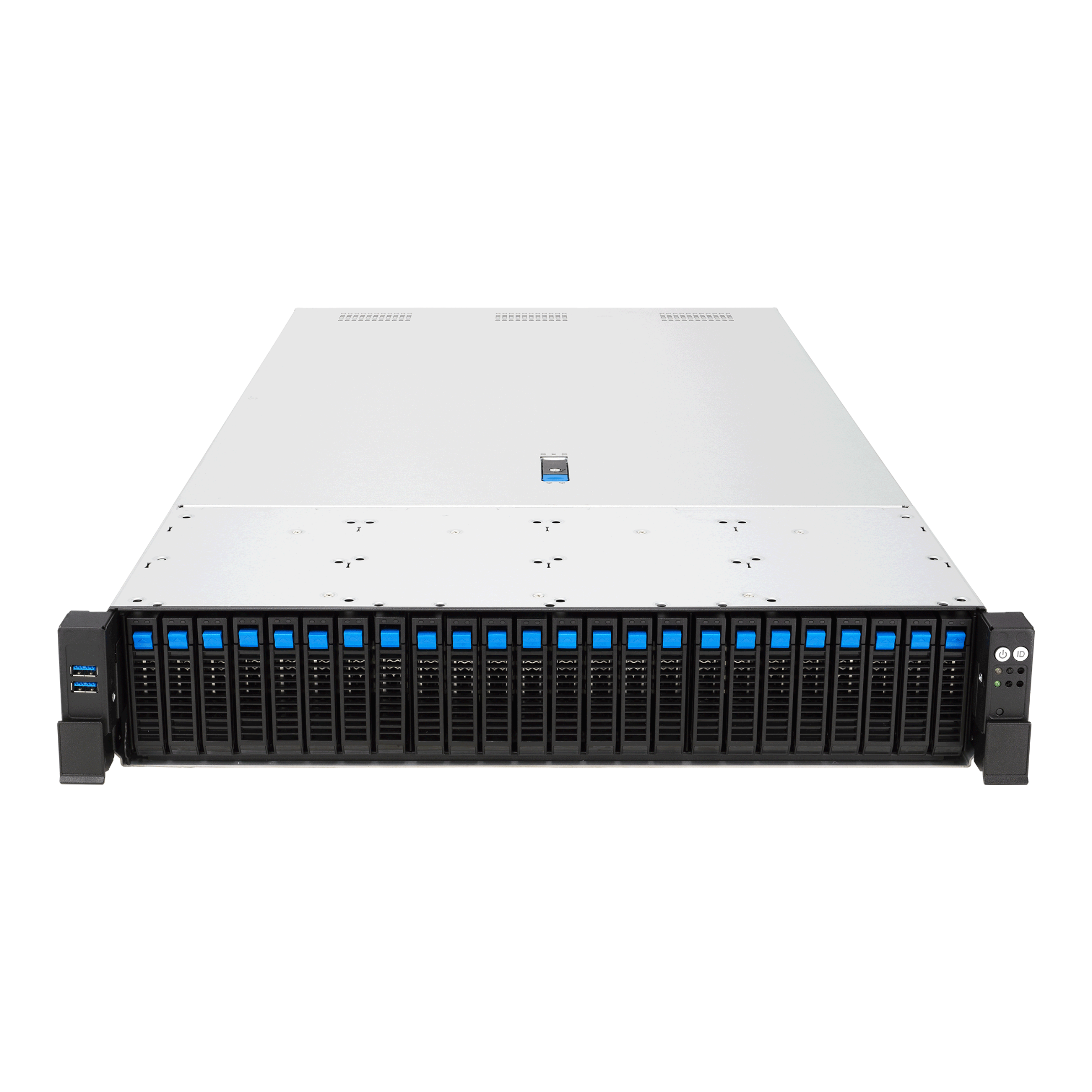

NTS Elite Command 2U Rack Server with Dual Intel Xeon Scalable Processors for Enterprise Storage & Data Centers

Part#: CMDI032U24

Dual Intel Xeon Scalable Processors (3rd Gen)
Supports high-core-count CPUs for enterprise workloads and virtualization.
2U Rack Server Design
Space-efficient form factor ideal for data centers and high-density deployments.
Up to 32 DIMM Slots (DDR4 Memory)
Supports large memory capacity for heavy applications like AI, HPC, and databases.
Flexible Storage Options
Supports multiple NVMe, SATA, and SAS drives for high-speed and scalable storage.
Optimized GPU Support
Designed to support multiple GPUs for AI, rendering, and compute-intensive tasks.
Advanced Cooling & Thermal Design
Efficient airflow and fan system ensure stable performance under heavy loads.
High-Speed Networking Options
Multiple PCIe slots enable integration of high-bandwidth network cards.
Enterprise Management & Security
Includes ASUS ASMB management (IPMI), remote control, and hardware-level security features.

Main Specifications
Processor Support	Intel Xeon 6 processors (formerly codenamed Sierra Forest and Granite Rapids) Intel Xeon 6700 series processors with E-cores Upcoming Intel Xeon 6 Processors with P-Cores
Memory	32x DDR5 DIMM slots, up to 6400/5200 MHz(1DPC/2DPC)/8000 MHz(1DPC, MCR) (8-channel per CPU, 16 DIMM per CPU) Maximum up to 4TB DDR5 6400/5600 RDIMM 128GB, 96GB, 64GB
Expansion Slots	Up to 10 PCIe slots 6 x PCIE Gen5 x8 link or 3 x PCIE Gen5 x16 link (FHFL) 2 x PCIE Gen5 x16 link (FHHL) 2 x OCP3.0 slot maximum support 3 doublewide GPU
SATA Controller	2 x M.2 connector (PCI-E Gen2 x2 link) Optional kits: ASUS PIKE II 3008-8i/3108-8i Broadcom HBA CARD 9500-16I Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i Broadcom MegaRAID 9670W-24i Broadcom MegaRAID 9670W-16i
SAS Controller	Broadcom HBA CARD 9500-16I Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i Broadcom MegaRAID 9670W-24i Broadcom MegaRAID 9670W-16i
Storage Bays	24x 2.5” hot-swap drive bays Support 8x NVMe/SATA/SAS
Networking	1 x Management Port
Graphic	Aspeed AST2600 64MB
Front I/O Ports	2 x USB 3.2 Gen1 ports
Rear I/O Ports	2 x USB 3.2 Gen1 ports 1 x Mini-DP port 1 x RJ-45 Mgmt. LAN port 1 x Type C port
Switch/LED	Rear Switch/LED: 1 x Power switch 1 x Location switch/LED 1 x Q-Code/Port 80 LED Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x Message LED, LAN 1-4 LED (on NIC module)
Out of Band Remote Management	On-Board ASM12-iKVM for KVM-over-IP
Dimension	2U, 449 (W) x 88 (H) x 830 (D) mm 17.68 (W) x 3.5 (H) x 32.7 (D) inches
Net Weight Kg (CPU, DRAM & HDD not included)	18.195 Kg
Gross Weight Kg (CPU, DRAM & HDD not included, Packing included)	28.855 Kg
Power Supply	1+1 Redundant 80 PLUS 3200W/2700W Titanium PSU

OPERATING SYSTEM

No Operating System
Rocky Linux 8 [+$49.00]
Rocky Linux 9 [+$49.00]
Ubuntu 24.04 LTS [+$49.00]

NTS AI Stack See what's inside each NTS AI package

No NTS AI Stack
NTS AI Stack - LaunchPad
NTS AI Stack - FlexBox
NTS AI Stack - ForgeKit
Other Software Requests - If you require specific software such as AMBER, RELION for cryo-EM, Schrödinger, NVIDIA AI Enterprise, or any other specialized tools, please include your request in the notes section. Our engineering team will assist with optimization and provide a tailored quote.
Please provide details:

Call for pricing
