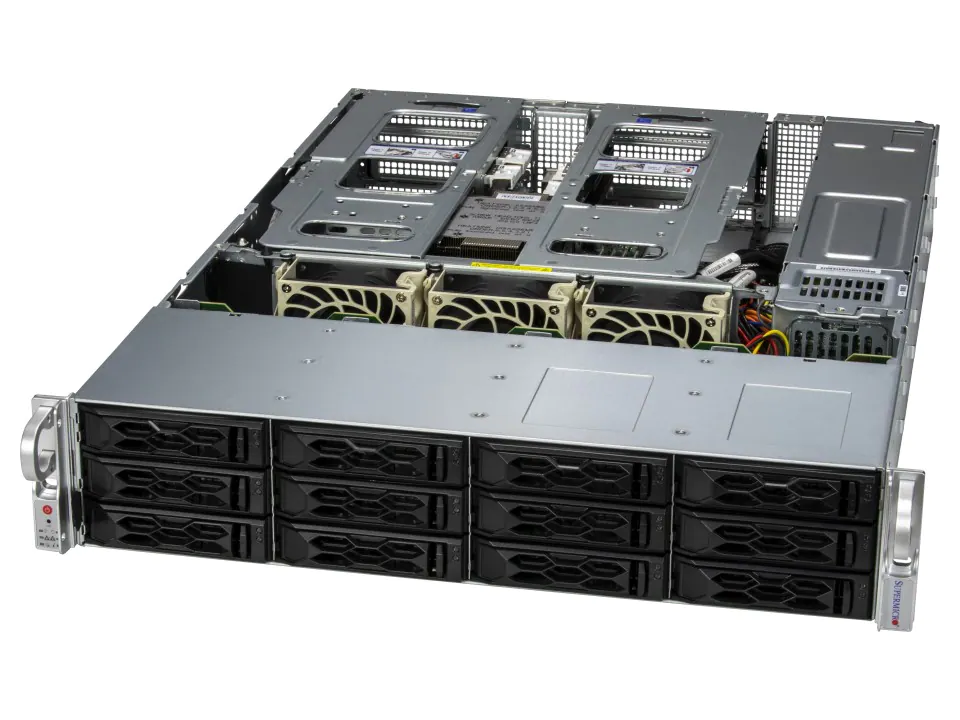

| Form Factor | 2U Rackmount
Enclosure: 437 x 89 x 648mm (17.2" x 3.5" x 25.5")
Package: 679 x 296 x 876mm (26.7" x 11.4" x 34.5") |
Processor
| Single processor(s)
AMD EPYC™ 9004/9005 Series Processors
(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Up to 160C/320T |
| GPU | Max GPU Count: Up to 2 double-width or 4 single-width GPUs
Supported GPU: NVIDIA PCIe: L40, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A40, A30, A16, A2, A100
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: PCIe |
System Memory
| Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB
R1.x/R2.0/R2.01)
Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01) |
| Drive Bays Configuration | Default: Total 12 bays
12 front hot-swap 3.5"/2.5" SATA drive bays
Option A: Total 4 bays
4 front hot-swap 2.5" PCIe 5.0 NVMe* drive bays
Option B: Total 12 bays
12 front hot-swap 3.5"/2.5" SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for
details)
M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default
2 PCIe 5.0 x16 FHFL slots
2 PCIe 5.0 x16 FHHL slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A*
2 PCIe 5.0 x8 FHFL slots |
On-Board Devices
| Chipset: System on Chip
Network Connectivity: Via AIOM
|
Input / Output
| LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.0 ports(rear)
Video: 1 VGA port
Serial: 1 COM port(rear)
TPM: 1 TPM header |
System Cooling
| Fans: Up to 3x 8cm heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud
|
Power Supply
| 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
|
System BIOS
| BIOS Type: AMI 32MB SPI Flash ROM
BIOS Features: ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
|
Management
| SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro
SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); OOB Management
Package (SFT-OOB-LIC ); SuperServer Automation Assistant (SAA) New!
|
PC Health Monitoring
| FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU
thermal trip support
|
Dimensions and Weight
| Weight: Gross Weight: 59 lbs (26.76 kg)
Net Weight: 33 lbs (15 kg)
Available Color: Black front & sliver body
|
Operating Environment
| Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
